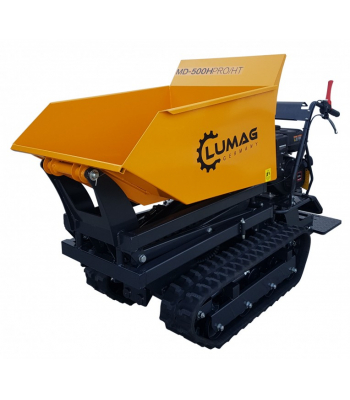

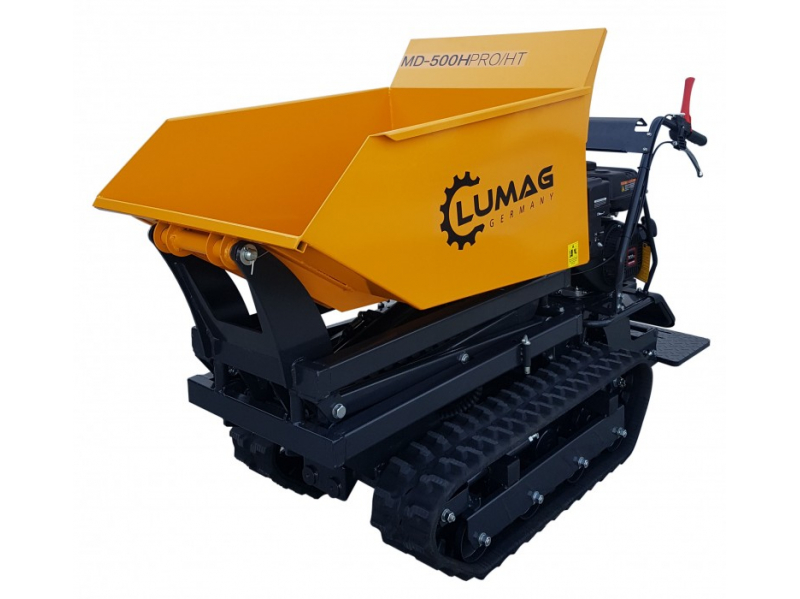

3499.99 2024-12-24Lumag MD500H PRO HT 500kg Petrol High Tip Mini Dumper with Hydraulic Tip.

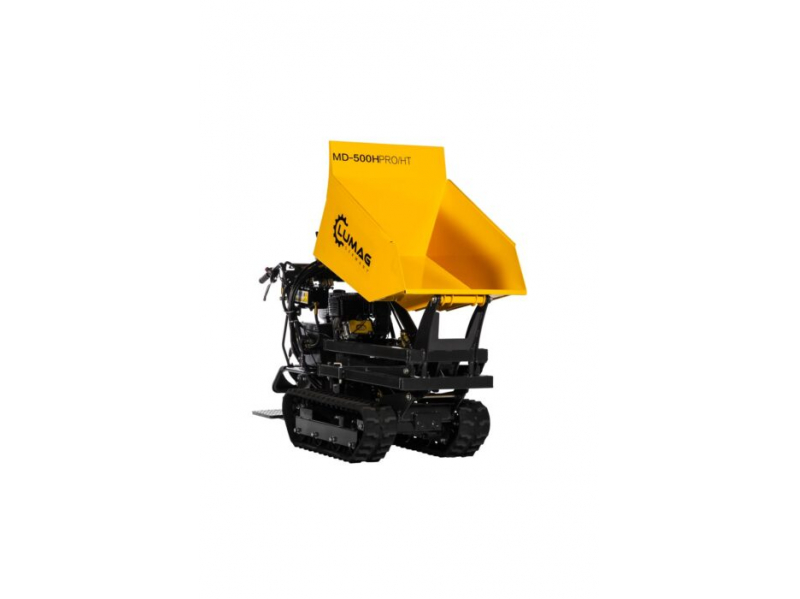

The Lumag MD500H PRO HT mini dumper is based on the original Lumag MD500H Pro configuration . It offers the same reliable, easy starting Loncin engine and simple drive system but with a ?dumper style? tipping butt that is more suited for shifting sand, soils etc. Tipping is fully mechanized by the hydraulic ram. The machine is still only 700mm wide and great to get in those hard to reach areas.

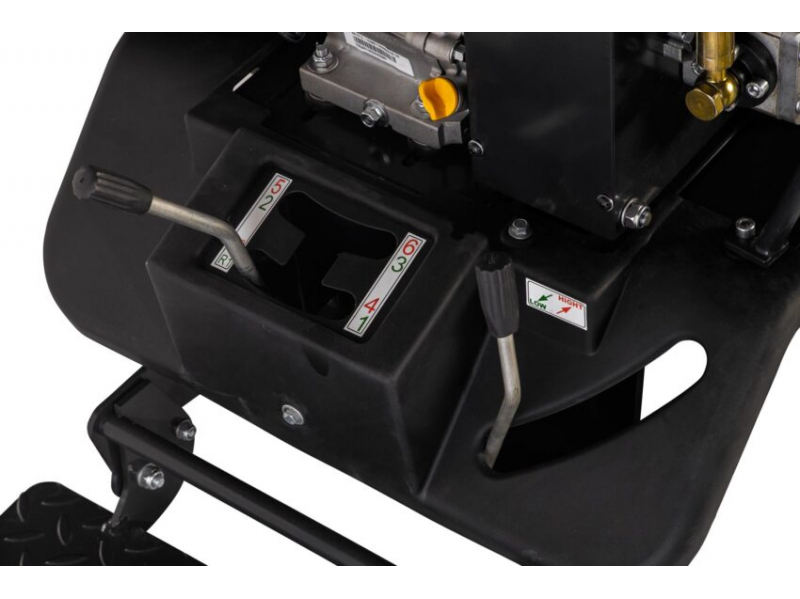

The new Pro model now has an innovative Japanese gearbox making a huge difference in usability and efficiency. The chassis has been further improved increasing ground clearance and off-road ability.

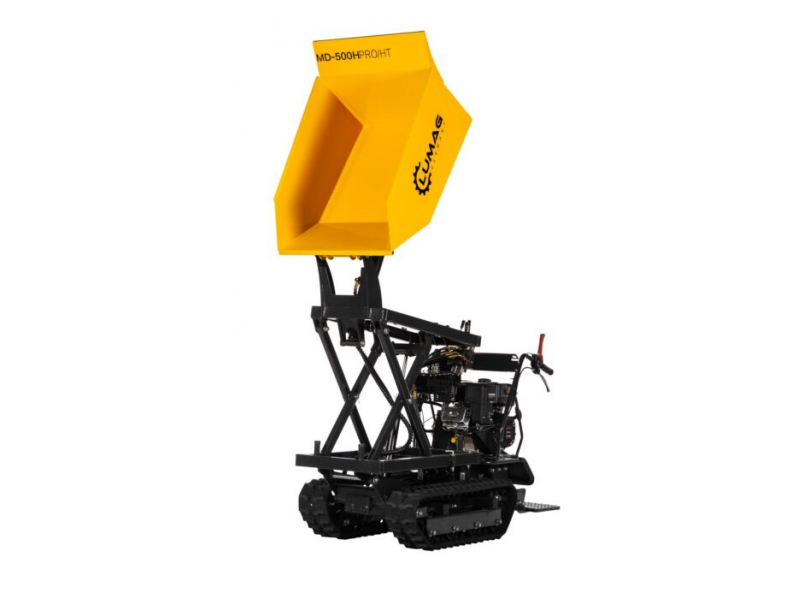

The HT model is fitted with the High tip devise idel for loading skips and pickups. The machines come with a free stand plate fitted! (can be removed to increase ground clearance)
| engine | 1-cylinder 4-stroke OHV LONCIN engine |
| Displacement | 302 cc |
| power | 6.8 kW |
| Operating speed | 3,600 rpm |
| Starting device | Reversing starter |
| drive | Gear transmission |
| steering | Steering brake |
| Tilting device | Hydraulic, tiltable forwards |
| Tipping height / inclination | 1406 mm / 90 ° |
| Tilting container (LxWxH) | 950 x 700 x 450 mm |
| Weight (net / gross) | 349 / 395.5 kg |
| Ground clearance | 120 mm |
| Load max. | 500 kg |
| Capacity | 212 l |
| hydraulic pump | 12l / min (at 3,000 rpm) |
| Working pressure max. | 200 bar |
| Transmission forward / reverse gears | 6/2 |
| Dimensions (LxWxH) | 1816 x 714 x 1259 mm |
Brand: Lumag
Identifier: MD500HPROHT
Brand new packaged items only.
Comes with a full manufacturer warranty (not including consumable products).
Please make use of any product reviews or youtube clips we have available to learn more about the item.
This item is usually delivered within 3 working day(s).
SSL Certified Secure website to ensure secure online ordering.
Please return the item/s if not suitable for a full refund (within 7 working days of receipt).
We guarantee security of all your personal details, we do not pass on any customer information.
Accept all payment methods including all major Credit Cards, Paypal and Amazon Payments.
Order online now using our Secure SSL Certified Secure website.
Add this product to your basket and come back at any time to complete the order.
Order by phone on 01737783101.
Order with an official purchase order by emailing sales@sitebox.ltd.uk. We will check your account status or if you do not hold an account we will credit check your organisation, confirm and process your order. Please note the first order(s) will always need to be paid upfront unless you are a government linked organisation. Goods remain the property of Sitebox Ltd until paid for in full as per our full terms and conditions.
The Lumag MD500H mini dumper is based on the original Lumag MD500 chassis. It offers the same reliable, easy starting Loncin engine and simple drive system but with a dumper st... read on
The Lumag MD500 mini dumper is a handy little dumper that takes the back ache out of a huge variety of material handling tasks. Whether it's moving paving stones to a patio at th... read on
The Lumag MD500H PRO mini dumper is based on the original Lumag MD500H configuration . It offers the same reliable, easy starting Loncin engine and simple drive system but with a... read on
Lumag MD500H PROGX 500kg Petrol Mini Dumper with Hydraulic Tip with Honda GX270 Engine The Lumag MD500H PROGX mini dumper is based on the original Lumag MD500H configuration . It ... read on
