Lumag RP700PROGX 10.5 KN 14″ Honda Engine Petrol Compactor Plate

Lumag RP700PROGX 10.5 KN 14″ Honda Engine Petrol Compactor Plate

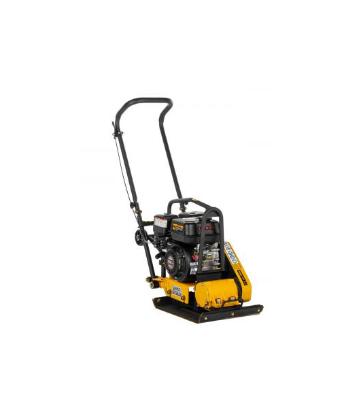

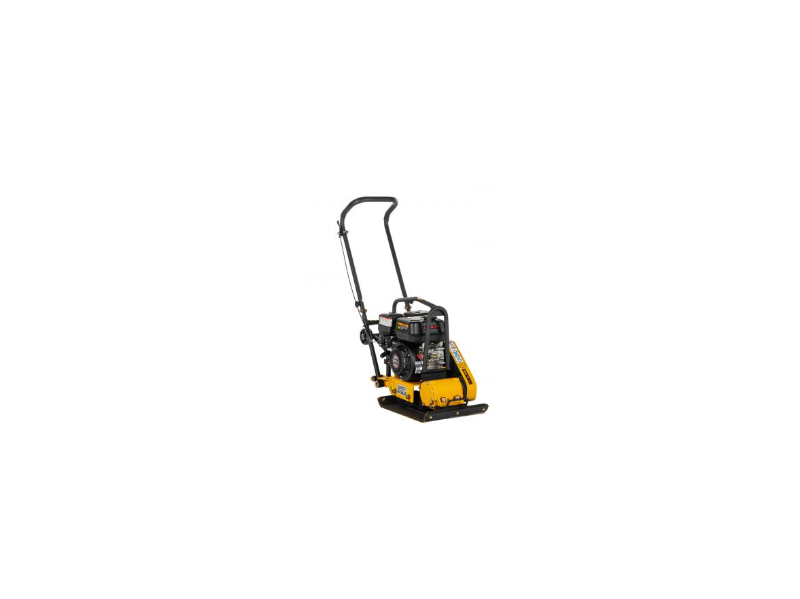

The Lumag RP700Pro Compactor Plate is the top seller in Lumags range. It is in the very popular 14″ (350mm) Width bracket. At 75kg and 11KN of compaction force in weight deals with the most common whacking tasks very well.

You will need to purchase the  Lumag RP700Pro Compactor transport wheels and rubber mat separately.

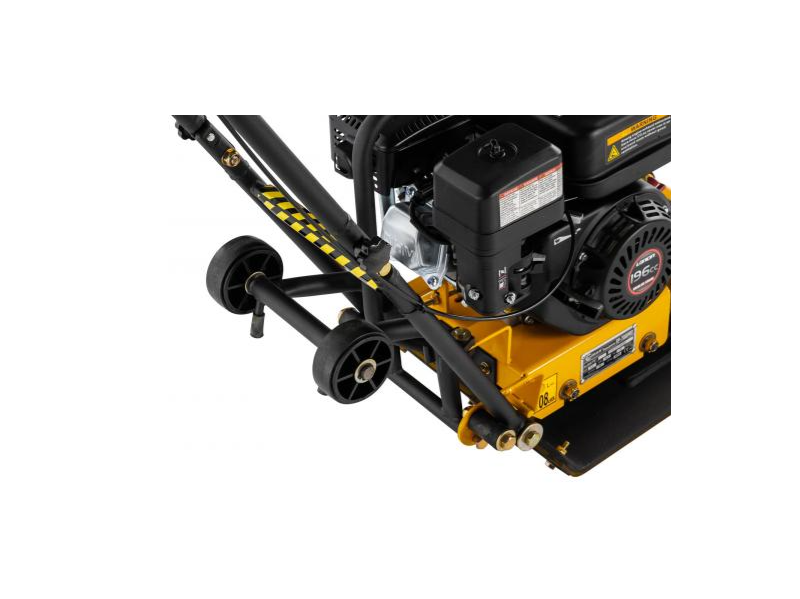

The Lumag RP700Pro Wacker plates transport wheels are designed to clip up underneath the handles when not in use, by the simple actions of tilting your wacker forward onto its nose you can unclip the wheels and fold them under the base plate to easily transport your compactor plate around.

The wacker plates rubber mat is made with a durable polyurethane hard-wearing but soft enough to protect the block paves you are working on.

The Lumag RP700Pro wacker plate compactor is powered by the excellent Loncin G200 196cc petrol engine. In our opinion, this engine is of a comparable standard to the Honda GX200, with unrivaled reliability, Fuel effective, durability and very easy to start. As of 2019, the wacker plates engine meets the new EURO V emissions regulations.

The engine is controlled by a remote throttle with the thumb throttle being mounted upon the handles rather than down on the side of the engine. The wacker plates Power is then transmitted to the vibration shaft via a robustly made centrifugal clutch and thick rubber drive belt.

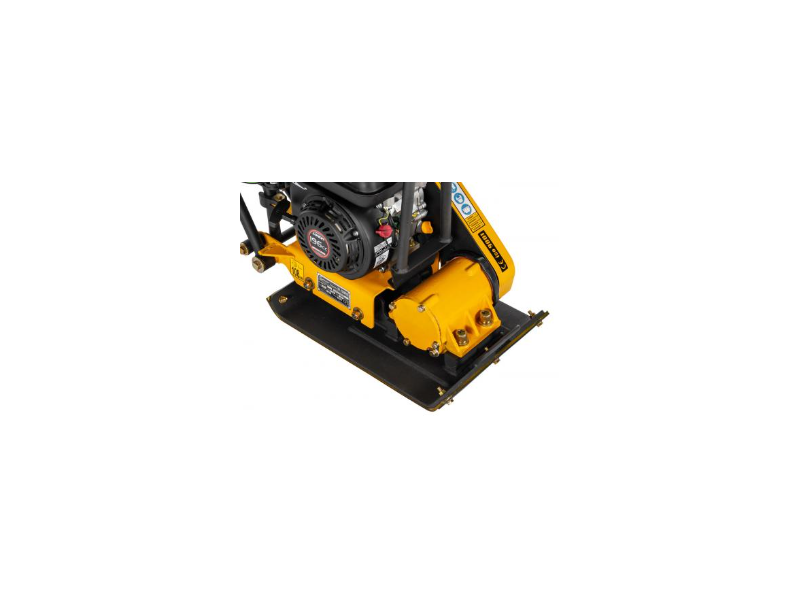

The wacker plates vibration shaft spins at 1000s of revolutions per minute transmitting the force to the thick steel base plate compacting the ground with more than a ton of force.

The Lumag RP700Pro wacker plate compactors handles have fitted a foam covering for operator comfort, the handles can be easily folded in two allowing the compactor to be stored in a space a little over 35 x 80 x 70 cm

The wacker plates are fitted with a protective steel frame designed both to protect the engine and provide a safe lifting point, for loading / unloading your wacker plate.

Equipment features:

- The forward running vibration plate is particularly suitable for paving work, repair work in pathways, gardening and landscaping.
- Ideal for vibrating in composite pavement.
- Foldable handle - compact and very easy to use.
- Protective grille on the exhaust, handle dampened against vibrations.
- Equipped with fully protected V-belt and protective frame.

Purchase separately accessories to complete the compactor plate:

- Rubber mat, transparent (Art. No. 5TGRP75, EAN: 40 47424 00299 5)
- Trolley (Art. No. 5RRP75, EAN: 40 47424 00300 8)
