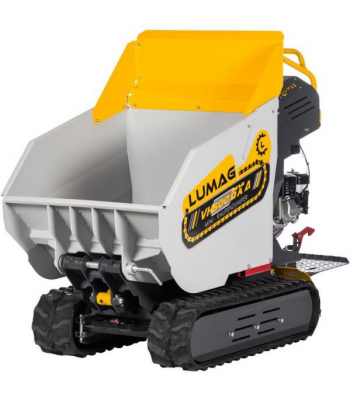

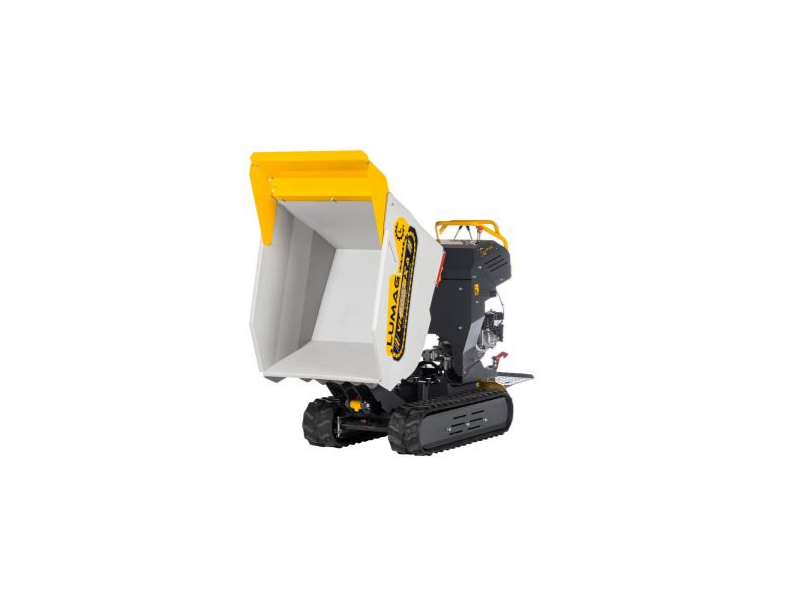

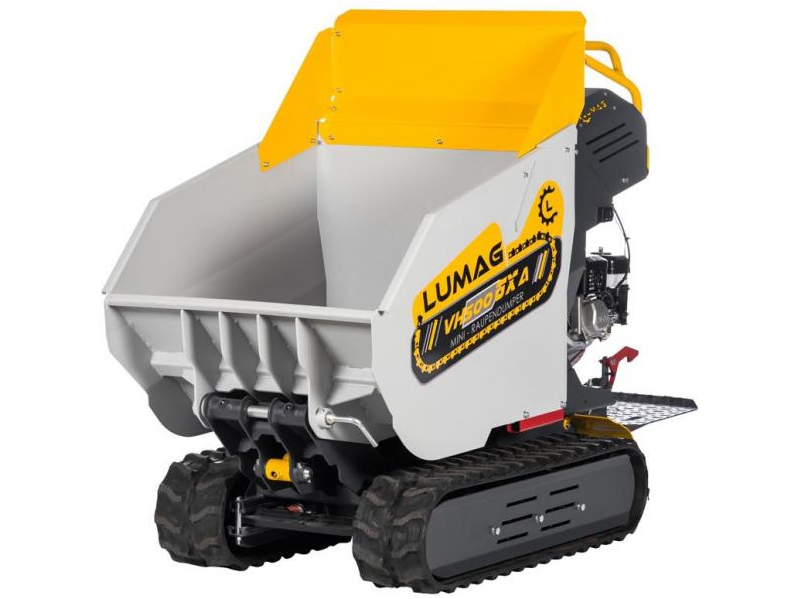

Lumag VH500A 500kg Track Barrow with Petrol Loncin Engine and Hydraulic Tip

The Lumag VH500A track barrow is the entry-level hire quality track barrow. Fully hydrostatic, robustly made machine. This machine was made with durability and ease of use in mind. It is propelled by a top of the range hydraulic pump. This machine will offer years of great service.

*Delivered fully assembled & ready to use*

Equipment features:

– As the perfect helper for all transport work, the fully hydraulic VH-500A models provide valuable services in many industries for a wide variety of activities.
– The VH-500A easily transports loads of up to 500 kg.
– Bulk and piece goods are emptied using a hydraulic tipping skip.
– Good grip thanks to rubber chains on slippery, smooth and muddy surfaces.
– An extremely narrow design and compact dimensions bring the VH-500A models safely to the place of use even through narrow gates and paths.
– The massive steel construction and the powerful double hydraulic pump in combination with the simple, intuitive control and the operating platform make the VH-500A models the ideal helper.

Specifications:

engine 1-cylinder 4-stroke OHV LONCIN engine
Displacement 252 cc
power 5.2 kW
Max. Speed 3,600 rpm
Starting device Reversing starter
own weight 310 kg
drive hydraulic

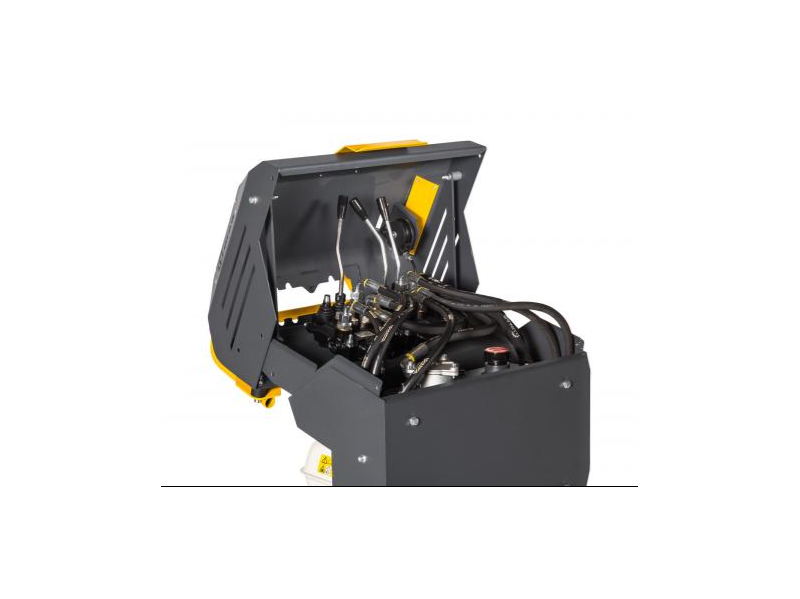

steering Fully hydraulic / control valve
Tilting container (LxWxH) 855 x 680 x 550 mm
Load max. 500 kg
Volume hollow approx. 0.25 m³

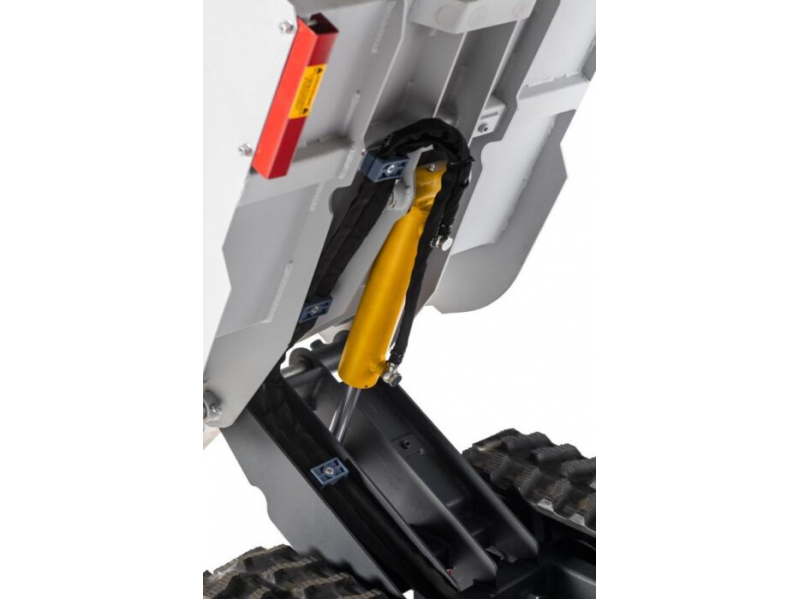

Tilting device hydraulic, tiltable forwards
Hydraulic pumps 2x10l / min (at 3,000 rpm)
Working pressure max. 180 bar
Hydraulic motor Each max. 720 Nm at 180 bar
Working speed (stepless / hydrostatic) forwards / backwards Max. 4.5 / max. 3.2 km / h
Ground clearance 65 mm
Max. Gradeability 15 °
Dimension caterpillar H / 255, W / 180 mm
Dimensions (LxWxH) 1495 x 735 x 1224 mm
Packaging dimensions (LxWxH) 1550 x 850 x 1250 mm


Brand: Lumag

Identifier: VH500A
