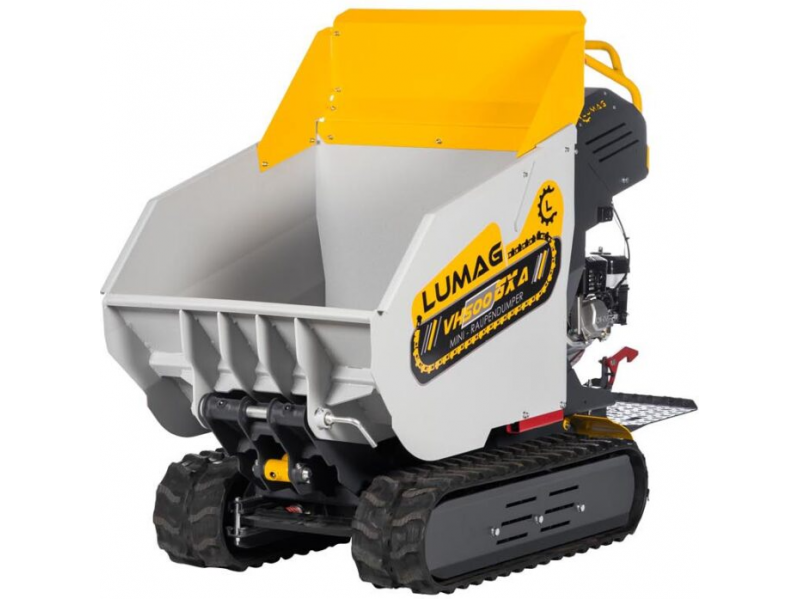

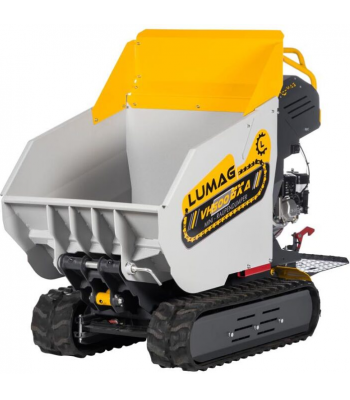

5669.40 2025-01-21The Lumag VH500DA track barrow hire quality track barrow. Fully hydrostatic, robustly made machine. This machine was made with durability and ease of use in mind. It is propelled by a top of the range hydraulic pump. This machine will offer years of great service.
*Delivered fully assembled & ready to use*
Equipment features:
– As the perfect helper for all transport work, the fully hydraulic VH-500DA models provide valuable services in many industries for a wide variety of activities.
– The VH-500DA easily transports loads of up to 500 kg.

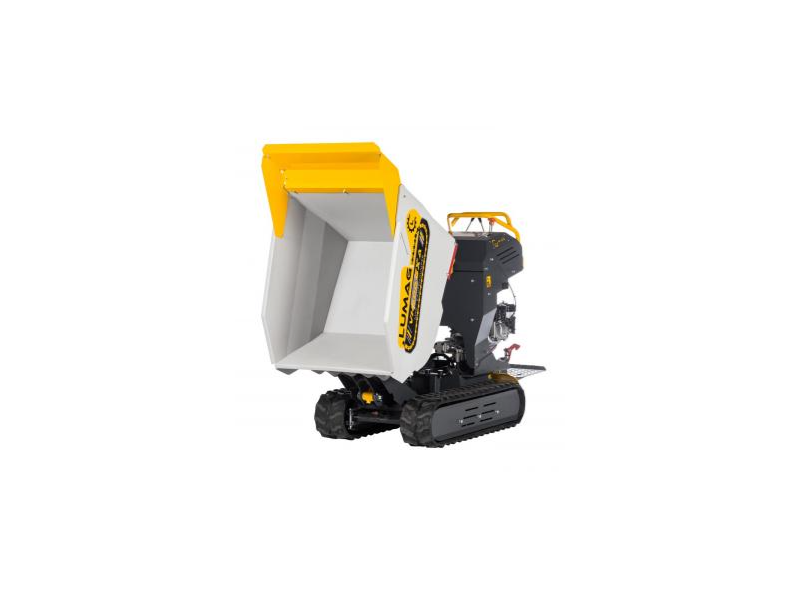

– Bulk and piece goods are emptied using a hydraulic tipping skip.
– Good grip thanks to rubber chains on slippery, smooth and muddy surfaces.
– An extremely narrow design and compact dimensions bring the VH-500DA models safely to the place of use even through narrow gates and paths.
– The massive steel construction and the powerful double hydraulic pump in combination with the simple, intuitive control and the operating platform make the VH-500DA models the ideal helper.
Specifications:
| engine | 1-cylinder LONCIN diesel engine |
| Displacement | 349 cc |
| power | 4.9 kW |
| Max. Speed | 3,600 rpm |
| Starting device | Reversing starter |
| own weight | 330 kg |
| drive | hydraulic |
| steering | Fully hydraulic / control valve |
| Tilting container (LxWxH) | 855 x 680 x 550 mm |
| Load max. | 500 kg |
| Volume hollow | approx. 0.25 m³ |

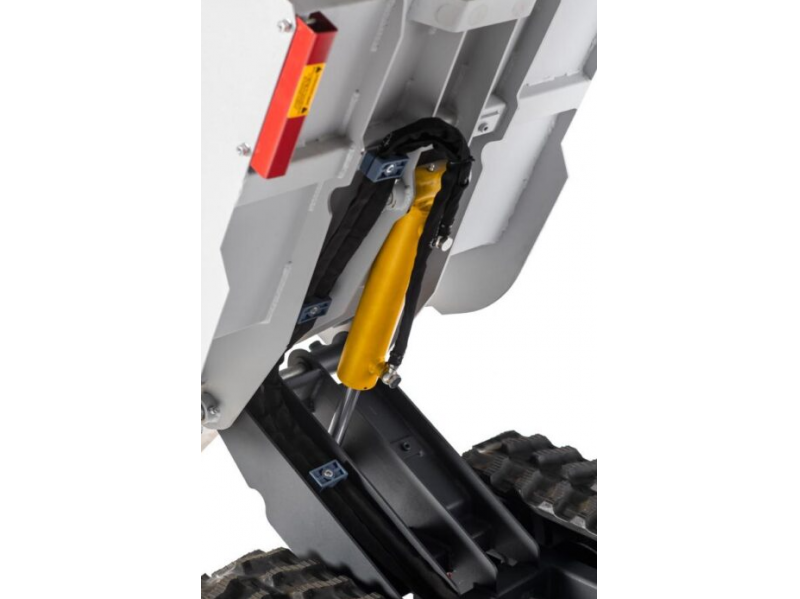

| Tilting device | hydraulic, tiltable forwards |
| Hydraulic pumps | 2x10l / min (at 3,000 rpm) |
| Working pressure max. | 180 bar |
| Hydraulic motor | Each max. 720 Nm at 180 bar |
| Working speed (stepless) forwards / backwards | Max. 4.5 / max. 3.2 km / h |
| Ground clearance | 65 mm |
| Max. Gradeability | 15 ° |
| Dimension caterpillar | H / 255, W / 180 mm |
| Dimensions (LxWxH) | 1495 x 735 x 1224 mm |
| Packaging dimensions (LxWxH) | 1550 x 850 x 1250 mm |
