Quote Ref: @5138
Product ID: LM07355
Related Products: See all related products
Manufacturer: Lumer
Warranty: Click here for info
For Units Purchased & Installed in the UK Only
Thanks you for choosing our product(s). We offer a 12 month warranty for parts and labour against any defects in components or faulty workmanship in manufacturing.
Items found to be defective within 12 months of the units original purchase date will be repaired or replaced without cost to the owner for the parts and direct repair labour.
It does not apply if damage is caused by accident, misapplication, abuse, alteration, tampering or faulty external wiring, incorrect or fluctuating power supply.
Price: (£133.32 ex VAT) £159.98 (inc VAT)
159.98 2024-09-23Rating: 4.9/5 based on 36 review(s).
Part A - Application | Data |
---|---|
Rating – BSEN 60742 | 5.0 kVA General Arrangement |
Primary volts (o0 load) | 230v 1ph (2 wire)) |
Primary current | 21.73 Amps |
Secondary volts (on load) | 110v CTE 1ph (2 wire) |
Secondary Current | 45.45 Amps |
Primary Taps | None Requested |
Frequency – Hz. | 50/60 Hz ± 3Hz |
Type | Dry |
Vector | N/A |
Duty Cycle | Intermittent (5mins on, 15mins off per hour for use with powertools) |
Noise Emission dB (A) – IEC 144 | N/A |
Load Harmonics | Not suitable for input thyristors |
System Fault Level | 16kA @ 400V |
Notes | N/A |
Part B - Insulation | Data |
---|---|
Insulation Class (Temp. rise) - BS2757 | 95°c |
Insulation class | E (120°c max) |
Power Frequency Withstand | 3.3kV for 1 minute |
Over potential test | 800V for 15 Seconds |
Fire behaviour class | Class F0 (no special risk to consider) |
Part C - Windings | Data |
---|---|
Input connections | 2m 2.5mm input flex (3183AG) |

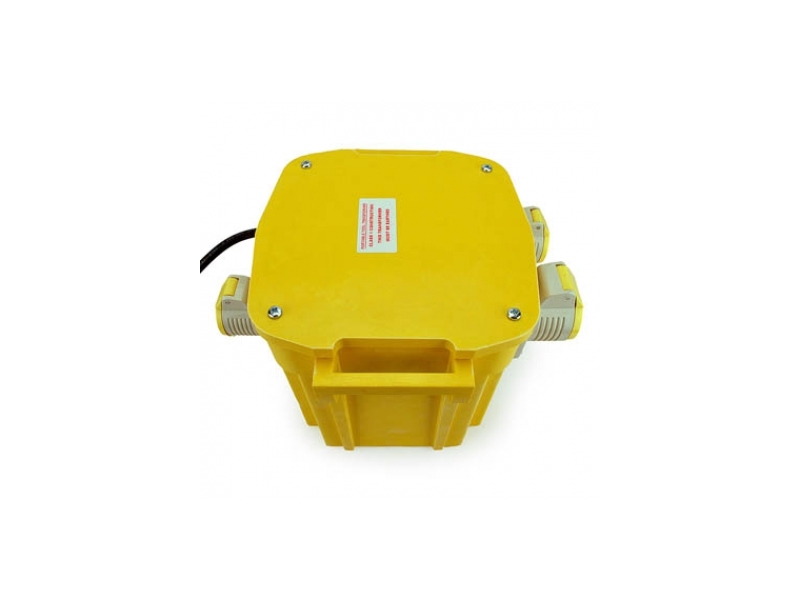

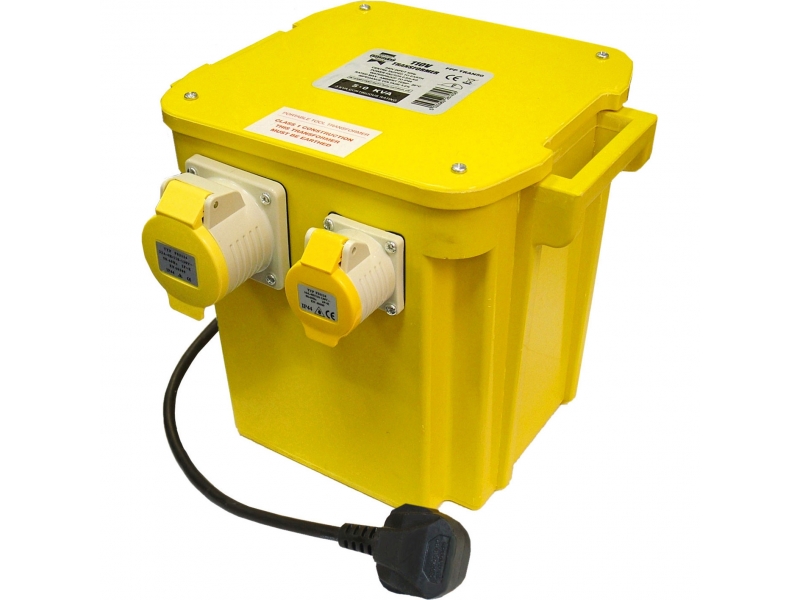

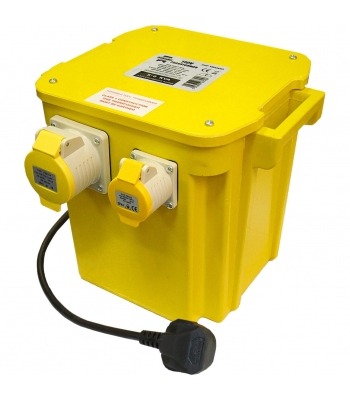

Output connections | 2 x 16A 3pin sockets, 1 x 32A 3pin socket (BSEN 60309) |
Input protection | 18A thermal trip (hand reset) |
Output protection | None |
Ingress Protection BS EN60529 | IP00 |
Enclosed | IP44 |
Painting Process | Varnished Anti-infestation/fungi |
Lifting Facilities | N/A |
Fixing Arrangements | Bolted |
Height mm Approx. H | 270 |
Length mm Approx. A | 310 |
Depth mm Approx. B | 340 |
Weight kg. | 29 |
Part E – Environmental | Data |
---|---|
Cooling Method | ANAN |
Cooling Medium | Natural Air Convection. |
Operating Max Altitude | 1000 metres A.S.L. |
Ambient Temperature ° C | 25 (30 peak) |
Operating Humidity % | 75 |
Storage Ambient Temp. ° C | 71 |
Part F – Performance Data | Data |
---|---|
Total Loss @ nominal Voltage/ Freq. | 125 Watts (approximate) |
Part G - Auxiliary Equipment | Data |
---|---|
Screen between | HV/LV Windings |
Additional Standards/Certificates:Low Voltage Direct. (72/73/EEC), EMC Direct. (89/336/EEC), Machinery Direct. (89/392/EEC). Generally to BSEN 61558
Constant pressing of the override button on this transformer is not advised as it may lead to default of product not covered under warranty
