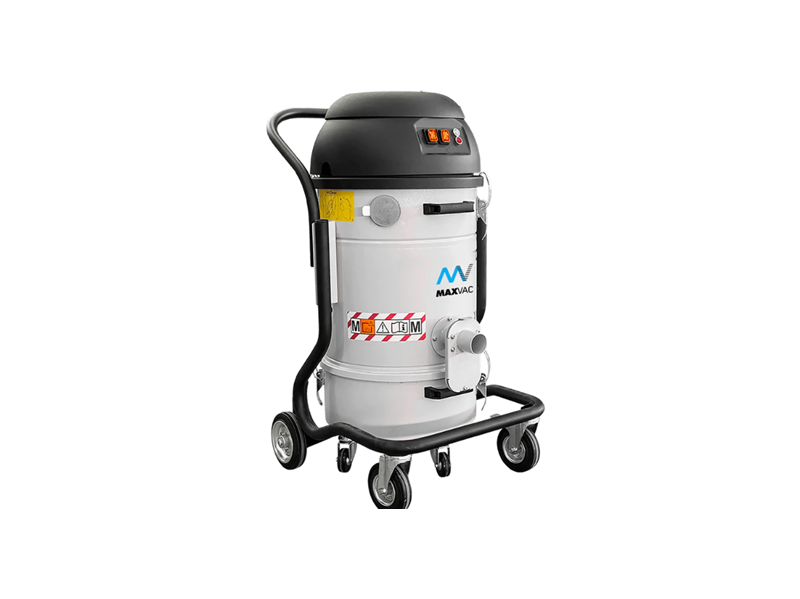

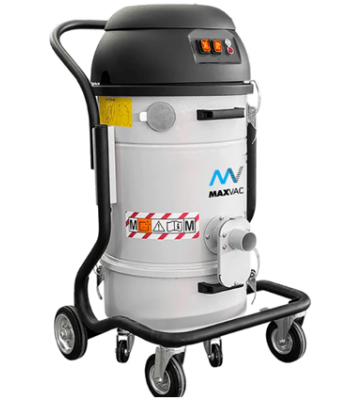

Maxvac Supra Vacuum M Class 430MBS 110v/240v

Compact single-phase industrial vacuum with large filtering surface and semi-automatic filter cleaning system. It is ideal for dry and difficult dust and can be connected to a power tool. It has a 45 Litre detachable container.

SUCTION UNIT

The vacuum is generated by 2 by-pass motors. Each motor is managed by an independent switch, permitting the operator to control the intake performance.
The motors are located in a sturdy casing, with an insulating sponge to maintain a low noise level.

FILTER CLEANING SYSTEM

The vacuum cleaner is equipped with a new Airpulse filter cleaning system. Using the difference in pressure outside and inside the vacuum cleaner, the system generates an air jet which by traveling through the cartridge detaches the dust from the filter's surface. It is a fast and efficient way to keep the filter clean during operations, without stopping the vacuuming operations.

FILTERING ELEMENT

The filtration is guaranteed by a sturdy polyester filtering cartridge. The cartridge is made to ensure large filter surface (34.000 cm2) in a compact space. This way air can pass through when the filter is dirty too. The filter is M Class (BIA | EN 60335-2-69) certified. It stops the particles until 1 micron, preserving the motors and the operator.

COLLECTION BIN

The collected material is stocked inside a painted container. Thanks to its 4 swivelling wheels, the bin can be easily moved and emptied.

Technical Specifications

Air-Flow (incl. filters) - 380 m3
Depression - 250 mBar
Dimensions - 516 x 545 x 1285 mm
Filter Cleaning - Airpulse
Filter Surface Area - 40.000 cm2
Filter Type - M Cartridge
Hose Ø - 50 mm
Hose - 50 mm
Motors / Type - 2 Motors / By-Pass
Noise Level - 72 dB
Power - 2,6 - 3,5 kW
Voltage - 110 Volt / 240 Volt
Warranty - 12 Months
Weight - 45 Kg
Capacity - 45 Lt
