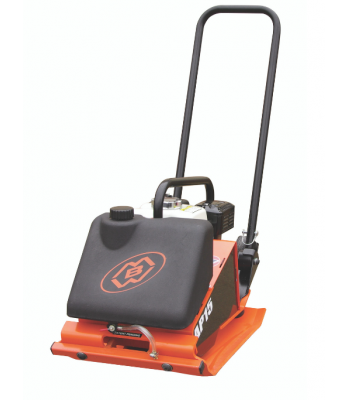

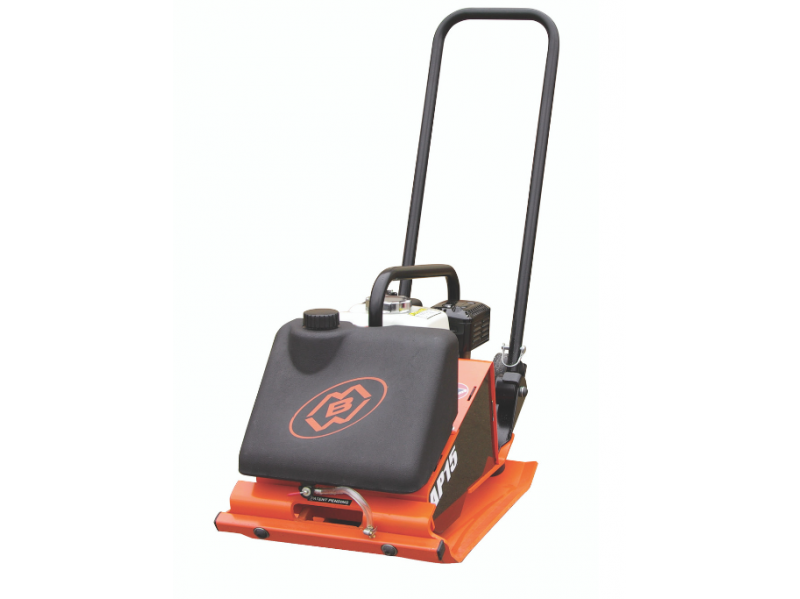

MBW AP15 Asphalt 15" Plate Compactor c/w Roll Cage, Water Sprayer & Honda GX120 Engine

MBW AP series of plate compactors aren’t simply a standard plate compactor fitted with a water tank, they are specifically designed to excel on asphalt / tarmac applications. Frequency, amplitude, centrifugal force and mass are all established at optimal levels for maximum productivity on asphalt applications.

This series of economical vibratory plates, the AP15 is portable, and offer outstanding compaction performance thanks to it's Honda GX120QX engine, a patent-pending suspension system that places shock mounts in a predominantly shear mode at the high amplitude front end of the plate, and a predominantly compressive mode at the low amplitude trailing end of the plate.

This system reduces hand arm vibration and also better isolates all upper mass components, including the engine, from vibrations produced by the machine's exciter. With an amplitude of 1.37mm, centrifugal force of 8.9KN and travel speed of 21 metres per minute these plates are ideal in confined areas of granular soils including sands, bank run, gravels and capable of achieving lift depths of up to 25cm (10 inches) .

These lightweight plates weighing 65kg are easy to lift and maneuver about the jobsite. Accompained by intense vibration this series of plates are ideally suited as an economical alternative for small to medium soil compaction applications.

• One piece exciter with self cleaning open base plate design.
• Made in the USA
• Optional transport wheel kit available.
• Optional neoprene paving pad for placing interlocking paving stone / brick / block.

Specification
