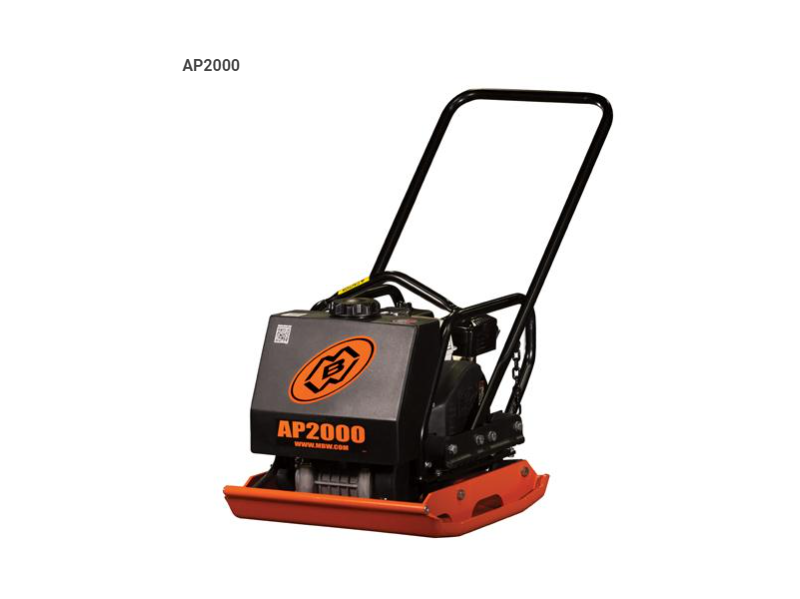

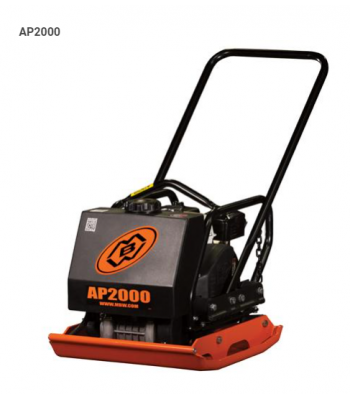

MBW AP2000 Honda GX160 Powered 20" Sand and Gravel Plate Compactor

MBW's AP2000 series is the only vibratory plate compactor specifically designed for asphalt applications.

Frequency, amplitude, centrifugal force and mass are all established at optimal levels for maximum productivity on asphalt.

Further, the mechanical construction of the AP2000 is specific to this very demanding application.

Stress relieved steel plate housings are crack resistant and provide long wear. Aluminium exciter housing dissipates heat rapidly and custom lubricants preserve bearing and seal integrity. The self cleaning plate prevents dirt build-up.

The GP2000 is a permutation of the AP2000 where frequency, amplitude, centrifugal force and mass are adjusted to provide optimal productivity in the compaction of sands and gravel. The GP2000 is capable of achieving excellent densities on lifts of granular soils up to 14" (36cm).

The GP2000 has optional neoprene paving pad accessory for interlocking paving blocks.

Optional transport cart available.Large eccentric weight provides high amplitude, impact energy and travel speed.

Low eccentric frequency offers longer life to bearings and components.

Stress relieved steel plate housings are crack resistant and provide long wear.

Aluminium exciter housing with cooling fins dissipates heat rapidly for long bearing life. .

Standard protection cage with balanced lifting point.

Hook in place operating flip handle for use during transportation.

Large 12-quart impact resistant polyethylene water tank for long operation.

Four rubber shock mounts on handle with nylon bushings and four rubber shock mounts from plate to engine mount; highly reduce vibration and shock to engine and operator.

Ergonomic lifting handle on both sides of plate.

Minimal maintenance with exciter oil change just once a year

Specification

ENGINE HONDA GX160 5.5HP (4.1kW)
OPERATING WEIGHT 76KG(NO WATER)88KG
PLATE SIZE W X L 51 X 56 CM
CENTRIFUGAL FORCE 2475 LBF (11kN)
EXCITER SPEED 4400 VPM
COMPACTION DEPTH UP TI 12 IN (31CM)
TRAVEL SPEED 90FT/MIN (27.14M/MIN)
COMPACTION AREA 8550 SQFT/H (794SQM/H)
