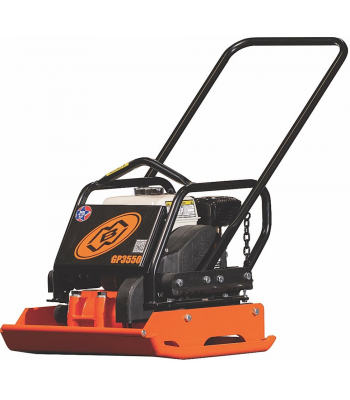

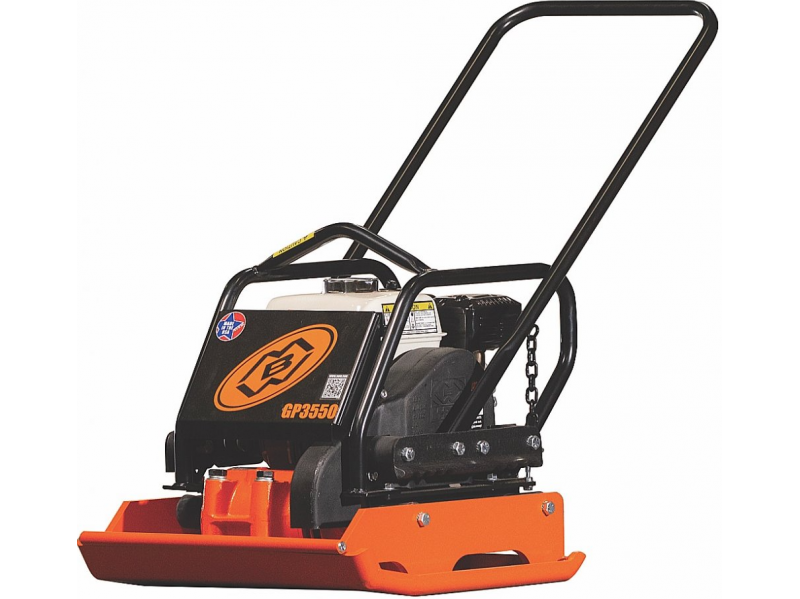

MBW AP3550 21' Compactor Plate for Asphalt Honda GX160 Petrol Engine

Authorised Reseller
Authorised Distributor

Free UK Mainland Delivery over £50 ex. VAT!

Available (Next Working Day Delivery (if ordered by 12pm))

Guaranteed Stock
Order now for delivery on
Tue 26th Nov 2024
1 Hour time slot

Quote Ref: @118926

Product ID: AP3550H

Related Products: See all related products

Manufacturer: MBW Europe

Warranty: 1 Year

Price: 1,666.66 ex VAT) £1,999.99 (inc VAT)

1999.99 2024-12-24
Error! Sorry there has been a problem adding your items to the cart.
Available at checkout!

MBW AP3550 21' Compactor Plate for Asphalt Honda GX160 Petrol Engine

The deck features a full roll cage as standard equipment with provisions for a water tank for asphalt compaction on AP3550.
The base plate is self-cleaning with an open-sided plate design that allows the material to flow out and away from the belt/pulley assembly during operation.
It provides reduced hand/arm vibration, full roll cage protection, enhanced amplitude, faster travel speed and an updated yet rugged appearance.

Features

  • High-performance plate design.
  • Low maintenance exciter unit.
  • Robust construction.
  • Fast travel and high productivity.
  • The large eccentric weight provides high amplitude and impact force for effective compaction, and high travel speed for productivity.
  • Low eccentric frequency offers longer life to bearings and components.
  • Stress relieved steel plate housings are crack resistant and provide long wear.
  • Heavy-duty cast steel exciter housing dissipates heat rapidly to increase bearing life.
  • Standard protection cage with balanced lifting point.
  • Hook in place operating handle for use during transportation.
  • Self-cleaning base plate with open plate design that allows the material to plate design that allows the material to flow out and away from belt/pulley assembly.
  • Four rubber shock mounts on the handle with nylon bushings reduce hand/arm vibration and four rubber shock mounts from plate to engine mount reduce shock to the engine.
  • Ergonomic lifting handle on both sides of the plate.
  • Minimal maintenance with exciter oil change just once a year

Specification

Engine Model Honda GX160
Engine size 163 cc
Operational weight with water 115 kg
Operational weight no water 104 kg
Plate size W X L 53 X 56 CM
Amplitude .086 IN (1.50MM)
Centrifugal force 3550 LB (15.8kN)
Exciter speed 4400 VPM
Compaction depth UP TO 18 IN (47CM)
Travel speed 110 FT/MIN (34M/MIN)
Compaction area 11000 SQFT/H (1022 SQM/H)
