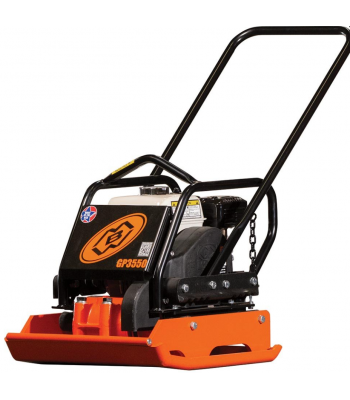

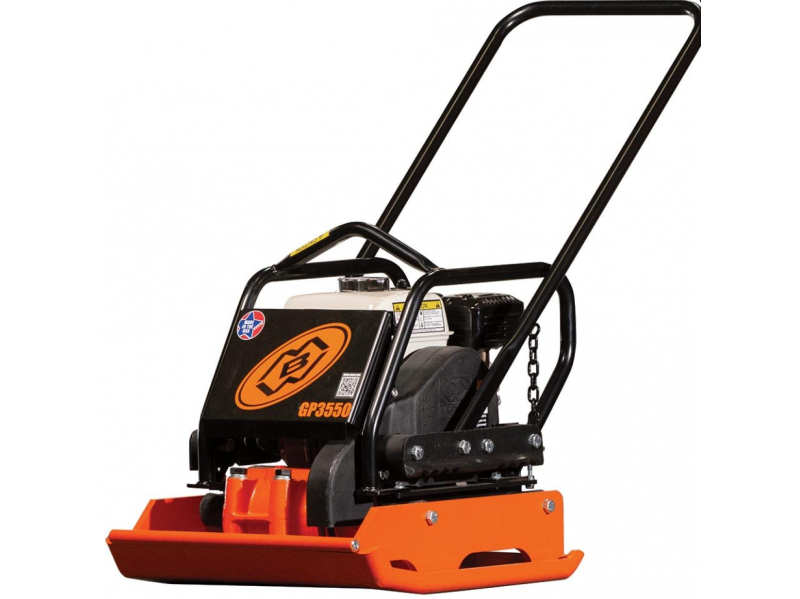

MBW GP3550 21in / 42cm Honda GS160 Powered Plate Compactor

THE GP3550 is a high production compactor that will run decades with reasonable maintenance. The deck features a full roll cage as standard equipment , provided reduced hand/arm vibration, full roll cage protection, enhanced amplitude, faster travel speed and updated yet rugged appearance. The GP3000-15 is ideal for confined work areas, such as sidewalk, curb and gutter, and narrow trenches. This specialty plate is not a lightweight compactor. Its operating weight is over 200 lbs. (91 kg) and produces compaction depths up to 16 in. (41 cm)* and a travel speed of 120 ft/min (36.6 m/min).

The base plate is self-cleaning with an open sided plate design that allows material to flow out and away from the belt/pulley assembly during operation.

  • Plate Size WxL: 21 x 22 in (53 x 56 cm)
  • High performance plate design.
  • Low maintenance exciter unit.
  • Robust construction.
  • Fast travel and high productivity.
  • Large eccentric weight provides high amplitude and impact force for effective compaction, and high travel speed for productivity.
  • Low eccentric frequency offers longer life to bearings and components.
  • Stress relieved steel plate housings are crack resistant and provide long wear.
  • Heavy duty cast steel exciter housing dissipates heat rapidly to increase bearing life.
  • Standard protection cage with balanced lifting point.
  • Hook in place operating handle for use during transportation.
  • Self cleaning base plate with open plate design that allows material to plate design that allows material to flow out and away from belt/pulley assembly.
  • Four rubber shockmounts on handle with nylon bushings reduce hand/arm vibration and four rubber shockmounts from plate to engine mount reduce shock to engine.
  • Ergonomic lifting handle on both sides of plate.
  • Minimal maintenance with exciter oil change just once a year

Specification

Plate Size 53 X 56 CM / 21in x 22 in
Engine Honda GX160 9.9 CU IN (163CM³)
Amplitude 1.50MM / .087 IN
Centrifugal Force 15.8kN
Exciter Speed 4400 VPM
Compaction Depth Up To 47CM / 18 in
Travel Speed 34M/MIN / 110 FT/MIN
Compaction Area 1022 SQM/H / 11000 SQFT/H
Operating Weight 103 KG

Brand: MBW Europe

Identifier: MBW_GP3550
