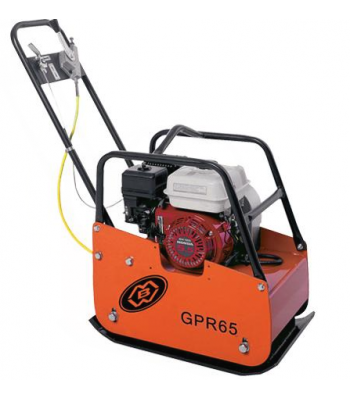

MBW GPR65H 15" REVERSIBLE PLATE COMPACTOR C/W HONDA GX160

The GPR65 and 68 series are compact reversible plates ideal for narrow trenches and confined areas.

HEAVY DUTY SHIFTING

The heavy duty mechanical shifting mechanism allows for directional changes at full speed. Endurance testing was terminated at 400,000 shifts without system failure - the best result MBW (and very likely any manufacturer) has ever achieved on a reversible plate shifting design.

The GPR65 and 68 are also high production plates. Travel speeds to 95ft/min are achieved with good compaction conditions and the plates move with ease over irregular lift surfaces. Head-to-head competitive demonstration quickly establishes the comparative benefits of the GPR65 and GPR68. GPR77.

With eight years of exceptional maintenance history behind models GPR65 and GPR68, MBW now introduces a similar mechanical shifting design on a larger reversible. The GPR77 is a 400 pound reversible plate producing 7775 pounds of CF at 4725 vpm.

The simple yet reliable shifting design lowers acquisition cost, is low maintenace and provides a geo-techincal benefit in its ability to shift travel direction at constant speed. Shifting travel direction at constant speed greatly enhances the user's probability of achieving uniform density and stiffness over the area being compacted.

• Heavy duty mechanical shifting mechanism.

• High production plate compactor.

• Low maintenance design.

• Petrol and diesel engine options.

Specifications
