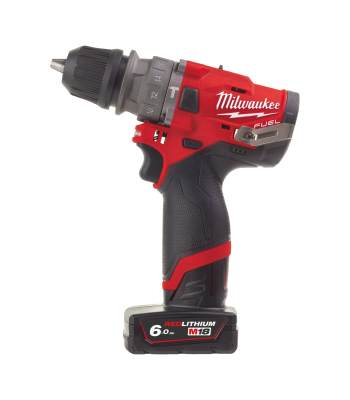

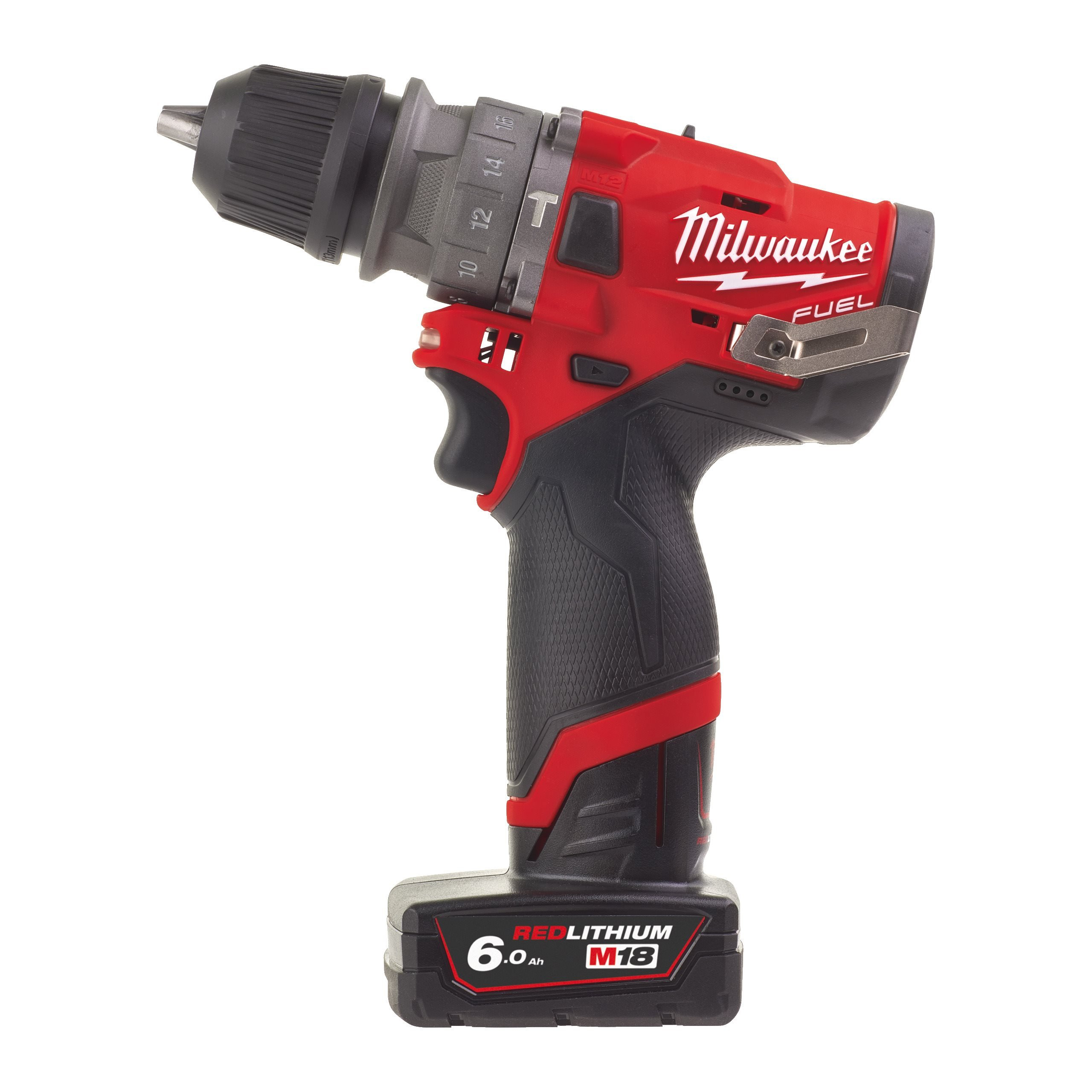

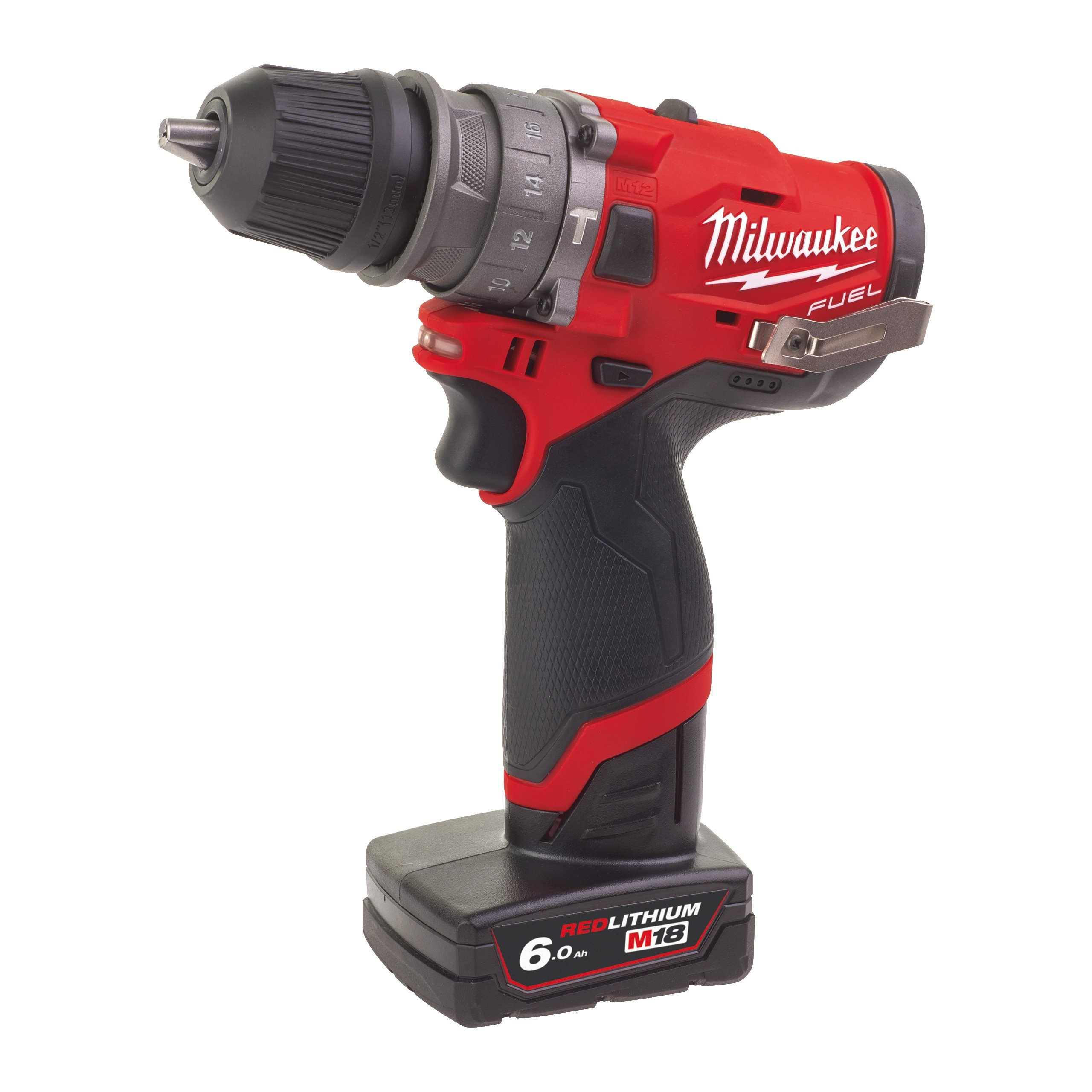

Milwaukee M12 FUEL™ Sub Compact Percussion Drill With Removable Chuck - Model M12FPDXKIT-602X

Great work lasts longer. Our M12™ Sub Compact Percussion Drill with Removable Chuck is designed with professionals in mind. Learn more about our drilling range.

Features

  • High performance compact 6-in-1 percussion drill system for extreme versatility

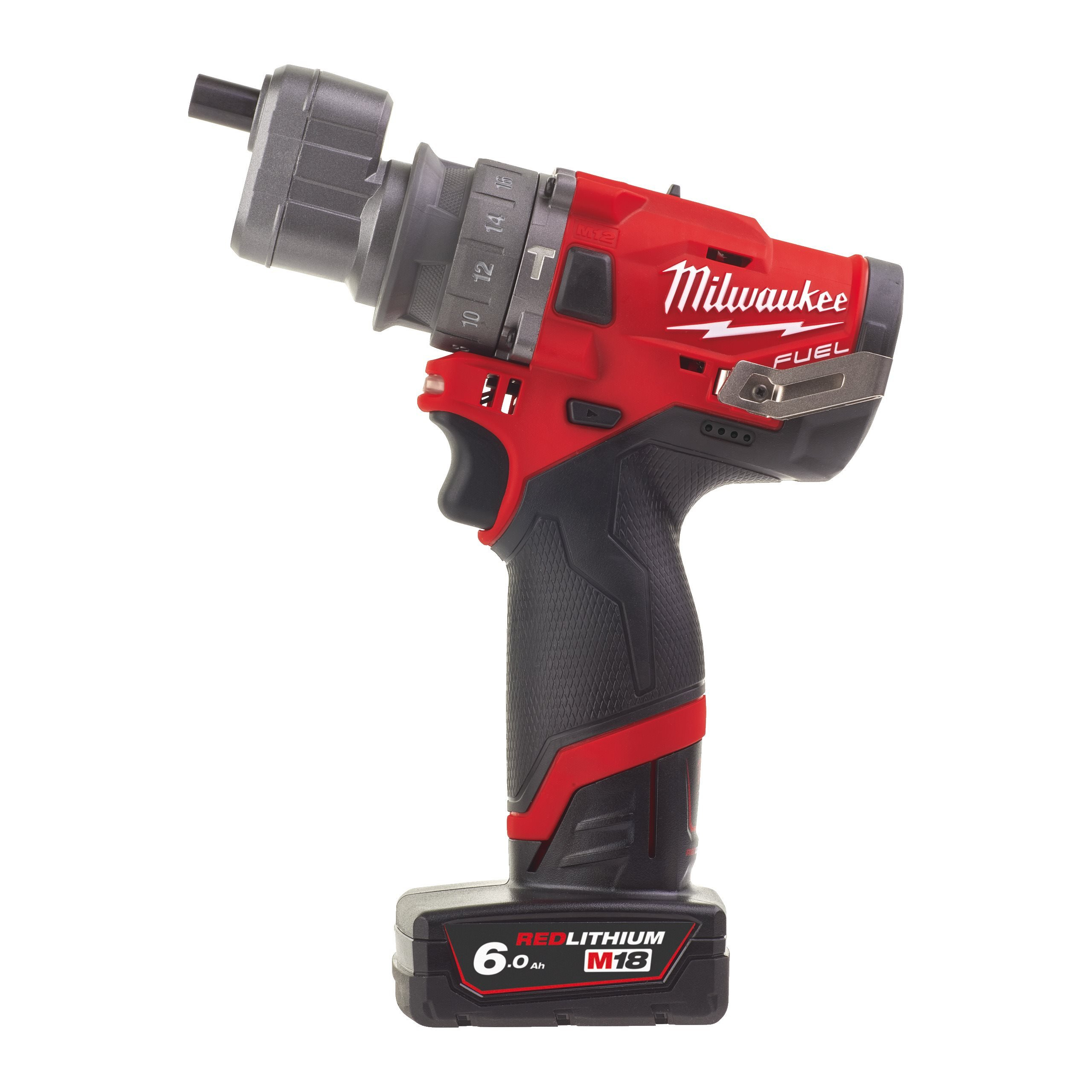

  • Removable chuck system with 3 different heads for multiples of applications
  • Brushless POWERSTATE™ motor delivers up to 44 Nm of torque
  • REDLINK PLUS™ intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load
  • REDLITHIUM™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life

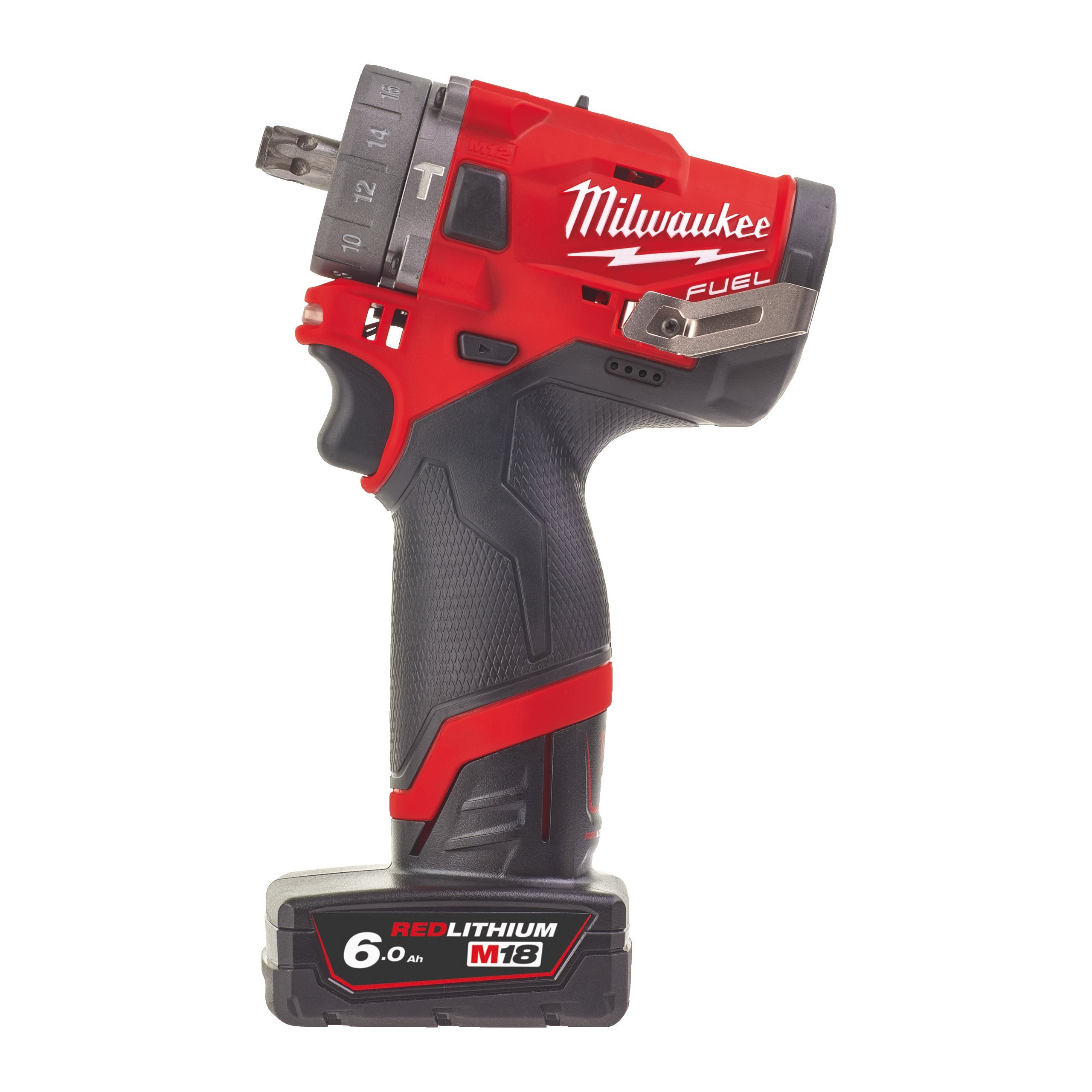

  • 13 mm keyless chuck, full metal right angle ¼″ hex drive head and full metal offset ¼″ hex drive head

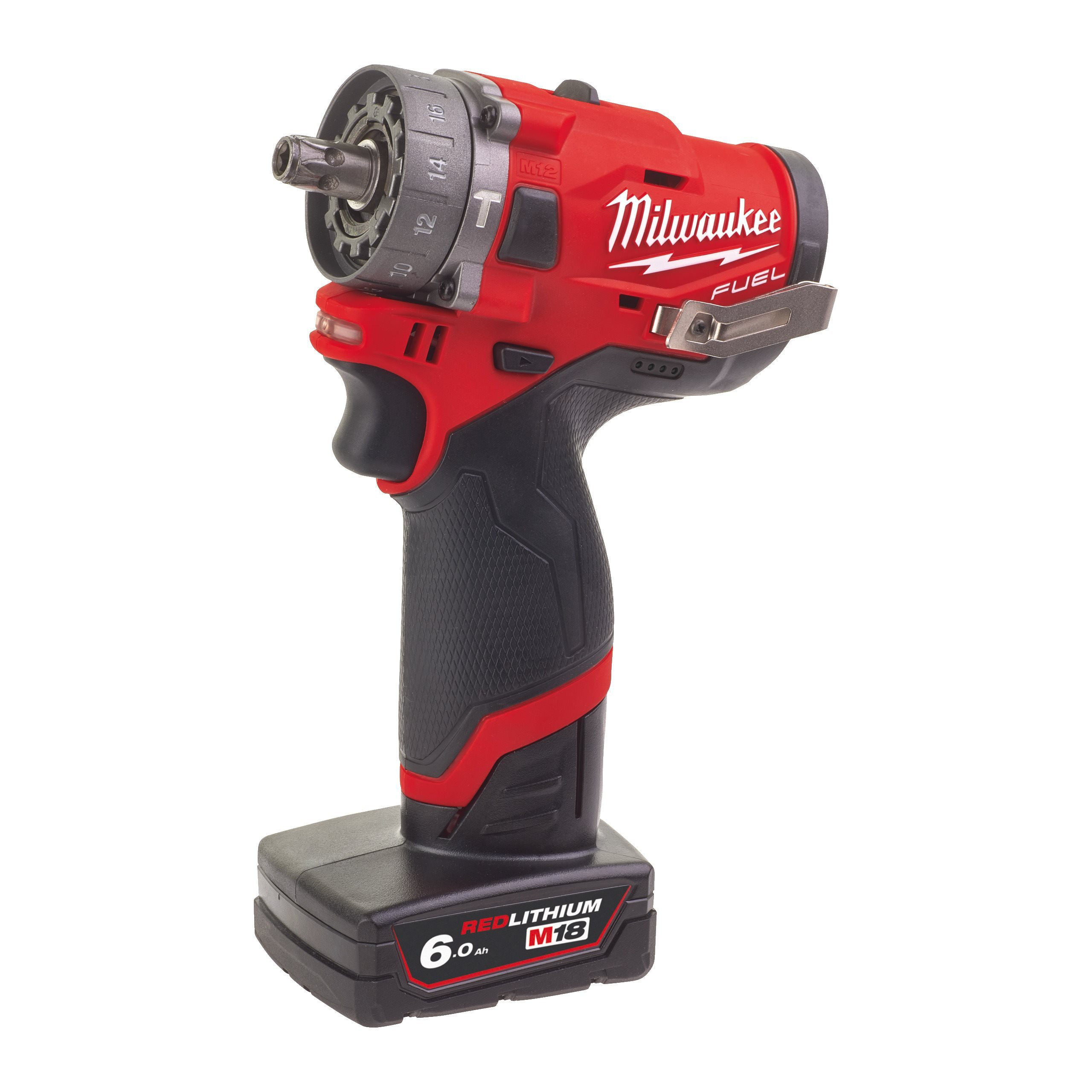

  • ¼″ hex drive behind chuck fitting, reduces drill length to 138 mm when required
  • Full metal planetary gearbox transmission for extreme durability
  • LED light for workspace illumination
  • Flexible battery system: works with all MILWAUKEE® M12™ batteries

M12 FPDXKIT-602X Specifications - 4933464189

Base Information

Chuck capacity (mm)13
Kit included2 x M12 B6 Battery packs, C12 C Charger, HD Box
Max. drilling masonry (mm)13
Max. drilling steel (mm)13
Max. drilling wood (mm)35
Max. percussion rate (bpm)0 - 25,500
Max. torque (Nm)44
No load speed gear 1 (rpm)0 - 450
No load speed gear 2 (rpm)0 - 1700
Standard equipmentRemovable chuck, offset attachment, right angle attachment
Supplied inHD Box
Wood screws to (mm)8
Article Number 240V4933464189
EAN 240V4058546221348

Power Source

Battery pack capacity (Ah)6.0
Battery typeLi-ion
Charger includedC12 C
Charger supplied90 min
No. of batteries supplied2
Voltage (V)12

Weight

Weight with battery pack (EPTA) (kg)1.5 (M12 B6)

Noise

Sound power level (Lwa)(dB(A))100
Sound power level uncertainty (dB(A))3
Sound pressure level (Lpa)(dB(A))89
Sound pressure level uncertainty (dB(A))3

Vibration

Vibration drilling into Metal (m/s²)1.92
Vibration drilling into metal uncertainty (m/s²)1.5
Vibration percussion drilling into concrete [m|s²]15.73
Vibration percussion drilling into concrete uncertainty [m|s²]1.5
Vibration screw driving (m/s²)0.86
Vibration screw driving uncertainty [m|s²]1.5

General Information

Explore the range of MILWAUKEE® Cordless Percussion Drills, available in different sizes and speeds. The compact M12™ range provides dynamic power in tight spaces, while the more powerful M18™ selection gives you the performance needed to tackle tougher jobs. At 152mm long, the M12 FUEL™ Sub Compact Percussion Drill reaches spaces other tools can’t. Delivering 45 Nm of torque with impressive run time and durability, it’s a versatile option for your tool collection. The M18 FUEL™ Percussion Drill offers a sturdier build and enhanced power output, boasting a torque of 135 Nm. Still compact at 175mm in length, it’s suitable for a range of work environments and won’t take up too much storage space. The brushless POWERSTATE™® motor ensures efficiency under heavy loads, while the battery’s fuel gauge shows you how much charge is left so you’re not guessing. The M18™ Brushless Percussion Drill is another versatile choice, providing excellent balance for easy overhead use. A heavy-duty metal chuck allows for fast bit changes and enhanced retention so you can work with optimal flow. Browse the range of premium MILWAUKEE® Percussion Drills below to find the model best suited to your requirements.
