Milwaukee M12™ Sub Compact Ratchet

Authorised Reseller
Authorised Distributor

Free UK Mainland Delivery over £50 ex. VAT!

Available (Estimated Delivery Time 3-5 Working Days)

Guaranteed Stock
Order now for delivery by
Wed 2nd Apr 2025
1 Hour time slot

Quote Ref: @65650

Product ID: TTI_4933448110

Barcode: 4002395006984

Manufacturer: Milwaukee

Warranty: Click here for info

The end user warranty period is 12 months and begins on the date that the unit was purchased. This must be documented by an invoice or other proof of purchase. Products in the hire industry are excluded from this 12 month warranty.

Warranties can be extended on tools purchased from 2008 in the countries listed at http://service.milwaukee-et.com to 3 years provided that the end consumers register their newly acquired tools for the extended warranty online within four weeks of the date of purchase.

A warranty repair is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts become our property. In some countries delivery charges or postage will have to be paid by the sender.

Click here for more information

Click here to register for an extended warranty.

List Price: £162.23 194.68 inc VAT)

Web Price: 141.07 ex VAT) £169.28 (inc VAT)

169.28 2025-04-24
Error! Sorry there has been a problem adding your items to the cart.
Available at checkout!

Milwaukee M12™ Sub Compact Ratchet

M12™ sub compact impact ratchet delivers durability and power in a compact size. Part of the M12™ cordless range.

Features

  • Pneumatic performance with cordless convenience, 47 Nm of torque and no load speed of 250 rpm
  • REDLINK™ overload protection electronics in tool and battery pack deliver best in class system durability
  • Reinforced housing - provides high durability similar to steel ratchets

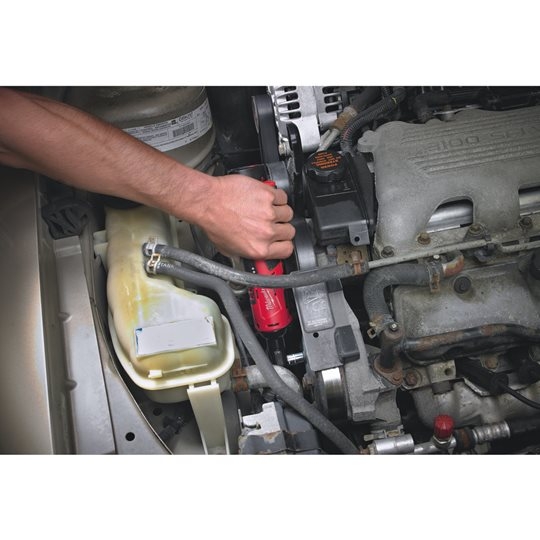

  • Compact design - ideal for tight spaces and small engine bays
  • Variable speed metal paddle switch trigger - provides greater user control during application
  • Individual battery cell monitoring optimises tool run time and ensures long term pack durability
  • On board fuel gauge and LED light - added user convenience and illumination in low lit working conditions
  • REDLITHIUM™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life
  • Flexible battery system: works with all MILWAUKEE® M12™ batteries

M12 IR-201B 3/8 Specifications - 4933448110

Base Information

Handle circumference [mm]45
Head profile [mm]20
Kit included1 x M12 B2 Battery pack, C12 C Charger, Tool bag
Length (mm)274
Max. torque (Nm)47
No load speed (rpm)0 - 250
Supplied inTool bag
Tool reception⅜″ square
Article Number 240V4933448110
EAN 240V4002395006984

Power Source

Battery pack capacity (Ah)2.0
Battery typeLi-ion
Charger includedC12 C
Charger supplied40 min
No. of batteries supplied1
Voltage (V)12

Weight

Weight with battery pack (EPTA) (kg)0.9 (M12 B2)

Noise

Sound pressure level (Lpa)(dB(A))72
Sound pressure level uncertainty (dB(A))3

Vibration

Vibration screw driving (m/s²)<2.5
Vibration screw driving uncertainty [m|s²]1.5

M12 IR-201B 1/4 Specifications - 4933451019

Base Information

Handle circumference [mm]45
Head profile [mm]20
Kit included1 x M12 B2 Battery pack, C12 C Charger, Tool bag
Length (mm)274
Max. torque (Nm)40
No load speed (rpm)0 - 250
Supplied inTool bag
Tool reception¼″ square
Article Number 240V4933451019
EAN 240V4002395136728

Power Source

Battery pack capacity (Ah)2.0
Battery typeLi-ion
Charger includedC12 C
Charger supplied40 min
No. of batteries supplied1
Voltage (V)12

Weight

Weight with battery pack (EPTA) (kg)0.90 (M12 B2)

Noise

Sound pressure level (Lpa)(dB(A))72
Sound pressure level uncertainty (dB(A))3

Vibration

Vibration screw driving (m/s²)<2.5
Vibration screw driving uncertainty [m|s²]1.5

General Information

MILWAUKEE® Cordless Ratchets allow you to tighten and loosen nuts and bolts without feeling fatigued. Explore the range including high-speed models for increased productivity and Rachets with extended necks for access to tight spaces. MILWAUKEE® Cordless Ratchets incorporate FUEL™ technology that delivers unrivalled performance through a brushless motor and long-lasting battery power. Comfortable, ergonomic grips complement the variable speed trigger allowing you to stay in full control of the tool. Enhanced durability means they’re capable of withstanding even the toughest site conditions. The M12 FUEL™ INSIDER™ Pass-Through Ratchet has the lowest-profile head in the range and an extended neck for easy access into confined spaces. It comes with ¼″ and ⅜ ″ anvil adapters and a ¼″ Hex bit holder, adding further versatility to your toolkit. Inbuilt dual LED lights help to light up the immediate work area. For faster performance, the M12 FUEL™ High Speed Ratchet is a natural choice, offering up to 47 Nm of max torque and 450 rpm. Choose between ¼″ and ⅜ ″ depending on the job. This is also available as an Extended Reach model with a longer neck for tighter spaces. The M12 FUEL™ ONE-KEY™ ½″ Digital Torque Wrench is ideal if you’re looking to add an electric Torque Wrench to your arsenal. You'll gain the added benefit of torque data and customisable reports through ONE-KEY™. For a compact Cordless Ratchet design, the M12 FUEL™ Sub Compact models offer excellent performance despite their smaller size. Browse the MILWAUKEE® Cordless Ratchet range today to upgrade your Ratcheting Wrench Set.

Brand: Milwaukee

Identifier: 4933448110


Thank you! Your review has been submitted for approval.

Item Details

Brand new packaged items only.

Comes with a full manufacturer warranty (not including consumable products).

Please make use of any product reviews or youtube clips we have available to learn more about the item.

This item is usually delivered within 5 working day(s).

Website Details

SSL Certified Secure website to ensure secure online ordering.

Please return the item/s if not suitable for a full refund (within 7 working days of receipt).

We guarantee security of all your personal details, we do not pass on any customer information.

Accept all payment methods including all major Credit Cards, Paypal and Amazon Payments.


Ordering

Order online now using our Secure SSL Certified Secure website.

Add this product to your basket and come back at any time to complete the order.

Order by phone on 01737783101.

Order with an official purchase order by emailing [email protected]. We will check your account status or if you do not hold an account we will credit check your organisation, confirm and process your order. Please note the first order(s) will always need to be paid upfront unless you are a government linked organisation. Goods remain the property of Sitebox Ltd until paid for in full as per our full terms and conditions.

Warranty Information

The end user warranty period is 12 months and begins on the date that the unit was purchased. This must be documented by an invoice or other proof of purchase. Products in the hire industry are excluded from this 12 month warranty.

Warranties can be extended on tools purchased from 2008 in the countries listed at http://service.milwaukee-et.com to 3 years provided that the end consumers register their newly acquired tools for the extended warranty online within four weeks of the date of purchase.

A warranty repair is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts become our property. In some countries delivery charges or postage will have to be paid by the sender.

Click here for more information

Click here to register for an extended warranty.

Type

Option Price Difference
M12 IR-201B 3/8 - 4933448110 none
M12 IR-201B 1/4 - 4933451019 11.79
