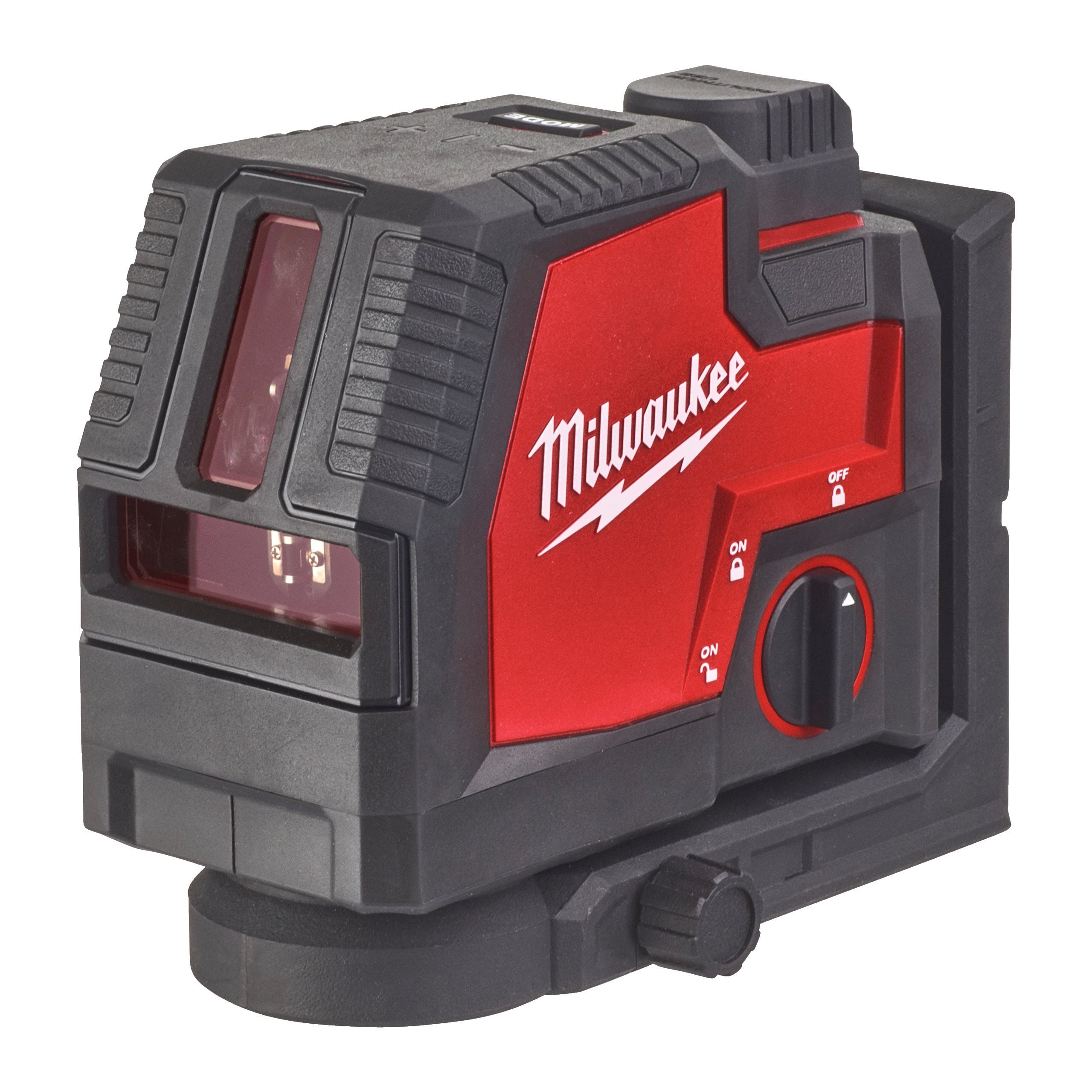

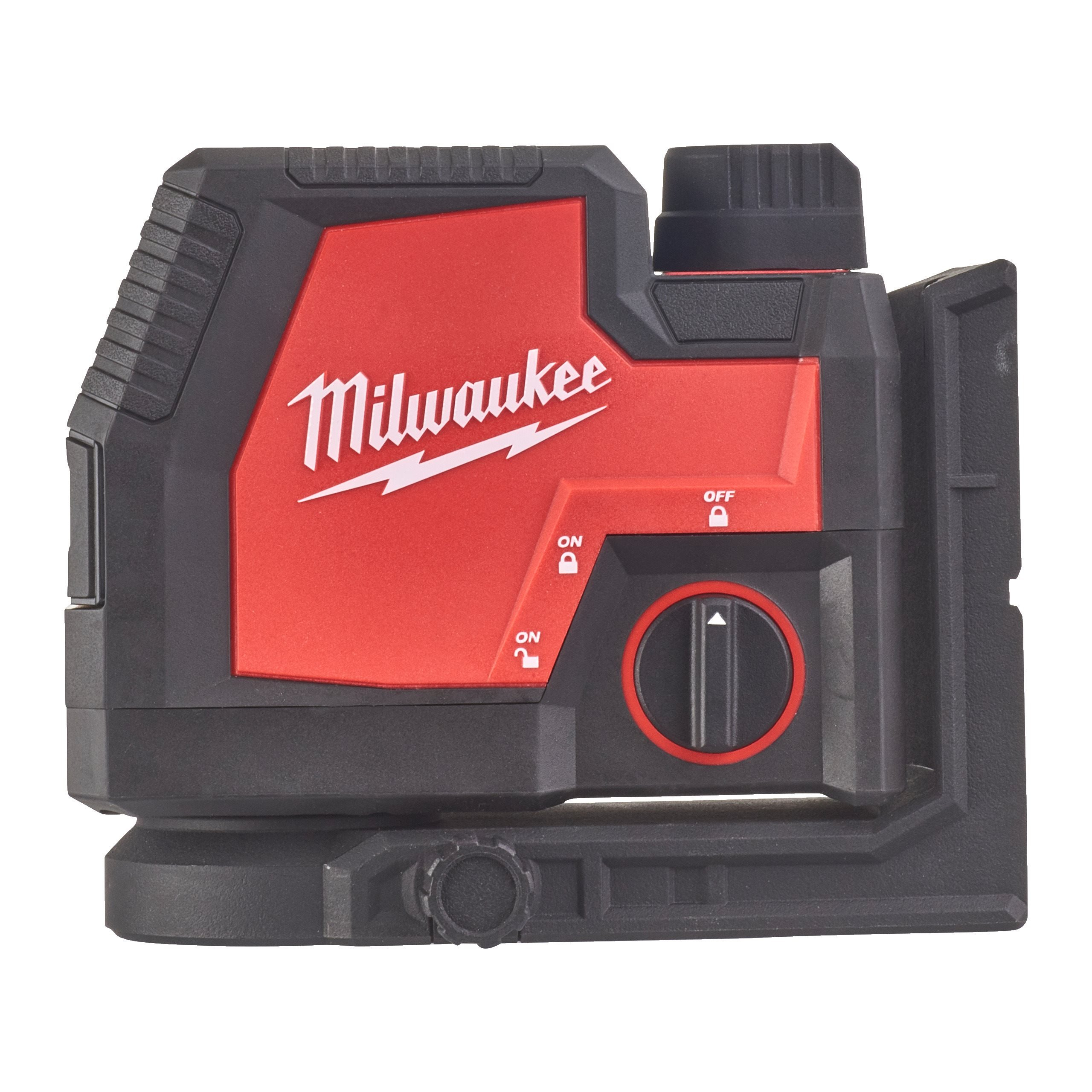

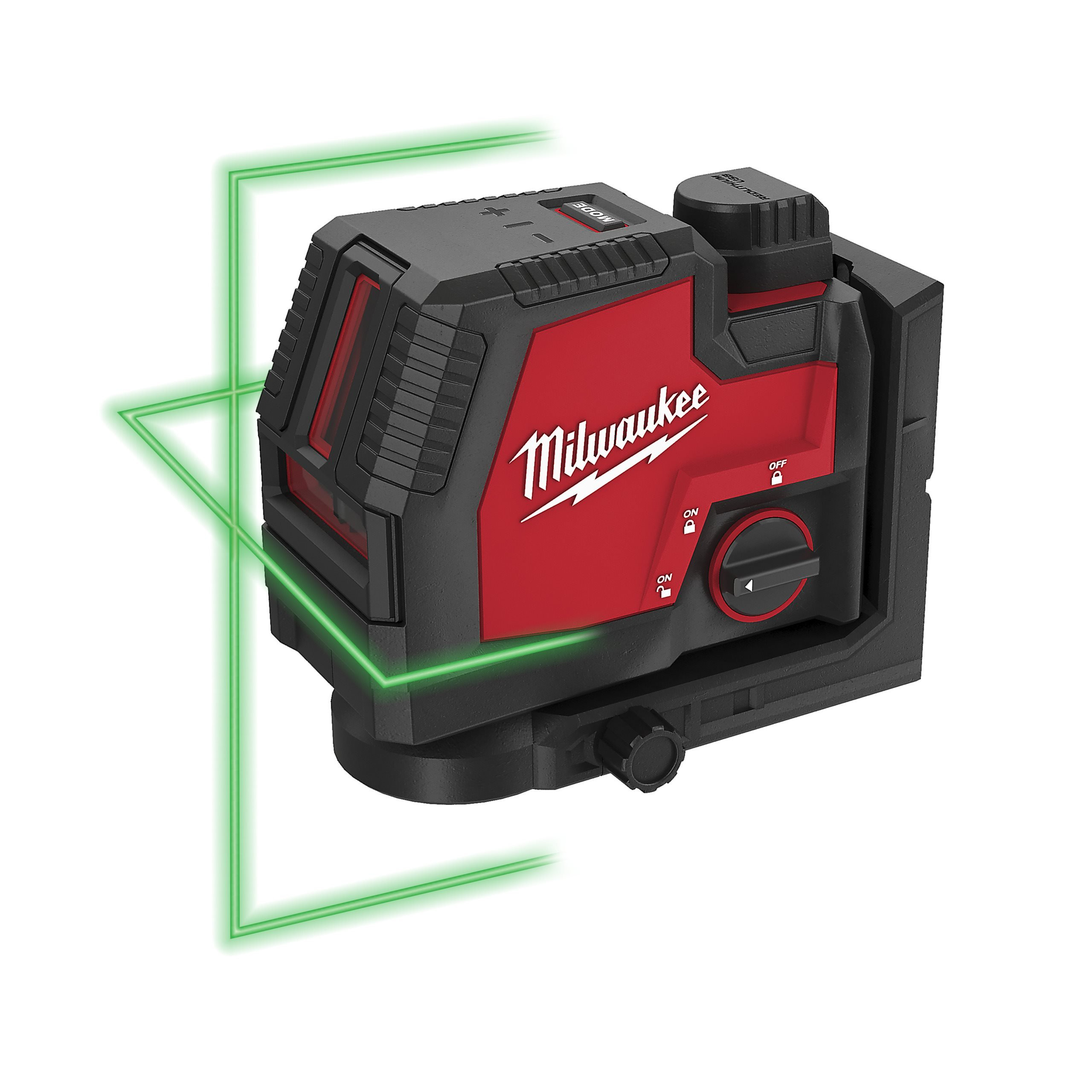

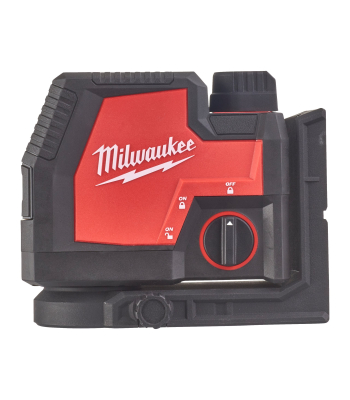

Milwaukee USB Rechargeable Green Cross Line Laser - Model L4CLL-301C

Great work lasts longer. Our USB rechargeable green cross line laser is designed with professionals in mind. Learn more about our Lasers range

Features

  • REDLITHIUM™ USB rechargeable green cross line laser provides an all-in-one functionality with horizontal levelling and vertical alignment
  • High intensity green laser diode for maximised visibility; up to 4x better visibility vs red lasers
  • High intensity green beams provide a working range of 30 m and up to 100 m with a detector
  • The rechargeable and removable REDLITHIUM™ USB 3.0 Ah battery provides all day run time of over 8 hours
  • 1x REDLITHIUM™ USB 3.0 battery replaces up to 6,000 alkaline batteries over the lifetime of the battery
  • 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport
  • Integrated magnetic bracket with rear mounted amplified rare earth magnets, ¼″ tripod thread and hang hole - allows attachment to steel stud, wooden stud and tripod
  • The bracket also provides the laser 360° rotation, with an integrated micro control knob for faster point to point alignment
  • Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops
  • Conveniently charge REDLITHIUM™ USB battery internally during use with micro-USB cable from USB power source or AC outlet
  • Fuel gauge on the top and side of the laser allows for fast checking of the REDLITHIUM™ USB battery charge
  • Includes 1x track clip

L4 CLL-301C Specifications - 4933478243

Base Information

Accuracy [mm|m]0.3
Colour of laser lineGreen
Compatible laser detectorLLD50
IP protection classIP 54
Kit included [L4]1 x L4 B3 Battery pack, USB cable and wall plug, Kitbox
Laser clasificationClass 2
Laser projection1x vertical, 1x horizontal
Max. run time with L4 B3 battery [h]8
Self levelling range (°)4
Self levelling time [s]3
Standard equipmentTrack clip
Supplied inKitbox
Working range detector [m]50 / 100
Working range visible [m]30.0
Article Number 240V4933478243
EAN 240V4058546344207

Power Source

Battery pack capacity (Ah)3.0
Battery typeLi-ion
Charger includedUSB cable and wall plug
No. of batteries supplied1
Voltage (V)4

Weight

Weight with battery pack (EPTA) (kg)0.90 (L4 B3)

General Information

Take precision to the next level with MILWAUKEE® professional-grade Cross Line Laser Levels. Engineered for exceptional accuracy, these tools ensure seamless alignment and levelling for a variety of applications. The M12™ Green Cross Line Laser With 4 Points is the ultimate all-in-one Cross Line Laser for professional use. Delivering bright green horizontal and vertical lines with four plumb points, it allows for precise floor-to-ceiling alignment. Its high-intensity laser beams provide superior visibility, even in challenging conditions. Powered by the M12™ REDLITHIUM™ 3.0 Ah battery, the Cross Line Laser provides up to 9 hours of continuous runtime for all-day productivity. Featuring high-visibility green laser technology and a 3-mode pendulum system, MILWAUKEE® Alkaline Green Cross Line Lasers deliver powerful beams with a working range of 30 m - up to 50 m with a detector. Its robust yet compact design and IP54 rating make it the ideal choice for demanding jobsite conditions. Versatility and convenience combine in a compact package with the MILWAUKEE® USB Rechargeable Green Cross Line Laser With Plumb Points. Its rechargeable and removable REDLITHIUM™ USB 3.0 Ah battery ensures cost savings and uninterrupted performance for over 8 hours, while the integrated magnetic bracket allows for secure, hands-free operation. For maximum coverage and precision, the M12™ Green 360° 3-Plane Laser projects three full 360° cross line lasers, offering complete horizontal and vertical alignment for large-scale layout applications. The Cross Line Laser Level's bracket also provides 330° rotation that pivots on a plumb point, with an integrated micro control knob for rapid point-to-point alignment. Browse the entire collection of MILWAUKEE® Cross Line Laser Levels today.
