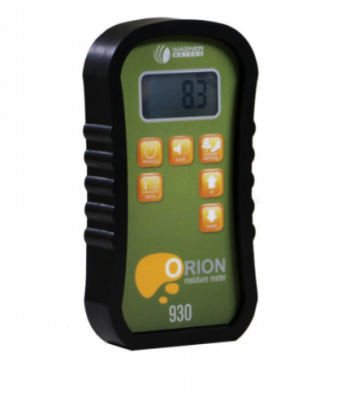

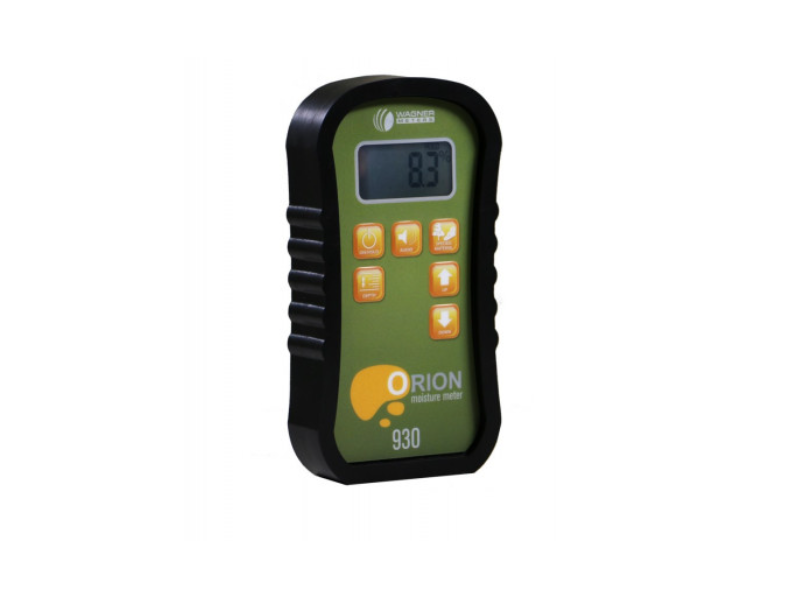

ORION 930 DUAL DEPTH PINLESS WOOD MOISTURE METER KIT

The Orion 930 Dual Depth Pinless Wood Moisture Meter Kit features the Orion 930 meter, designed for measurement of moisture content from the surface down to .25” (6.4mm) or .75” (19mm) deep inside wood or other material.

The Orion 930 Dual Depth Moisture Meter features the versatility that is needed for flooring, quality control, woodworking, and inspection applications.

Dimensions with Boot:

• Length: 5.75 inches (146mm)
• Width: 3.0 inches (76mm)
• Thickness: 1.0 inches (25mm)

Weight with Boot:

• 7.2 oz. (204g)

Scanning Area:

• 2.0 inches (50mm) x 2.5 inches (63mm)

Power:

• 9-volt battery (Wagner recommends using non-rechargeable Alkaline or Lithium or rechargeable NiMH batteries)

Auto Power Shut-Down:

• 60 seconds

Measurement Ranges:

• MC for wood: 4.0% to 32.0% (range will vary slightly depending on species setting)
• Relative Measurement Scale: 0-100

Specific Gravity Range for Wood Species:

• 0.20-1.0 SG

Storage Temperature and Humidity:

• +50°F to +90°F (+10°C to +32°C), Maximum relative humidity of 95%, Non-condensing

Operating Temperature Range:

• +32°F to +110°F (+0°C to +43°C)

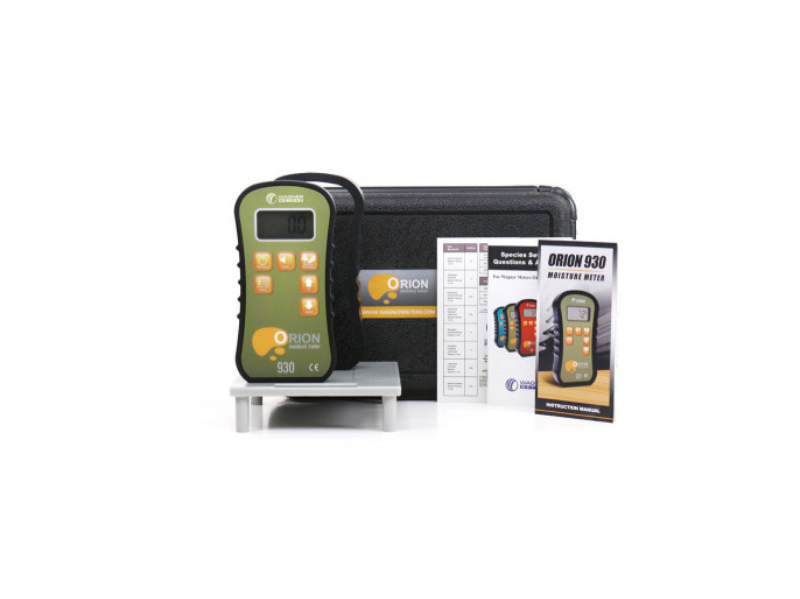

Includes:

• Orion 930 Wood Moisture Meter
• Paired On-Demand Calibrator
• Rubber Protective Boot
• Foam-lined ABS Plastic Carrying Case
• 9V Battery
• Species Settings Booklet
• Instruction Manual
• Common Flooring Materials Settings Reference Card
