P1 Power P3500PWA 3480psi 206bar Petrol Pressure Washer , 7hp Engine, 8.7L/min Flow, Q/R Fittings, Axial Pump

Key Features

• Easy assembly- quick fit puncture-proof 12” wheels and soft-grip handle, connect the high-pressure hose to the trigger gun and connect the quick release garden hose fitting and you are ready to start cleaning.
• Powerful- more powerful than an electric pressure washer- this 7hp petrol engine produces 5600w, most DIY electric pressure washers are only 1400w to 2000w.
• Easy to use and transport- the large 12” puncture-proof wheels, quick release soft-grip handle with integral detergent tank mean this compact unit is portable and super easy to use and move around.
• Oil Requirements- 600ml of SAE15W40 or SAE30 This pressure washer has a hassle and maintenance-free sealed pump.

Powerful IC210 Engine Petrol Pressure Washer

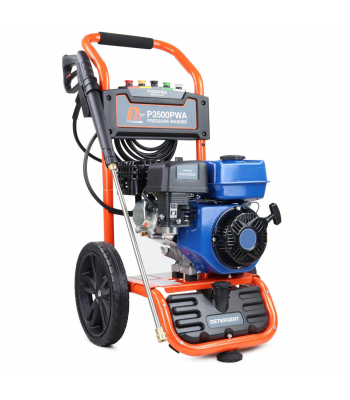

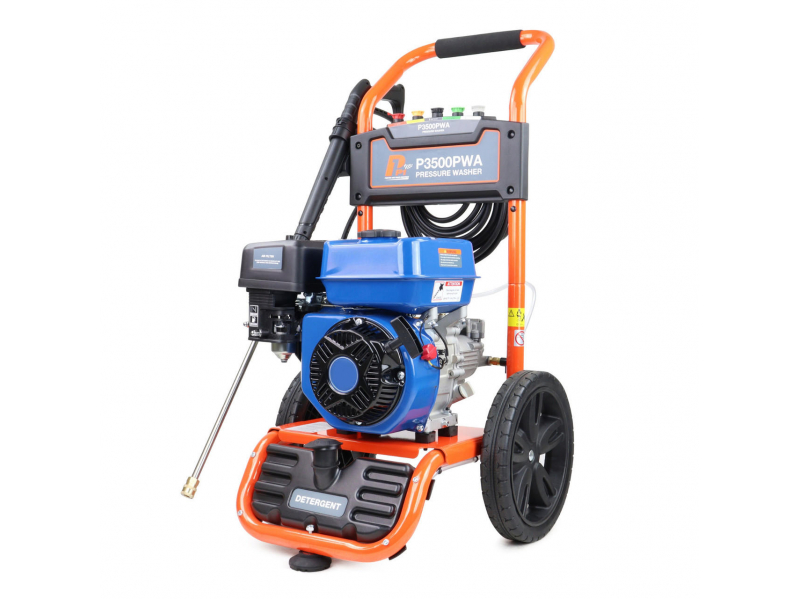

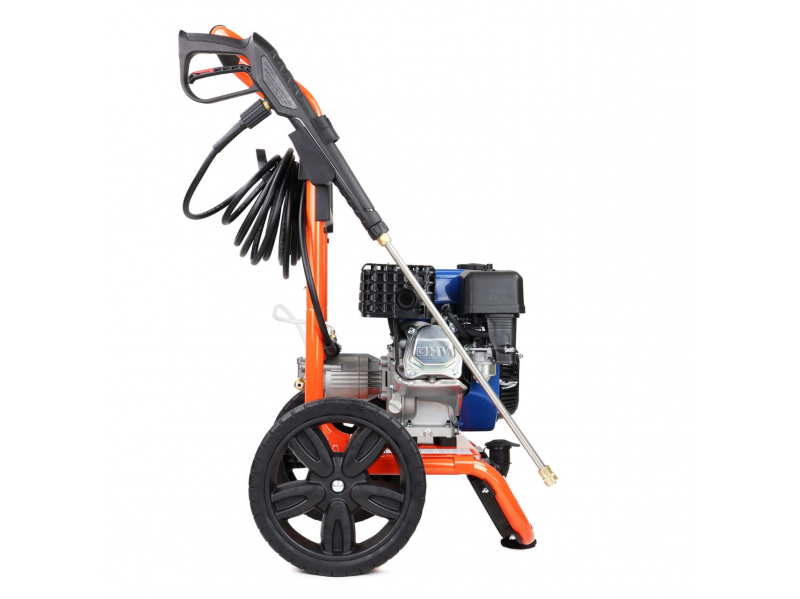

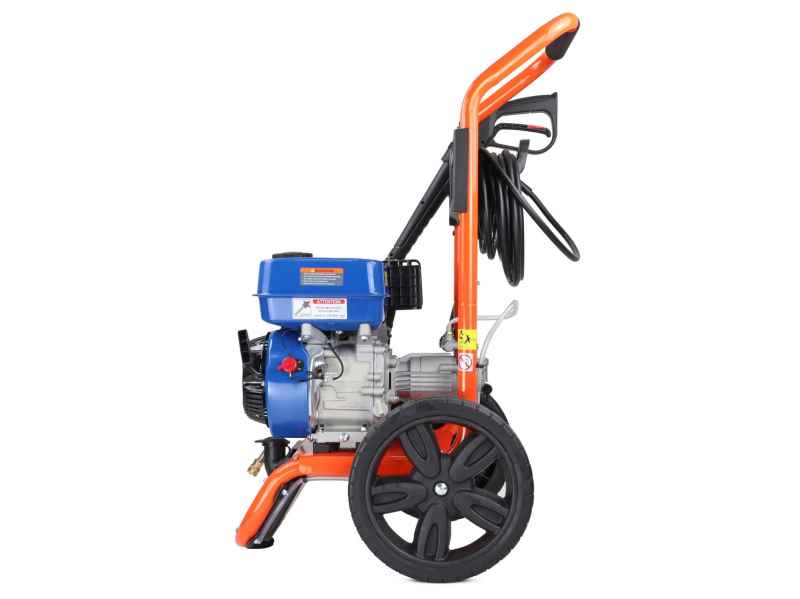

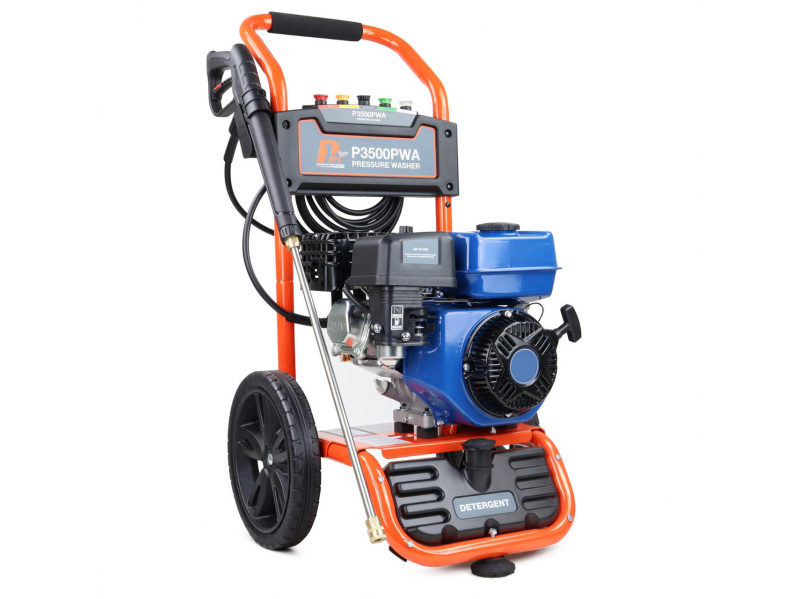

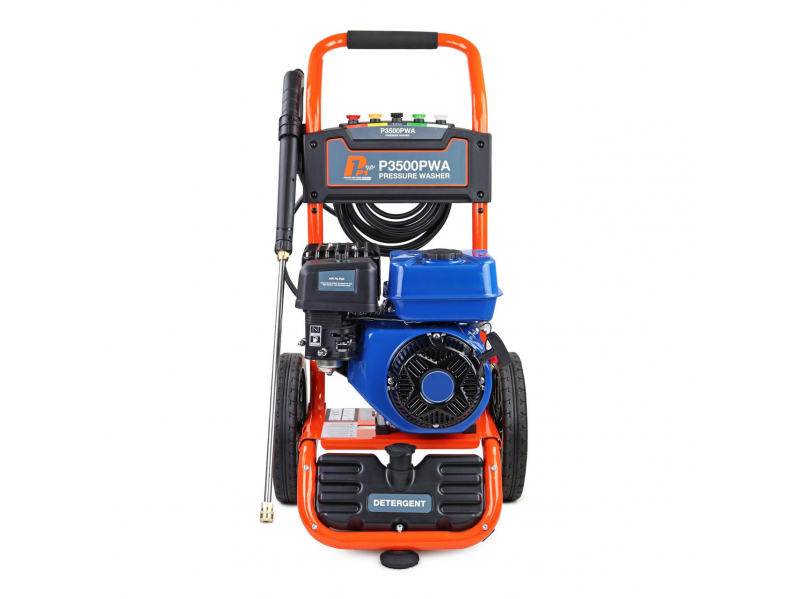

The P3500PWA is a powerful portable petrol pressure washer by Position One (P1) Power Equipment. The Pressure Washer is powered by a 212cc 4 stroke petrol engine which produces 7hp and 5.6kW of output power.

This high-performance petrol jet washer is perfect for home and DIY use. If you have a patio or driveway to clean, this is the machine for the job.

Petrol Pressure Washer vs Electric Pressure Washer

The table below shows the huge difference in performance between this powerful petrol pressure washer and typical DIY electric pressure washers on the market.

The assembly is straightforward and takes just 5 minutes

1. Insert the stub axles through the wheels and into the holes in the frame and secure them with the R-clips.
2. The upper handle inserts into the lower frame and is held in place by spring-loaded ball connectors.
3. Fill the engine with 600ml of SAE30 engine oil. (Do not overfill).
4. Fill the petrol tank with fresh unleaded petrol. (Do not overfill).
5. Connect the high-pressure hose to the pump and trigger gun with the M22 threaded connectors.
6. Select the nozzle required and push firmly into the lance quick release fitting.
7. Connect your garden hose to the pump inlet using the quick release garden hose connector supplied.
8. How to start a Petrol Power Washer
9. Check engine oil level (must be to the top of the oil filler neck) and fuel level.
10. Petrol ON/OFF switch to the right (ON)
11. Choke to left (START)
12. Throttle to middle position
13. Turn on mains water supply
14. Hold in the trigger on the lance
15. Pull recoil start firmly until the engine starts
16. Move the choke lever to the right (RUN).
17. Operating the P3500PWA Petrol Power Washer

Important

Do not run the engine without a water supply connected to the pump. The water acts as a coolant and lubricant for the high-pressure pump. If there is no mains water supply connected to the pump, it will overheat the seals and valves and cause permanent damage. Always use fresh mains water. If dirty water is used it can cause damage to the internal parts of the high-pressure pump.

High Pressure Axial Pump

The three-cylinder high-pressure axial pump is fitted with a thermal protection safety valve. If the pressure washer is run without the trigger gun being squeezed open and water flowing through the pump, then the water in the pump will recirculate around the pump and heat up. To prevent the pump from overheating and damaging the seals the thermal protection valve will open and discharge the hot water, which is replaced with fresh cool water. If possible, switch the engine off when not pressure washing. This saves fuel and wear and tear.

Pressure Washer Nozzles

Select the required nozzle and be sure to push it firmly into the quick release fitting on the lance. For normal pressure washing hold the nozzle about 30cm from the object being pressure washed. To use the detergent function, place the black nozzle in the lance and the pressure washer will draw the liquid detergent from the built-in tank. This is a low-pressure nozzle, so when the soap has been applied, change back to the high-pressure nozzle to finish cleaning.

212cc 7hp OHV Engine

The Axial pump is driven by a 212cc 7hp OHV engine. The OHV engines benefit from low-end torque, fuel-saving and emissions-cutting OHV technology and more compact size when compared to an OHC engine.

Warning

Never point the high-pressure lance at people or animals. Never operate this petrol pressure washer indoors or in a confined space as petrol engines produce lethal Carbon Monoxide fumes. Always switch the engine off and allow it to cool before refuelling.

Maintenance

Check the engine oil level daily- it can be filled to the top of the oil filler neck with SAE30 or 15w40 engine oil. Oil filler cap (5.2).

Specifications
