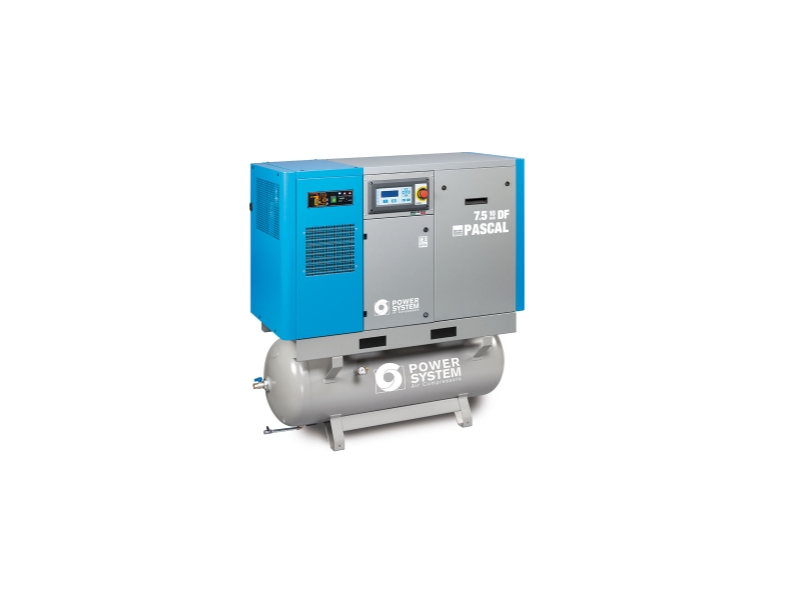

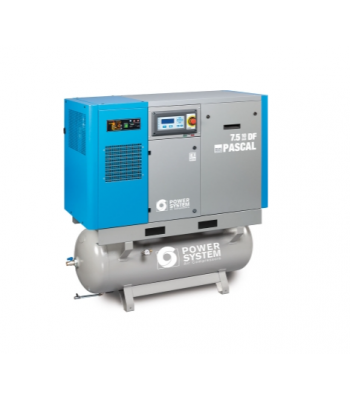

PASCAL 2.2-08-270 DF 2.2kW, 8 Bar, 270Lt Receiver & Dryer 400V

The new PASCAL screw compressors have been designed to offer modularity and flexibility to provide multiple solutions suitable for different user's requirements. The range consists of floor mounted and receiver mounted with or without integrated refrigerated dryer. All models from 2.2kW to 15kW benefit from an intelligent electronic controller to guarantee optimum monitoring and regulation of the compressor’s operation.

HIGHLIGHTS:

• Flexible Range - from 2.2kW to 15kW as floor mounted or air receiver mounted (270Lt/500Lt from 2.2kW to 15kW and 500Lt from 11kW to 15kW). All models are available with or without integral refrigerated air dryer. Pressure range at 8, 10 and 13 Bar (13 Bar from 7.5kW).
• Refrigerated Air Dryer - the PASCAL range is available with an air treatment module (DF models) including a high performance refrigerated air dryer. This allows the compressor in the DF version to provide both dry and clean compressed air to quality standard classification Class 4 for humidity, in accordance with ISO 8573-1.
• DNAir1 Electronic Controllers - the advanced controllers fitted to the PASCAL range have been specifically developed to guarantee optimum monitoring and regulation of the compressor's operation, allowing flexibility and full programming of the complete compressed air station for maximum efficiency and safety.
• Belt Driven Transmission - the highly developed POLY-V belt-drive ensures significantly lower power losses and three times the service life compared to standard range type belts fitted to other compressors on the market. Belt tensioning is carried out through a slider system.
• Cooling system - the centrifugal fan is activated automatically by the thermostatic control through the DNAir controller. This allows the compressor to quickly reach and precisely maintain the ideal operating temperature.
• Thermostatic Valve - the thermostatic valve regulates the oil temperature, preventing the formation of condensate inside the oil-separator vessel.
• Low Noise Levels - the centrifugal fan design along with the careful arrangement of all other components within the cabinet in addition to the extensive sound insulation results in the PASCAL, offering very low operating noise levels.
• Compact, Space Saving Design - the compact design is ideal for installation when space is restricted or in situations when the compressor needs to be installed near the production area.
• Ease of access to all components all main components can be readily accessed from the front access door. This allows convenient inspection with fast and simple maintenance.
