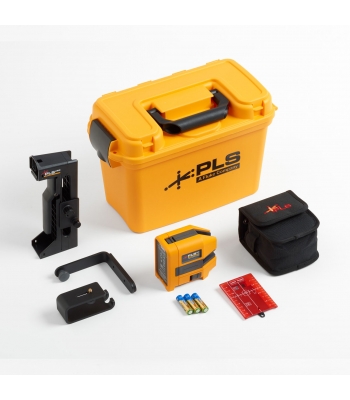

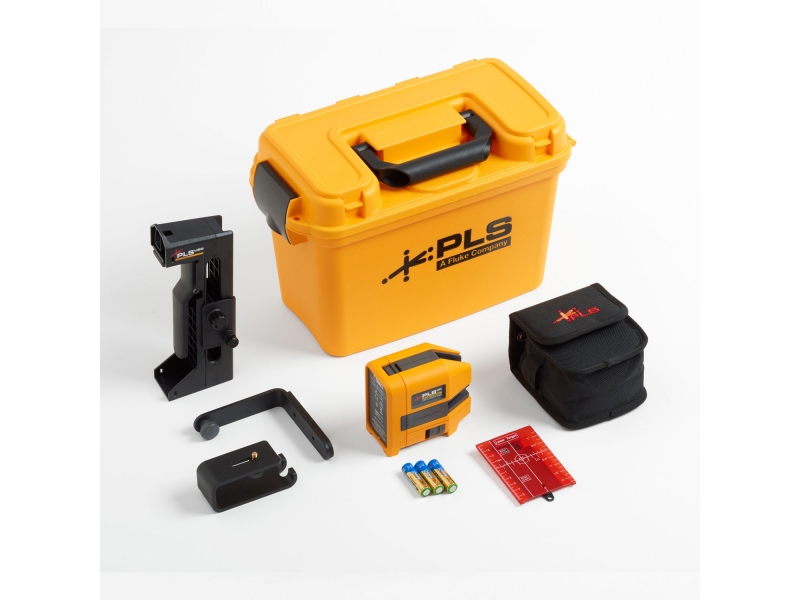

- PLS 6R laser | Nylon pouch

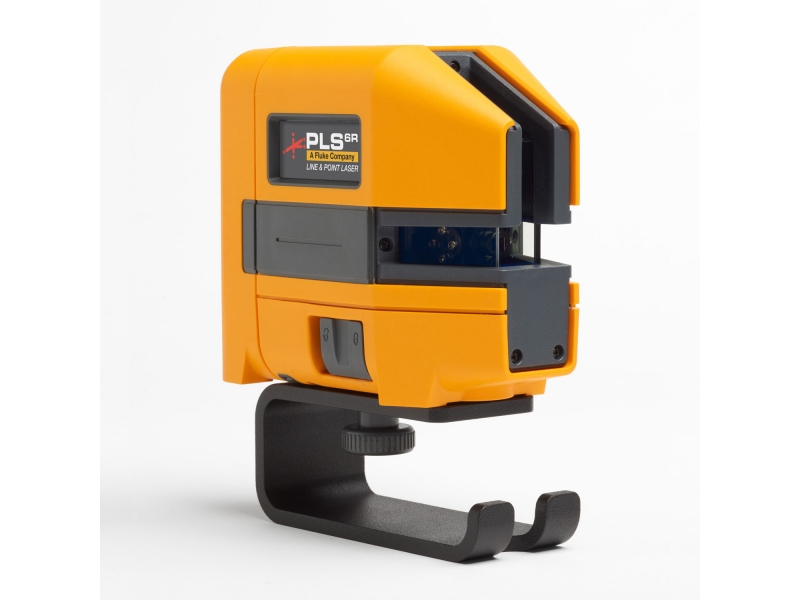

- Magnetic, height adjustable bracket
- Magnetic L bracket | Floor stand
- Hard carry case | 3 x AA alkaline batteries
- Red reflective target
- 3 year warranty
Battery - 3 x AA Alkaline IEC LR6
Battery life – (continuous use) Red - ≥ 8 hours / Green - ≥ 3 hours

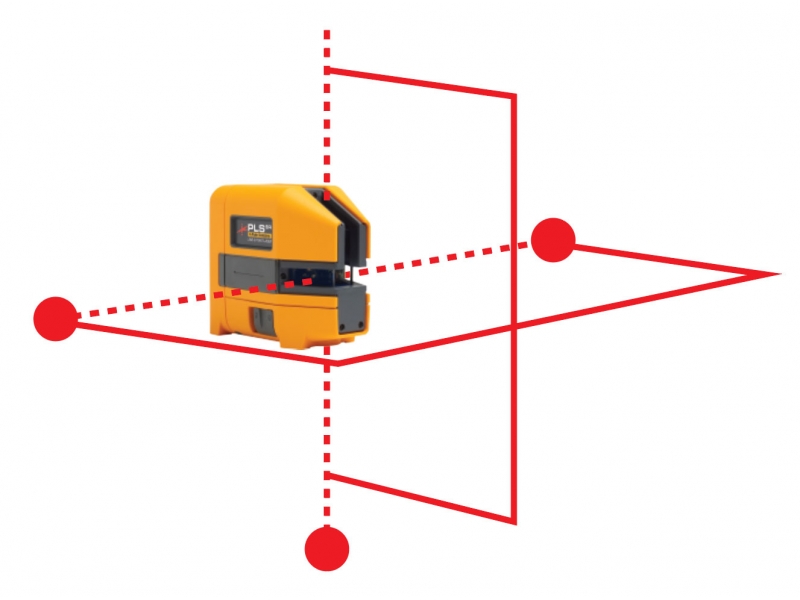

Point laser direction (6 only) - 90° up, down, left, right
Line fan angle – horizontal - ≥ 180°
Line fan angle – vertical - ≥ 130°
Working range – Point laser (6 only) - ≤30 m (100 ft.) / Line laser (without SLD) - ≤15 m (50 ft.) / Line laser (with SLD) - 6 m to 60 m (20 ft. to 200 ft.)
Accuracy - ≤3 mm @ 10 m (≤1/8 in at 30 ft.)
Laser levelling - System - Automatic, Pendulum / Range - 4 °
Point laser diameter - ≤ 2 mm at 5 m
Operating temperature - -10 °C to 50 °C (14 °F to 122 °F)
Storage temperature - -18 °C to 50 °C (with batteries) / -20 °C to 70 °C (without batteries)
Relative humidity - 0 % to 90 % (0 °C to 35 °C) / 0 % to 75 % (35 °C to 40 °C) / 0 % to 45 % (40 °C to 50 °C)
Size (h x w x l) - 116 mm x 64 mm x 104 mm
Weight - ~0.6 kg (1.3 lb.)
Safety - IEC 61010-1: Pollution Degree 2
Laser - Class 2
