Available (Next Working Day Delivery (if ordered by 2pm))
Quote Ref: @109879
Product ID: presto_631377
Related Products: See all related products
Manufacturer: Presto
List Price: £63.71 (£76.45 inc VAT)
Web Price: (£22.84 ex VAT) £27.41 (inc VAT)

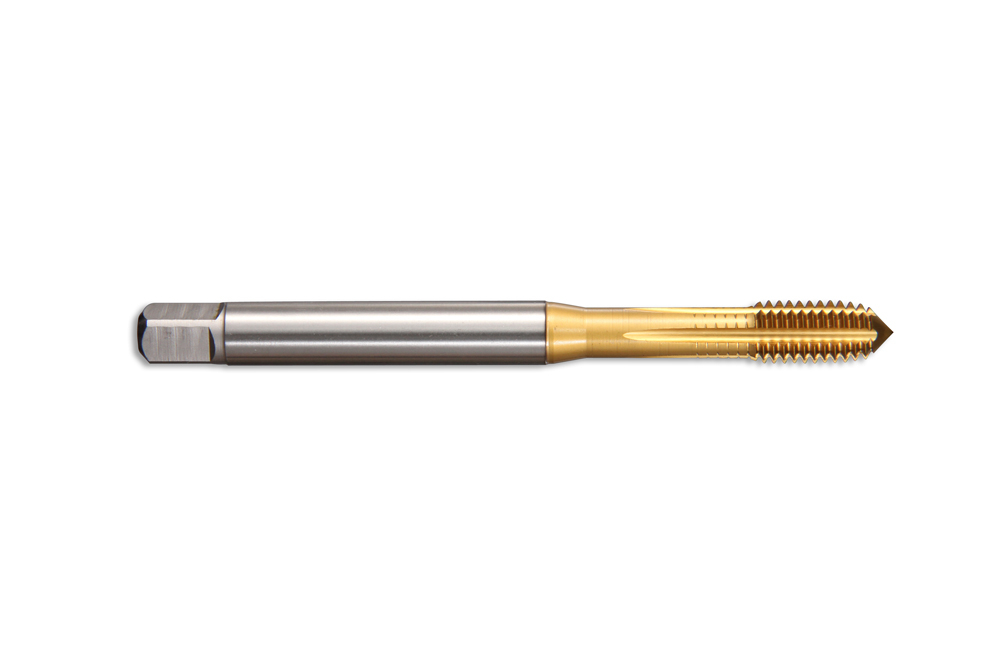

27.41 2024-12-21Fluteless tap with a 2-4 thread lead. For roll tapping in materials with an elasticity of over 10% up to 900 N/mm2. Special attention is required to obtain the correct core hole size. Available with lubrication grooves for deeper threads over 2.5 x diameter and to produce a more accurate thread form.
Tool Type: Fluteless Roll Tap
Commodity Code: 82074010
Matrial: HSSE PM
Finish: Titanium Nitride Coated
Shank Type: Straight Shank
| Code | Description | Barcode | Country | Pack Qty | Kg |
|---|---|---|---|---|---|
| 631377-02653 | M3 x 0.5 DIN371 M Fluteless Roll Tap - FCS | 5011315086431 | PL | 1 | 0.005 |
| 631377-03053 | M4 x 0.7 DIN371 M Fluteless Roll Tap - FCS | 5011315086455 | PL | 1 | 0.008 |
| 631377-03453 | M5 x 0.8 DIN371 M Fluteless Roll Tap - FCS | 5011315086479 | PL | 1 | 0.013 |
| 631377-03653 | M6 x 1.0 DIN371 M Fluteless Roll Tap - FCS | 5011315086493 | PL | 1 | 0.017 |
| 631377-04053 | M8 x 1.25 DIN371 M Fluteless Roll Tap - FCS | 5011315086530 | PL | 1 | 0.034 |
| 631377-04453 | M10 x 1.5 DIN371 M Fluteless Roll Tap - FCS | 5011315086578 | PL | 1 | 0.054 |
| Code | Size | Flute Length | Overall Length | Shank Diam | Helix Angle | Square A/F | Square Length | Tapping Drill Diam |
|---|---|---|---|---|---|---|---|---|
| 631377-02653 | M3 x 0.5 | 5mm | 56mm | 3.5 | DIN371 | Right Hand | 2.8 | 5.0 |
| 631377-03053 | M4 x 0.7 | 7mm | 63mm | 4.5 | DIN371 | Right Hand | 3.55 | 6.0 |
| 631377-03453 | M5 x 0.8 | 8mm | 70mm | 6.0 | DIN371 | Right Hand | 5.0 | 8.0 |
| 631377-03653 | M6 x 1.0 | 10mm | 80mm | 6.0 | DIN371 | Right Hand | 5.0 | 8.0 |
| 631377-04053 | M8 x 1.25 | 13mm | 90mm | 8.0 | DIN371 | Right Hand | 6.3 | 9.0 |
| 631377-04453 | M10 x 1.5 | 15mm | 100mm | 10.0 | DIN371 | Right Hand | 8.0 | 11.0 |
Brand: Presto
Identifier: 631377
Brand new packaged items only.
Comes with a full manufacturer warranty (not including consumable products).
Please make use of any product reviews or youtube clips we have available to learn more about the item.
This item is usually delivered within 1 working day(s).
SSL Certified Secure website to ensure secure online ordering.
Please return the item/s if not suitable for a full refund (within 7 working days of receipt).
We guarantee security of all your personal details, we do not pass on any customer information.
Accept all payment methods including all major Credit Cards, Paypal and Amazon Payments.
Order online now using our Secure SSL Certified Secure website.
Add this product to your basket and come back at any time to complete the order.
Order by phone on 01737783101.
Order with an official purchase order by emailing sales@sitebox.ltd.uk. We will check your account status or if you do not hold an account we will credit check your organisation, confirm and process your order. Please note the first order(s) will always need to be paid upfront unless you are a government linked organisation. Goods remain the property of Sitebox Ltd until paid for in full as per our full terms and conditions.
Fluteless tap with a 2-4 thread lead. For roll tapping in materials with an elasticity of over 10% up to 900 N/mm2. Special attention is required to obtain the correct core hole ... read on
Fluteless tap with a 2-4 thread lead. For roll tapping in materials with an elasticity of over 10% up to 900 N/mm2. Special attention is required to obtain the correct core hole si... read on
Fluteless tap with a 2-4 thread lead. For roll tapping in materials with an elasticity of over 10% up to 900 N/mm2. Special attention is required to obtain the correct core hole si... read on
| Option | Price Difference | |
|---|---|---|
| M3 x 0.5 DIN371 M Fluteless Roll Tap - FCS - 631377-02653 | none | |
| M4 x 0.7 DIN371 M Fluteless Roll Tap - FCS - 631377-03053 | +£0.29 | |
| M5 x 0.8 DIN371 M Fluteless Roll Tap - FCS - 631377-03453 - (out of stock) | +£0.29 | |
| M6 x 1.0 DIN371 M Fluteless Roll Tap - FCS - 631377-03653 | +£1.18 | |
| M8 x 1.25 DIN371 M Fluteless Roll Tap - FCS - 631377-04053 | +£6.36 | |
| M10 x 1.5 DIN371 M Fluteless Roll Tap - FCS - 631377-04453 | +£11.70 |
