Product ID: presto_631363
Related Products: See all related products
Manufacturer: Presto
List Price: £19.95 (£23.94 inc VAT)
Web Price: (£10.59 ex VAT) £12.71 (inc VAT)

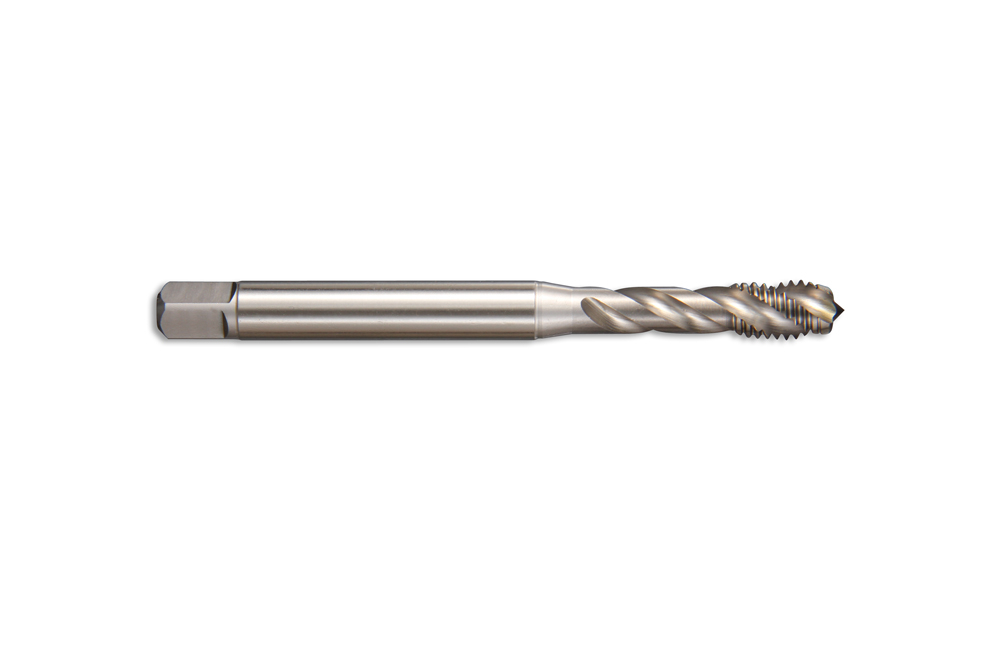

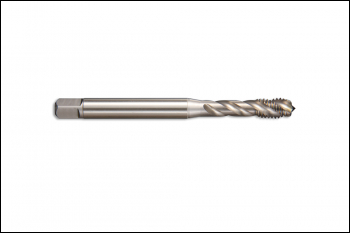

12.71 2024-12-04Machine tap with 40° spiral flute. Short chamfer permits work on steel up to 750 N/mm2 and Aluminium alloys with more than 0.5% Si.
Tool Type: Spiral Flute Tap
Commodity Code: 82074010
Matrial: HSSE
Finish: Bright or TiN
Shank Type: Straight Shank
| Code | Description | Barcode | Country | Pack Qty | Kg |
|---|---|---|---|---|---|
| 631363-02620 | M3 x 0.5 DIN371 M SP/FL Machine Tap - R40N | 5011315085649 | PL | 1 | 0.005 |
| 631363-02623 | M3 x 0.5 DIN371 M SP/FL Machine Tap - R40N | 5011315085663 | PL | 1 | 0.005 |
| 631363-03020 | M4 x 0.7 DIN371 M SP/FL Machine Tap - R40N | 5011315085700 | PL | 1 | 0.008 |
| 631363-03023 | M4 x 0.7 DIN371 M SP/FL Machine Tap - R40N | 5011315085724 | PL | 1 | 0.008 |
| 631363-03420 | M5 x 0.8 DIN371 M SP/FL Machine Tap - R40N | 5011315085762 | PL | 1 | 0.013 |
| 631363-03423 | M5 x 0.8 DIN371 M SP/FL Machine Tap - R40N | 5011315085786 | PL | 1 | 0.013 |
| 631363-03620 | M6 x 1.0 DIN371 M SP/FL Machine Tap - R40N | 5011315085793 | PL | 1 | 0.017 |
| 631363-03623 | M6 x 1.0 DIN371 M SP/FL Machine Tap - R40N | 5011315085816 | PL | 1 | 0.017 |
| 631363-04020 | M8 x 1.25 DIN371 M SP/FL Machine Tap - R40N | 5011315085823 | PL | 1 | 0.034 |
| 631363-04023 | M8 x 1.25 DIN371 M SP/FL Machine Tap - R40N | 5011315085847 | PL | 1 | 0.034 |
| 631363-04420 | M10 x 1.5 DIN371 M SP/FL Machine Tap - R40N | 5011315085854 | PL | 1 | 0.054 |
| 631363-04423 | M10 x 1.5 DIN371 M SP/FL Machine Tap - R40N | 5011315085878 | PL | 1 | 0.054 |
| Code | Size | Flute Length | Overall Length | Shank Diam | Helix Angle | Square A/F | Square Length | Tapping Drill Diam |
|---|---|---|---|---|---|---|---|---|
| 631363-02620 | M3 x 0.5 | 5mm | 56mm | 3.5 | DIN371 | Right Hand | 2.8 | 5.0 |
| 631363-02623 | M3 x 0.5 | 5mm | 56mm | 3.5 | DIN371 | Right Hand | 2.8 | 5.0 |
| 631363-03020 | M4 x 0.7 | 7mm | 63mm | 4.5 | DIN371 | Right Hand | 3.55 | 6.0 |
| 631363-03023 | M4 x 0.7 | 7mm | 63mm | 4.5 | DIN371 | Right Hand | 3.55 | 6.0 |
| 631363-03420 | M5 x 0.8 | 8mm | 70mm | 6.0 | DIN371 | Right Hand | 5.0 | 8.0 |
| 631363-03423 | M5 x 0.8 | 8mm | 70mm | 6.0 | DIN371 | Right Hand | 5.0 | 8.0 |
| 631363-03620 | M6 x 1.0 | 10mm | 80mm | 6.0 | DIN371 | Right Hand | 5.0 | 8.0 |
| 631363-03623 | M6 x 1.0 | 10mm | 80mm | 6.0 | DIN371 | Right Hand | 5.0 | 8.0 |
| 631363-04020 | M8 x 1.25 | 13mm | 90mm | 8.0 | DIN371 | Right Hand | 6.3 | 9.0 |
| 631363-04023 | M8 x 1.25 | 13mm | 90mm | 8.0 | DIN371 | Right Hand | 6.3 | 9.0 |
| 631363-04420 | M10 x 1.5 | 15mm | 100mm | 10.0 | DIN371 | Right Hand | 8.0 | 11.0 |
| 631363-04423 | M10 x 1.5 | 15mm | 100mm | 10.0 | DIN371 | Right Hand | 8.0 | 11.0 |
Brand: Presto
Identifier: 631363
Brand new packaged items only.
