Product ID: presto_631370
Related Products: See all related products
Manufacturer: Presto
List Price: £31.87 (£38.24 inc VAT)
Web Price: (£13.92 ex VAT) £16.70 (inc VAT)

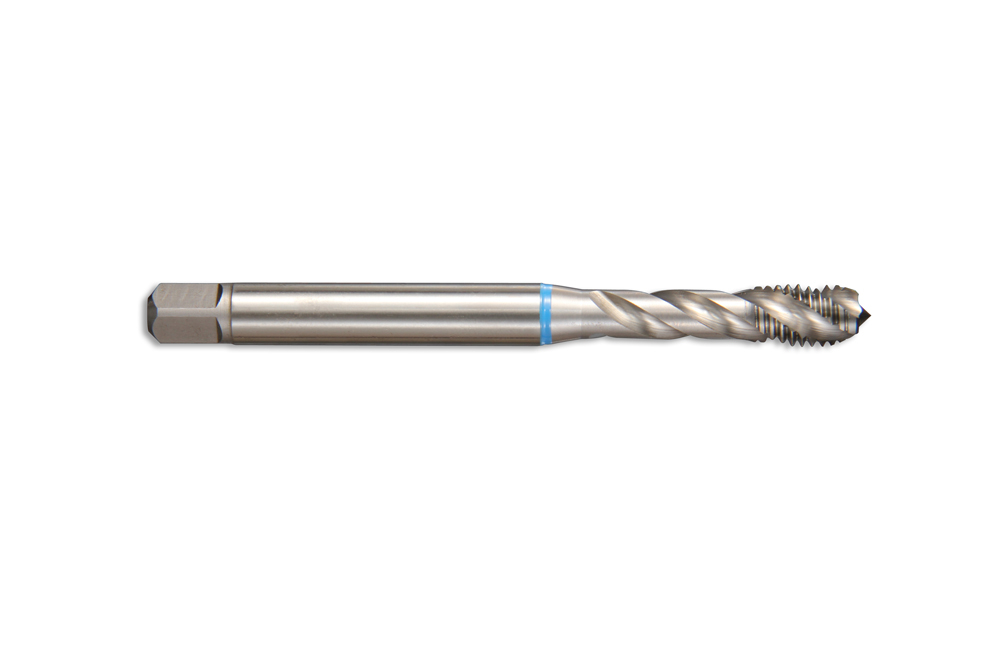

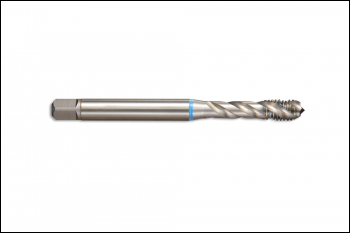

16.70 2025-01-21Machine taps with 40° spiral flutes. A special cutting geometry, together with a surface finish makes this tap very suitable for tough and work hardening materials such as stainless steel and heat resistant steels up to 850N/mm2. Has the capability to thread up to 2.5 x diameter. Resists tearing of the finished thread on reversal.
Tool Type: Spiral Flute Tap
Commodity Code: 82074010
Matrial: HSSE
Finish: Bright Finish
Shank Type: Straight Shank
| Code | Description | Barcode | Country | Pack Qty | Kg |
|---|---|---|---|---|---|
| 631370-02620 | M3 x 0.5 DIN371 M SP/FL Machine Tap - R40VAT | 5011315085946 | PL | 1 | 0.005 |
| 631370-03020 | M4 x 0.7 DIN371 M SP/FL Machine Tap - R40VAT | 5011315086004 | PL | 1 | 0.008 |
| 631370-03420 | M5 x 0.8 DIN371 M SP/FL Machine Tap - R40VAT | 5011315086066 | PL | 1 | 0.013 |
| 631370-03620 | M6 x 1.0 DIN371 M SP/FL Machine Tap - R40VAT | 5011315086127 | PL | 1 | 0.017 |
| 631370-04020 | M8 x 1.25 DIN371 M SP/FL Machine Tap - R40VAT | 5011315086189 | PL | 1 | 0.034 |
| 631370-04420 | M10 x 1.5 DIN371 M SP/FL Machine Tap - R40VAT | 5011315086240 | PL | 1 | 0.054 |
| Code | Size | Flute Length | Overall Length | Shank Diam | Helix Angle | Square A/F | Square Length | Tapping Drill Diam |
|---|---|---|---|---|---|---|---|---|
| 631370-02620 | M3 x 0.5 | 5mm | 56mm | 3.5 | DIN371 | Right Hand | 2.8 | 5.0 |
| 631370-03020 | M4 x 0.7 | 7mm | 63mm | 4.5 | DIN371 | Right Hand | 3.55 | 6.0 |
| 631370-03420 | M5 x 0.8 | 8mm | 70mm | 6.0 | DIN371 | Right Hand | 5.0 | 8.0 |
| 631370-03620 | M6 x 1.0 | 10mm | 80mm | 6.0 | DIN371 | Right Hand | 5.0 | 8.0 |
| 631370-04020 | M8 x 1.25 | 13mm | 90mm | 8.0 | DIN371 | Right Hand | 6.3 | 9.0 |
| 631370-04420 | M10 x 1.5 | 15mm | 100mm | 10.0 | DIN371 | Right Hand | 8.0 | 11.0 |
