Product ID: presto_631332
Related Products: See all related products
Manufacturer: Presto
List Price: £23.36 (£28.03 inc VAT)
Web Price: (£11.54 ex VAT) £13.85 (inc VAT)

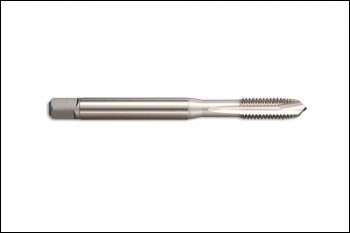

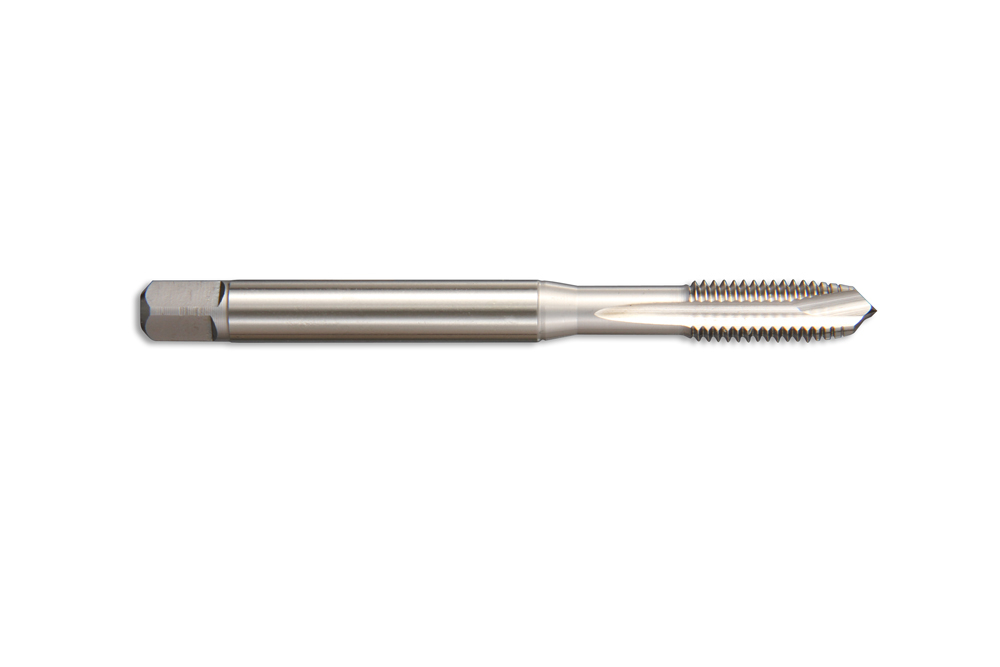

13.85 2024-12-21Spiral point Machine tap with straight flutes for working in steel up to 750 N/mm2. Swarf is forced forward in the direction of the cut.
Tool Type: Spiral Point Tap
Commodity Code: 82074010
Matrial: HSSE
Finish: Bright or TiN
Shank Type: Straight Shank
| Code | Description | Barcode | Country | Pack Qty | Kg |
|---|---|---|---|---|---|
| 631332-02620 | M3 x 0.5 DIN371 M SP/PT Machine Tap - BN | 5011315084956 | PL | 1 | 0.005 |
| 631332-02623 | M3 x 0.5 DIN371 M SP/PT Machine Tap - BN | 5011315084970 | PL | 1 | 0.005 |
| 631332-03020 | M4 x 0.7 DIN371 M SP/PT Machine Tap - BN | 5011315085014 | PL | 1 | 0.008 |
| 631332-03023 | M4 x 0.7 DIN371 M SP/PT Machine Tap - BN | 5011315085038 | PL | 1 | 0.008 |
| 631332-03420 | M5 x 0.8 DIN371 M SP/PT Machine Tap - BN | 5011315085076 | PL | 1 | 0.013 |
| 631332-03423 | M5 x 0.8 DIN371 M SP/PT Machine Tap - BN | 5011315085090 | PL | 1 | 0.013 |
| 631332-03620 | M6 x 1.0 DIN371 M SP/PT Machine Tap - BN | 5011315085106 | PL | 1 | 0.017 |
| 631332-03623 | M6 x 1.0 DIN371 M SP/PT Machine Tap - BN | 5011315085120 | PL | 1 | 0.017 |
| 631332-04020 | M8 x 1.25 DIN371 M SP/PT Machine Tap - BN | 5011315085137 | PL | 1 | 0.034 |
| 631332-04023 | M8 x 1.25 DIN371 M SP/PT Machine Tap - BN | 5011315085151 | PL | 1 | 0.034 |
| 631332-04420 | M10 x 1.5 DIN371 M SP/PT Machine Tap - BN | 5011315085168 | PL | 1 | 0.054 |
| 631332-04423 | M10 x 1.5 DIN371 M SP/PT Machine Tap - BN | 5011315085182 | PL | 1 | 0.054 |
| Code | Size | Flute Length | Overall Length | Shank Diam | Helix Angle | Square A/F | Square Length | Tapping Drill Diam |
|---|---|---|---|---|---|---|---|---|
| 631332-02620 | M3 x 0.5 | 11mm | 56mm | 3.5 | DIN371 | Right Hand | 2.8 | 5.0 |
| 631332-02623 | M3 x 0.5 | 11mm | 56mm | 3.5 | DIN371 | Right Hand | 2.8 | 5.0 |
| 631332-03020 | M4 x 0.7 | 11mm | 63mm | 4.5 | DIN371 | Right Hand | 3.55 | 6.0 |
| 631332-03023 | M4 x 0.7 | 11mm | 63mm | 4.5 | DIN371 | Right Hand | 3.55 | 6.0 |
| 631332-03420 | M5 x 0.8 | 13mm | 70mm | 6.0 | DIN371 | Right Hand | 5.0 | 8.0 |
| 631332-03423 | M5 x 0.8 | 13mm | 70mm | 6.0 | DIN371 | Right Hand | 5.0 | 8.0 |
| 631332-03620 | M6 x 1.0 | 16mm | 80mm | 6.0 | DIN371 | Right Hand | 5.0 | 8.0 |
| 631332-03623 | M6 x 1.0 | 16mm | 80mm | 6.0 | DIN371 | Right Hand | 5.0 | 8.0 |
| 631332-04020 | M8 x 1.25 | 19mm | 90mm | 8.0 | DIN371 | Right Hand | 6.3 | 9.0 |
| 631332-04023 | M8 x 1.25 | 19mm | 90mm | 8.0 | DIN371 | Right Hand | 6.3 | 9.0 |
| 631332-04420 | M10 x 1.5 | 22mm | 100mm | 10.0 | DIN371 | Right Hand | 8.0 | 11.0 |
| 631332-04423 | M10 x 1.5 | 22mm | 100mm | 10.0 | DIN371 | Right Hand | 8.0 | 11.0 |
Brand: Presto
Identifier: 631332
Brand new packaged items only.
Comes with a full manufacturer warranty (not including consumable products).
Please make use of any product reviews or youtube clips we have available to learn more about the item.
This item is usually delivered within 1 working day(s).
SSL Certified Secure website to ensure secure online ordering.
Please return the item/s if not suitable for a full refund (within 7 working days of receipt).
We guarantee security of all your personal details, we do not pass on any customer information.
Accept all payment methods including all major Credit Cards, Paypal and Amazon Payments.
Order online now using our Secure SSL Certified Secure website.
Add this product to your basket and come back at any time to complete the order.
Order by phone on 01737783101.
Order with an official purchase order by emailing sales@sitebox.ltd.uk. We will check your account status or if you do not hold an account we will credit check your organisation, confirm and process your order. Please note the first order(s) will always need to be paid upfront unless you are a government linked organisation. Goods remain the property of Sitebox Ltd until paid for in full as per our full terms and conditions.
Straight Flute Machine Tap with short chamfer (2-3 threads) for through and blind holes in free cutting materials up to 850 N/mm2. Tool Type: Straight Flute Tap Commodity Code:... read on
Machine taps with 40° spiral flutes. A special cutting geometry, together with a surface finish makes this tap very suitable for tough and work hardening materials such as stainle... read on
Straight flute Machine tap with short chamfer. The unique geometry with surface treatment is especially suitable for vertical tapping in grey cast iron.Tool Type: Straight Flute Ta... read on
Machine tap with 15° slow right hand helix for use in high tensile Steel over 900 N/mm2.Tool Type: Slow Spiral TapCommodity Code: 82074010Matrial: HSSEFinish: Titanium Carbo Nitri... read on
Spiral point Machine tap with straight flutes for working in steel up to 750 N/mm2. Swarf is forced forward in the direction of the cut.Tool Type: Spiral Point TapCommodity Code: 8... read on
Machine tap with 40° spiral flute. Short chamfer permits work on steel up to 750 N/mm2 and Aluminium alloys with more than 0.5% Si.Tool Type: Spiral Flute TapCommodity Code: 82074... read on
Straight Flute Machine Tap with short chamfer (2-3 threads) for through and blind holes in free cutting materials up to 850 N/mm2.Tool Type: Straight Flute TapCommodity Code: 82074... read on
Straight flute Machine tap with short chamfer. The unique geometry with surface treatment is especially suitable for vertical tapping in grey cast iron.Tool Type: Straight Flute Ta... read on
Machine tap with 15° slow right hand helix for use in high tensile Steel over 900 N/mm2.Tool Type: Slow Spiral TapCommodity Code: 82074010Matrial: HSSE PMFinish: Titanium Carbo Ni... read on
Spiral point Machine tap with a surface treatment for tough steels with elasticity >30%. The unique geometry helps to avoid pick up and resists work hardening tendencies in materia... read on
Machine taps with 40° spiral flutes. A special cutting geometry, together with a surface finish makes this tap very suitable for tough and work hardening materials such as stainle... read on
Straight Flute Machine Tap with short chamfer (2-3 threads) for through and blind holes in free cutting materials up to 850 N/mm2.Tool Type: Straight Flute TapCommodity Code: 82074... read on
Spiral point Machine tap with straight flutes for working in steel up to 750 N/mm2. Swarf is forced forward in the direction of the cut.Tool Type: Spiral Point TapCommodity Code: 8... read on
Spiral point Machine tap with a surface treatment for tough steels with elasticity >30%. The unique geometry helps to avoid pick up and resists work hardening tendencies in materia... read on
Machine taps with 40° spiral flutes. A special cutting geometry, together with a surface finish makes this tap very suitable for tough and work hardening materials such as stainle... read on
Spiral point Machine tap with a surface treatment for tough steels with elasticity >30%. The unique geometry helps to avoid pick up and resists work hardening tendencies in materia... read on
Machine taps with 40° spiral flutes. A special cutting geometry, together with a surface finish makes this tap very suitable for tough and work hardening materials such as stainle... read on
Spiral point Machine tap with a surface treatment for tough steels with elasticity >30%. The unique geometry helps to avoid pick up and resists work hardening tendencies in materia... read on
| Option | Price Difference | |
|---|---|---|
| M3 x 0.5 DIN371 M SP/PT Machine Tap - BN - 631332-02620 | none | |
| M3 x 0.5 DIN371 M SP/PT Machine Tap - BN - 631332-02623 | +£2.08 | |
| M4 x 0.7 DIN371 M SP/PT Machine Tap - BN - 631332-03020 | +£0.31 | |
| M4 x 0.7 DIN371 M SP/PT Machine Tap - BN - 631332-03023 | +£2.38 | |
| M5 x 0.8 DIN371 M SP/PT Machine Tap - BN - 631332-03420 - (out of stock) | +£0.90 | |
| M5 x 0.8 DIN371 M SP/PT Machine Tap - BN - 631332-03423 | +£2.98 | |
| M6 x 1.0 DIN371 M SP/PT Machine Tap - BN - 631332-03620 | +£0.90 | |
| M6 x 1.0 DIN371 M SP/PT Machine Tap - BN - 631332-03623 | +£3.57 | |
| M8 x 1.25 DIN371 M SP/PT Machine Tap - BN - 631332-04020 | +£1.80 | |
| M8 x 1.25 DIN371 M SP/PT Machine Tap - BN - 631332-04023 | +£5.95 | |
| M10 x 1.5 DIN371 M SP/PT Machine Tap - BN - 631332-04420 - (out of stock) | +£3.88 | |
| M10 x 1.5 DIN371 M SP/PT Machine Tap - BN - 631332-04423 | +£8.92 |
