Manufacturer: Presto
List Price: £39.82 (£47.78 inc VAT)
Web Price: (£16.15 ex VAT) £19.38 (inc VAT)

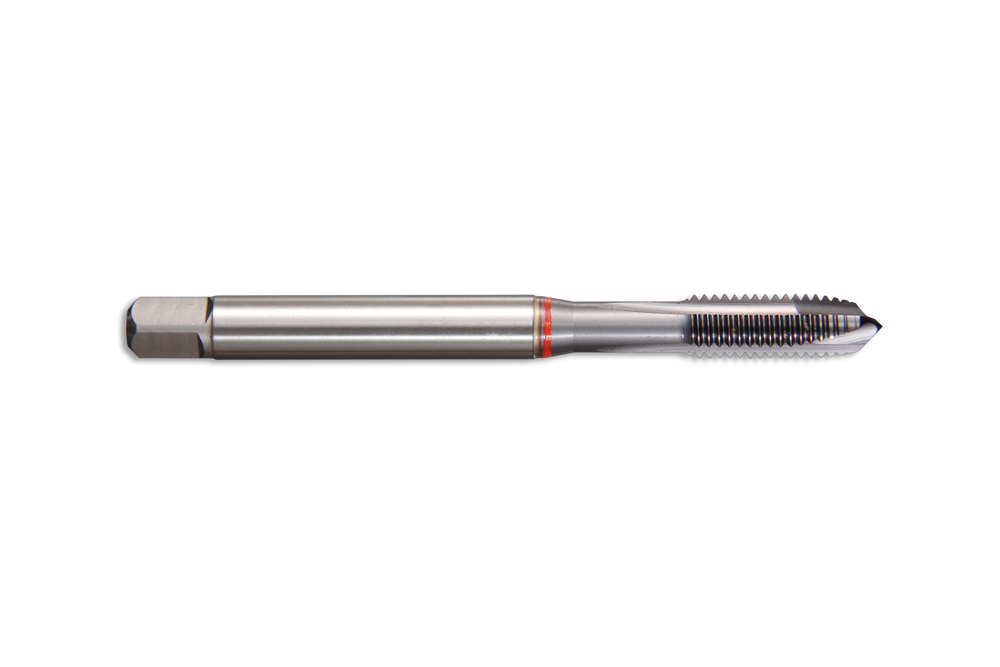

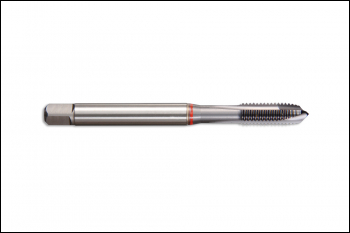

19.38 2024-12-21Spiral point Machine tap with a surface treatment for tough steels with elasticity >30%. The unique geometry helps to avoid pick up and resists work hardening tendencies in materials such as Stainless Steel.
Tool Type: Spiral Point Tap
Commodity Code: 82074010
Matrial: HSSE PM
Finish: Titanium Carbo Nitride Coated
Shank Type: Straight Shank
| Code | Description | Barcode | Country | Pack Qty | Kg |
|---|---|---|---|---|---|
| 651346-02624 | M3 x 0.5 DIN371 M SP/PT Machine Tap - BVAX | 5011315100083 | PL | 1 | 0.005 |
| 651346-03024 | M4 x 0.7 DIN371 M SP/PT Machine Tap - BVAX | 5011315100113 | PL | 1 | 0.008 |
| 651346-03424 | M5 x 0.8 DIN371 M SP/PT Machine Tap - BVAX | 5011315100151 | PL | 1 | 0.013 |
| 651346-03624 | M6 x 1.0 DIN371 M SP/PT Machine Tap - BVAX | 5011315100175 | PL | 1 | 0.017 |
| 651346-04024 | M8 x 1.25 DIN371 M SP/PT Machine Tap - BVAX | 5011315100205 | PL | 1 | 0.034 |
| 651346-04424 | M10 x 1.5 DIN371 M SP/PT Machine Tap - BVAX | 5011315100236 | PL | 1 | 0.054 |
| Code | Size | Flute Length | Overall Length | Shank Diam | Helix Angle | Square A/F | Square Length | Tapping Drill Diam |
|---|---|---|---|---|---|---|---|---|
| 651346-02624 | M3 x 0.5 | 11mm | 56mm | 3.5 | DIN371 | Right Hand | 2.8 | 5.0 |
| 651346-03024 | M4 x 0.7 | 11mm | 63mm | 4.5 | DIN371 | Right Hand | 3.55 | 6.0 |
| 651346-03424 | M5 x 0.8 | 13mm | 70mm | 6.0 | DIN371 | Right Hand | 5.0 | 8.0 |
| 651346-03624 | M6 x 1.0 | 16mm | 80mm | 6.0 | DIN371 | Right Hand | 5.0 | 8.0 |
| 651346-04024 | M8 x 1.25 | 19mm | 90mm | 8.0 | DIN371 | Right Hand | 6.3 | 9.0 |
| 651346-04424 | M10 x 1.5 | 22mm | 100mm | 10.0 | DIN371 | Right Hand | 8.0 | 11.0 |
Brand: Presto
Identifier: 651346
