Available (Next Working Day Delivery (if ordered by 2pm))
Quote Ref: @109886
Product ID: presto_632532
Related Products: See all related products
Manufacturer: Presto
List Price: £41.40 (£49.68 inc VAT)
Web Price: (£16.59 ex VAT) £19.91 (inc VAT)

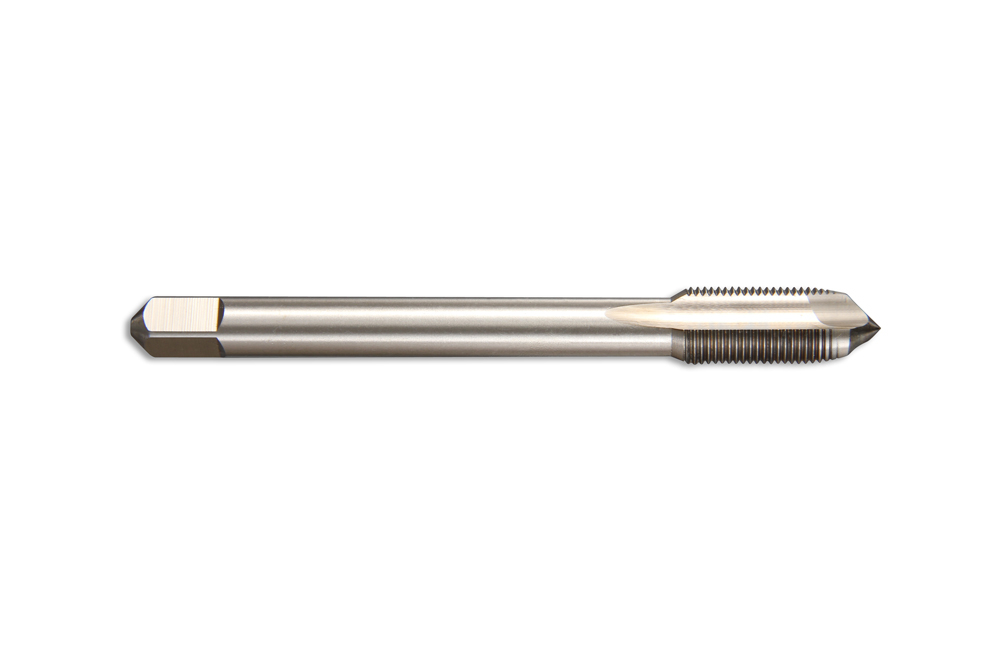

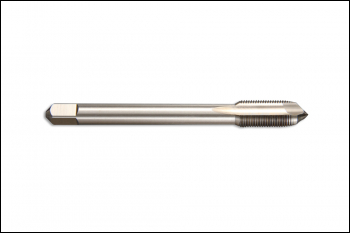

19.91 2024-12-22Spiral point Machine tap with straight flutes for working in steel up to 750 N/mm2. Swarf is forced forward in the direction of the cut.
Tool Type: Spiral Point Tap
Commodity Code: 82074010
Matrial: HSSE
Finish: Bright Finish
Shank Type: Straight Shank
| Code | Description | Barcode | Country | Pack Qty | Kg |
|---|---|---|---|---|---|
| 632532-05820 | M8 x 1.0 MF DIN374 MF SP/PT Machine Tap - BN | 5011315090742 | PL | 1 | 0.034 |
| 632532-07020 | M10 x 1.25 MF DIN374 MF SP/PT Machine Tap - BN | 5011315090810 | PL | 1 | 0.054 |
| 632532-06620 | M10 x 0.75 MF DIN374 MF SP/PT Machine Tap - BN | 5011315090827 | PL | 1 | 0.054 |
| 632532-06820 | M10 x 1.0 MF DIN374 MF SP/PT Machine Tap - BN | 5011315090834 | PL | 1 | 0.054 |
| 632532-08020 | M12 x 1.0 MF DIN374 MF SP/PT Machine Tap - BN | 5011315090926 | PL | 1 | 0.059 |
| 632532-08220 | M12 x 1.25 MF DIN374 MF SP/PT Machine Tap - BN | 5011315090902 | PL | 1 | 0.059 |
| 632532-08420 | M12 x 1.5 MF DIN374 MF SP/PT Machine Tap - BN | 5011315090933 | PL | 1 | 0.059 |
| 632532-09820 | M14 x 1.25 MF DIN374 MF SP/PT Machine Tap - BN | 5011315091022 | PL | 1 | 0.087 |
| 632532-10020 | M14 x 1.5 MF DIN374 MF SP/PT Machine Tap - BN | 5011315091039 | PL | 1 | 0.087 |
| 632532-11220 | M16 x 1.5 MF DIN374 MF SP/PT Machine Tap - BN | 5011315091114 | PL | 1 | 0.104 |
| Code | Size | Flute Length | Overall Length | Shank Diam | Helix Angle | Square A/F | Square Length | Tapping Drill Diam |
|---|---|---|---|---|---|---|---|---|
| 632532-05820 | M8 x 1.0 MF | 20mm | 90mm | 6.0 | DIN374 | Right Hand | 5.0 | 8.0 |
| 632532-07020 | M10 x 1.25 MF | 22mm | 100mm | 7.0 | DIN374 | Right Hand | 5.6 | 8.0 |
| 632532-06620 | M10 x 0.75 MF | 20mm | 90mm | 7.0 | DIN374 | Right Hand | 5.6 | 8.0 |
| 632532-06820 | M10 x 1.0 MF | 20mm | 90mm | 7.0 | DIN374 | Right Hand | 5.6 | 8.0 |
| 632532-08020 | M12 x 1.0 MF | 22mm | 100mm | 9.0 | DIN374 | Right Hand | 7.1 | 10.0 |
| 632532-08220 | M12 x 1.25 MF | 22mm | 100mm | 9.0 | DIN374 | Right Hand | 7.1 | 10.0 |
| 632532-08420 | M12 x 1.5 MF | 22mm | 100mm | 9.0 | DIN374 | Right Hand | 7.1 | 10.0 |
| 632532-09820 | M14 x 1.25 MF | 22mm | 100mm | 11.0 | DIN374 | Right Hand | 9.0 | 12.0 |
| 632532-10020 | M14 x 1.5 MF | 22mm | 100mm | 11.0 | DIN374 | Right Hand | 9.0 | 12.0 |
| 632532-11220 | M16 x 1.5 MF | 22mm | 100mm | 12.0 | DIN374 | Right Hand | 9.0 | 13.0 |
Brand: Presto
Identifier: 632532
