Manufacturer: Presto
List Price: £38.22 (£45.86 inc VAT)
Web Price: (£15.70 ex VAT) £18.84 (inc VAT)

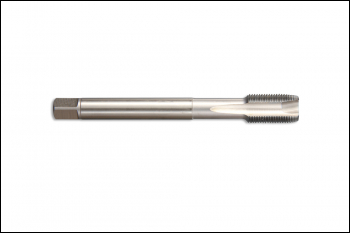

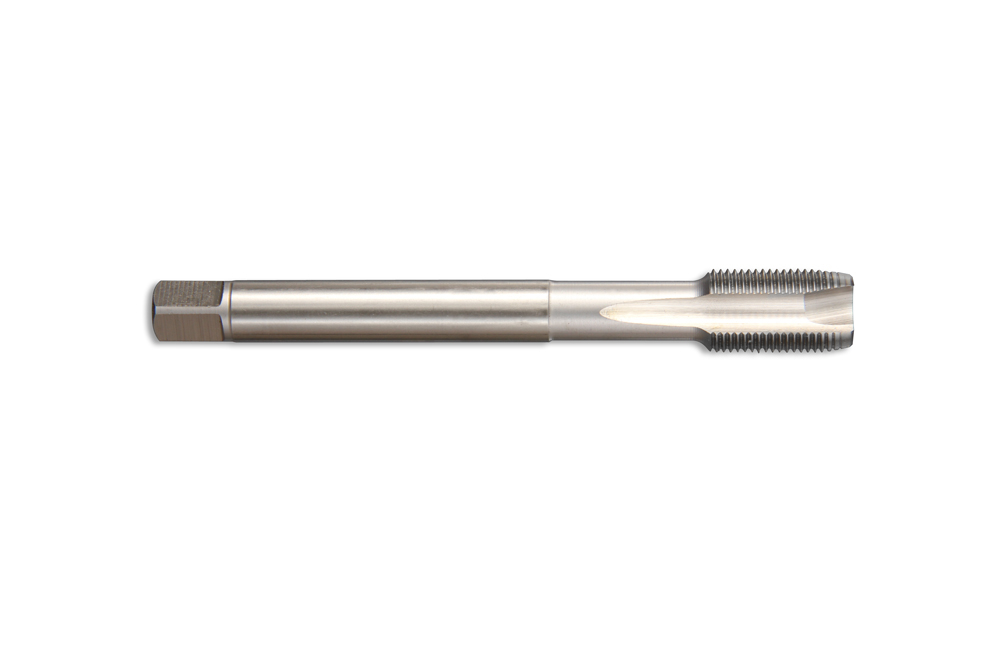

18.84 2025-01-21Straight Flute Machine Tap with short chamfer (2-3 threads) for through and blind holes in free cutting materials up to 850 N/mm2.
Tool Type: Straight Flute Tap
Commodity Code: 82074010
Matrial: HSSE
Finish: Bright Finish
Shank Type: Straight Shank
| Code | Description | Barcode | Country | Pack Qty | Kg |
|---|---|---|---|---|---|
| 632505-05820 | M8 x 1.0 MF DIN374 MF ST/FL Machine Tap - N | 5011315089982 | PL | 1 | 0.034 |
| 632505-07020 | M10 x 1.25 MF DIN374 MF ST/FL Machine Tap - N | 5011315089999 | PL | 1 | 0.054 |
| 632505-06620 | M10 x 0.75 MF DIN374 MF ST/FL Machine Tap - N | 5011315090001 | PL | 1 | 0.054 |
| 632505-06820 | M10 x 1.0 MF DIN374 MF ST/FL Machine Tap - N | 5011315090018 | PL | 1 | 0.054 |
| 632505-08020 | M12 x 1.0 MF DIN374 MF ST/FL Machine Tap - N | 5011315090056 | PL | 1 | 0.059 |
| 632505-08220 | M12 x 1.25 MF DIN374 MF ST/FL Machine Tap - N | 5011315090032 | PL | 1 | 0.059 |
| 632505-08420 | M12 x 1.5 MF DIN374 MF ST/FL Machine Tap - N | 5011315090025 | PL | 1 | 0.059 |
| 632505-09820 | M14 x 1.25 MF DIN374 MF ST/FL Machine Tap - N | 5011315090063 | PL | 1 | 0.087 |
| 632505-10020 | M14 x 1.5 MF DIN374 MF ST/FL Machine Tap - N | 5011315090070 | PL | 1 | 0.087 |
| 632505-11220 | M16 x 1.5 MF DIN374 MF ST/FL Machine Tap - N | 5011315090094 | PL | 1 | 0.104 |
| 632505-12420 | M18 x 1.5 MF DIN374 MF ST/FL Machine Tap - N | 5011315090117 | PL | 1 | 0.154 |
| 632505-12620 | M18 x 2.0 MF DIN374 MF ST/FL Machine Tap - N | 5011315090100 | PL | 1 | 0.154 |
| 632505-14020 | M20 x 1.5 MF DIN374 MF ST/FL Machine Tap - N | 5011315090124 | PL | 1 | 0.216 |
| 632505-14220 | M20 x 2.0 MF DIN374 MF ST/FL Machine Tap - N | 5011315090131 | PL | 1 | 0.216 |
| 632505-15620 | M22 x 1.5 MF DIN374 MF ST/FL Machine Tap - N | 5011315090148 | PL | 1 | 0.269 |
| 632505-15820 | M22 x 2.0 MF DIN374 MF ST/FL Machine Tap - N | 5011315090155 | PL | 1 | 0.269 |
| 632505-17220 | M24 x 1.5 MF DIN374 MF ST/FL Machine Tap - N | 5011315090179 | PL | 1 | 0.29 |
| 632505-17420 | M24 x 2.0 MF DIN374 MF ST/FL Machine Tap - N | 5011315090162 | PL | 1 | 0.29 |
| 632505-19020 | M27 x 1.5 MF DIN374 MF ST/FL Machine Tap - N | 5011315090216 | PL | 1 | 0.357 |
| 632505-19220 | M27 x 2.0 MF DIN374 MF ST/FL Machine Tap - N | 5011315090223 | PL | 1 | 0.357 |
| Code | Size | Flute Length | Overall Length | Shank Diam | Helix Angle | Square A/F | Square Length | Tapping Drill Diam |
|---|---|---|---|---|---|---|---|---|
| 632505-05820 | M8 x 1.0 MF | 20mm | 90mm | 6.0 | DIN374 | Right Hand | 5.0 | 8.0 |
| 632505-07020 | M10 x 1.25 MF | 22mm | 100mm | 7.0 | DIN374 | Right Hand | 5.6 | 8.0 |
| 632505-06620 | M10 x 0.75 MF | 20mm | 90mm | 7.0 | DIN374 | Right Hand | 5.6 | 8.0 |
| 632505-06820 | M10 x 1.0 MF | 20mm | 90mm | 7.0 | DIN374 | Right Hand | 5.6 | 8.0 |
| 632505-08020 | M12 x 1.0 MF | 22mm | 100mm | 9.0 | DIN374 | Right Hand | 7.1 | 10.0 |
| 632505-08220 | M12 x 1.25 MF | 22mm | 100mm | 9.0 | DIN374 | Right Hand | 7.1 | 10.0 |
| 632505-08420 | M12 x 1.5 MF | 22mm | 100mm | 9.0 | DIN374 | Right Hand | 7.1 | 10.0 |
| 632505-09820 | M14 x 1.25 MF | 22mm | 100mm | 11.0 | DIN374 | Right Hand | 9.0 | 12.0 |
| 632505-10020 | M14 x 1.5 MF | 22mm | 100mm | 11.0 | DIN374 | Right Hand | 9.0 | 12.0 |
| 632505-11220 | M16 x 1.5 MF | 22mm | 100mm | 12.0 | DIN374 | Right Hand | 9.0 | 13.0 |
| 632505-12420 | M18 x 1.5 MF | 25mm | 110mm | 14.0 | DIN374 | Right Hand | 11.2 | 14.0 |
| 632505-12620 | M18 x 2.0 MF | 34mm | 125mm | 14.0 | DIN374 | Right Hand | 11.2 | 14.0 |
| 632505-14020 | M20 x 1.5 MF | 25mm | 125mm | 16.0 | DIN374 | Right Hand | 12.5 | 16.0 |
| 632505-14220 | M20 x 2.0 MF | 34mm | 140mm | 16.0 | DIN374 | Right Hand | 12.5 | 16.0 |
| 632505-15620 | M22 x 1.5 MF | 25mm | 125mm | 18.0 | DIN374 | Right Hand | 14.0 | 18.0 |
| 632505-15820 | M22 x 2.0 MF | 34mm | 140mm | 18.0 | DIN374 | Right Hand | 14.0 | 18.0 |
| 632505-17220 | M24 x 1.5 MF | 28mm | 140mm | 18.0 | DIN374 | Right Hand | 14.0 | 18.0 |
| 632505-17420 | M24 x 2.0 MF | 28mm | 140mm | 18.0 | DIN374 | Right Hand | 14.0 | 18.0 |
| 632505-19020 | M27 x 1.5 MF | 28mm | 140mm | 20.0 | DIN374 | Right Hand | 16.0 | 20.0 |
| 632505-19220 | M27 x 2.0 MF | 28mm | 140mm | 20.0 | DIN374 | Right Hand | 16.0 | 20.0 |
