Manufacturer: Presto
List Price: £42.46 (£50.95 inc VAT)
Web Price: (£16.89 ex VAT) £20.27 (inc VAT)

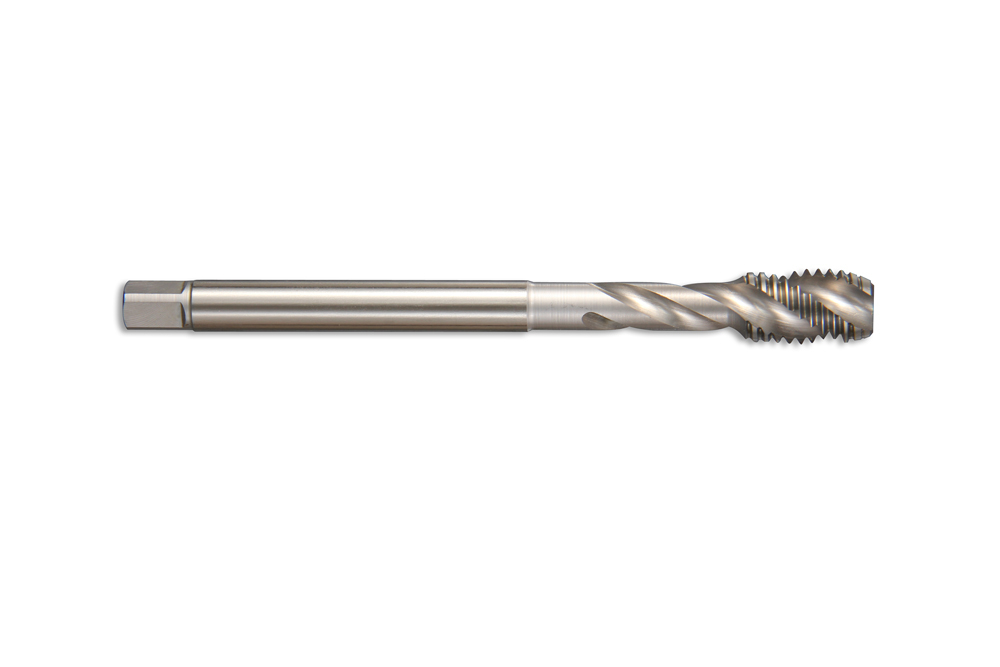

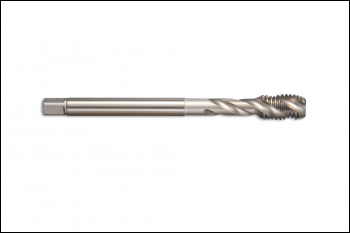

20.27 2024-12-22Machine taps with 40° spiral flutes. A special cutting geometry, together with a surface finish makes this tap very suitable for tough and work hardening materials such as stainless steel and heat resistant steels up to 850N/mm2. Has the capability to thread up to 2.5 x diameter. Resists tearing of the finished thread on reversal.
Tool Type: Spiral Flute Tap
Commodity Code: 82074010
Matrial: HSSE
Finish: Bright Finish
Shank Type: Straight Shank
| Code | Description | Barcode | Country | Pack Qty | Kg |
|---|---|---|---|---|---|
| 631470-04020 | M8 x 1.25 DIN376 M SP/FL Machine Tap - R40VAT | 5011315089296 | PL | 1 | 0.034 |
| 631470-04420 | M10 x 1.5 DIN376 M SP/FL Machine Tap - R40VAT | 5011315089357 | PL | 1 | 0.054 |
| 631470-04820 | M12 x 1.75 DIN376 M SP/FL Machine Tap - R40VAT | 5011315089418 | PL | 1 | 0.059 |
| 631470-05020 | M14 x 2.0 DIN376 M SP/FL Machine Tap - R40VAT | 5011315089470 | PL | 1 | 0.087 |
| 631470-05220 | M16 x 2.0 DIN376 M SP/FL Machine Tap - R40VAT | 5011315089531 | PL | 1 | 0.104 |
| 631470-05420 | M18 x 2.5 DIN376 M SP/FL Machine Tap - R40VAT | 5011315089593 | PL | 1 | 0.154 |
| 631470-05620 | M20 x 2.5 DIN376 M SP/FL Machine Tap - R40VAT | 5011315089654 | PL | 1 | 0.216 |
| 631470-05820 | M22 x 2.5 DIN376 M SP/FL Machine Tap - R40VAT | 5011315089715 | PL | 1 | 0.269 |
| 631470-06020 | M24 x 3.0 DIN376 M SP/FL Machine Tap - R40VAT | 5011315089777 | PL | 1 | 0.328 |
| Code | Size | Flute Length | Overall Length | Shank Diam | Helix Angle | Square A/F | Square Length | Tapping Drill Diam |
|---|---|---|---|---|---|---|---|---|
| 631470-04020 | M8 x 1.25 | 13mm | 90mm | 6.0 | DIN376 | Right Hand | 5.0 | 8.0 |
| 631470-04420 | M10 x 1.5 | 15mm | 100mm | 7.0 | DIN376 | Right Hand | 5.6 | 8.0 |
| 631470-04820 | M12 x 1.75 | 18mm | 110mm | 9.0 | DIN376 | Right Hand | 7.1 | 10.0 |
| 631470-05020 | M14 x 2.0 | 20mm | 110mm | 11.0 | DIN376 | Right Hand | 9.0 | 12.0 |
| 631470-05220 | M16 x 2.0 | 20mm | 110mm | 12.0 | DIN376 | Right Hand | 9.0 | 13.0 |
| 631470-05420 | M18 x 2.5 | 25mm | 125mm | 14.0 | DIN376 | Right Hand | 11.2 | 14.0 |
| 631470-05620 | M20 x 2.5 | 25mm | 140mm | 16.0 | DIN376 | Right Hand | 12.5 | 16.0 |
| 631470-05820 | M22 x 2.5 | 25mm | 140mm | 18.0 | DIN376 | Right Hand | 14.0 | 18.0 |
| 631470-06020 | M24 x 3.0 | 30mm | 160mm | 18.0 | DIN376 | Right Hand | 14.0 | 18.0 |
