Available (Next Working Day Delivery (if ordered by 2pm))
Quote Ref: @109880
Product ID: presto_631405
Related Products: See all related products
Manufacturer: Presto
List Price: £26.56 (£31.87 inc VAT)
Web Price: (£12.44 ex VAT) £14.93 (inc VAT)

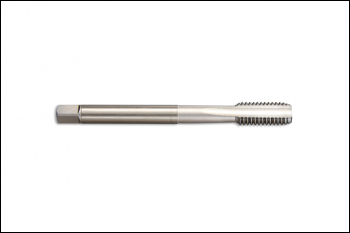

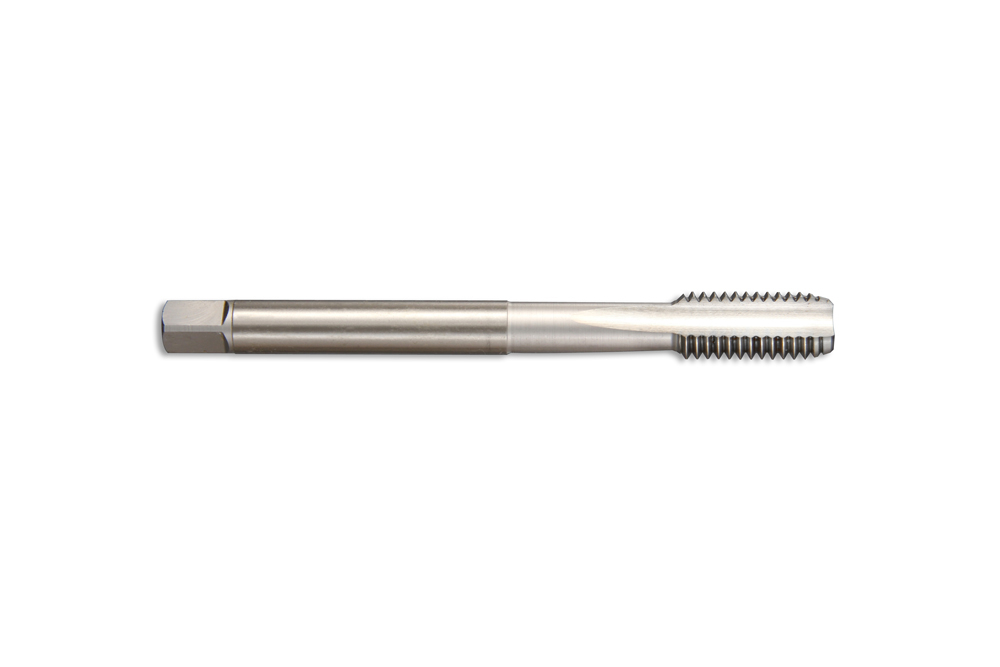

14.93 2024-12-04Straight Flute Machine Tap with short chamfer (2-3 threads) for through and blind holes in free cutting materials up to 850 N/mm2.
Tool Type: Straight Flute Tap
Commodity Code: 82074010
Matrial: HSSE
Finish: Bright Finish
Shank Type: Straight Shank
| Code | Description | Barcode | Country | Pack Qty | Kg |
|---|---|---|---|---|---|
| 631405-03620 | M6 x 1.0 DIN376 M ST/FL Machine Tap - N | 5011315086585 | PL | 1 | 0.017 |
| 631405-04020 | M8 x 1.25 DIN376 M ST/FL Machine Tap - N | 5011315086608 | PL | 1 | 0.034 |
| 631405-04420 | M10 x 1.5 DIN376 M ST/FL Machine Tap - N | 5011315086622 | PL | 1 | 0.054 |
| 631405-04820 | M12 x 1.75 DIN376 M ST/FL Machine Tap - N | 5011315086646 | PL | 1 | 0.059 |
| 631405-05020 | M14 x 2.0 DIN376 M ST/FL Machine Tap - N | 5011315086653 | PL | 1 | 0.087 |
| 631405-05220 | M16 x 2.0 DIN376 M ST/FL Machine Tap - N | 5011315086660 | PL | 1 | 0.104 |
| 631405-05420 | M18 x 2.5 DIN376 M ST/FL Machine Tap - N | 5011315086677 | PL | 1 | 0.154 |
| 631405-05620 | M20 x 2.5 DIN376 M ST/FL Machine Tap - N | 5011315086684 | PL | 1 | 0.216 |
| 631405-05820 | M22 x 2.5 DIN376 M ST/FL Machine Tap - N | 5011315086691 | PL | 1 | 0.269 |
| 631405-06020 | M24 x 3.0 DIN376 M ST/FL Machine Tap - N | 5011315086707 | PL | 1 | 0.328 |
| 631405-06220 | M27 x 3.0 DIN376 M ST/FL Machine Tap - N | 5011315086714 | PL | 1 | 0.403 |
| 631405-06420 | M30 x 3.5 DIN376 M ST/FL Machine Tap - N | 5011315086721 | PL | 1 | 0.216 |
| 631405-06620 | M33 x 3.5 DIN376 M ST/FL Machine Tap - N | 5011315086738 | PL | 1 | 0.691 |
| 631405-06820 | M36 x 4.0 DIN376 M ST/FL Machine Tap - N | 5011315086745 | PL | 1 | 0.921 |
| Code | Size | Flute Length | Overall Length | Shank Diam | Helix Angle | Square A/F | Square Length | Tapping Drill Diam |
|---|---|---|---|---|---|---|---|---|
| 631405-03620 | M6 x 1.0 | 17mm | 80mm | 4.5 | DIN376 | Right Hand | 3.55 | 6.0 |
| 631405-04020 | M8 x 1.25 | 20mm | 90mm | 6.0 | DIN376 | Right Hand | 5.0 | 8.0 |
| 631405-04420 | M10 x 1.5 | 22mm | 100mm | 7.0 | DIN376 | Right Hand | 5.6 | 8.0 |
| 631405-04820 | M12 x 1.75 | 29mm | 110mm | 9.0 | DIN376 | Right Hand | 7.1 | 10.0 |
| 631405-05020 | M14 x 2.0 | 30mm | 110mm | 11.0 | DIN376 | Right Hand | 9.0 | 12.0 |
| 631405-05220 | M16 x 2.0 | 32mm | 110mm | 12.0 | DIN376 | Right Hand | 9.0 | 13.0 |
| 631405-05420 | M18 x 2.5 | 34mm | 125mm | 14.0 | DIN376 | Right Hand | 11.2 | 14.0 |
| 631405-05620 | M20 x 2.5 | 34mm | 140mm | 16.0 | DIN376 | Right Hand | 12.5 | 16.0 |
| 631405-05820 | M22 x 2.5 | 34mm | 140mm | 18.0 | DIN376 | Right Hand | 14.0 | 18.0 |
| 631405-06020 | M24 x 3.0 | 38mm | 160mm | 18.0 | DIN376 | Right Hand | 14.0 | 18.0 |
| 631405-06220 | M27 x 3.0 | 38mm | 160mm | 20.0 | DIN376 | Right Hand | 16.0 | 20.0 |
| 631405-06420 | M30 x 3.5 | 45mm | 180mm | 22.0 | DIN376 | Right Hand | 18.0 | 22.0 |
| 631405-06620 | M33 x 3.5 | 50mm | 180mm | 25.0 | DIN376 | Right Hand | 20.0 | 24.0 |
| 631405-06820 | M36 x 4.0 | 56mm | 200mm | 28.0 | DIN376 | Right Hand | 22.4 | 26.0 |
