Available (Next Working Day Delivery (if ordered by 2pm))
Quote Ref: @109869
Product ID: presto_61127
Related Products: See all related products
Manufacturer: Presto
List Price: £37.99 (£45.59 inc VAT)
Web Price: (£12.60 ex VAT) £15.12 (inc VAT)

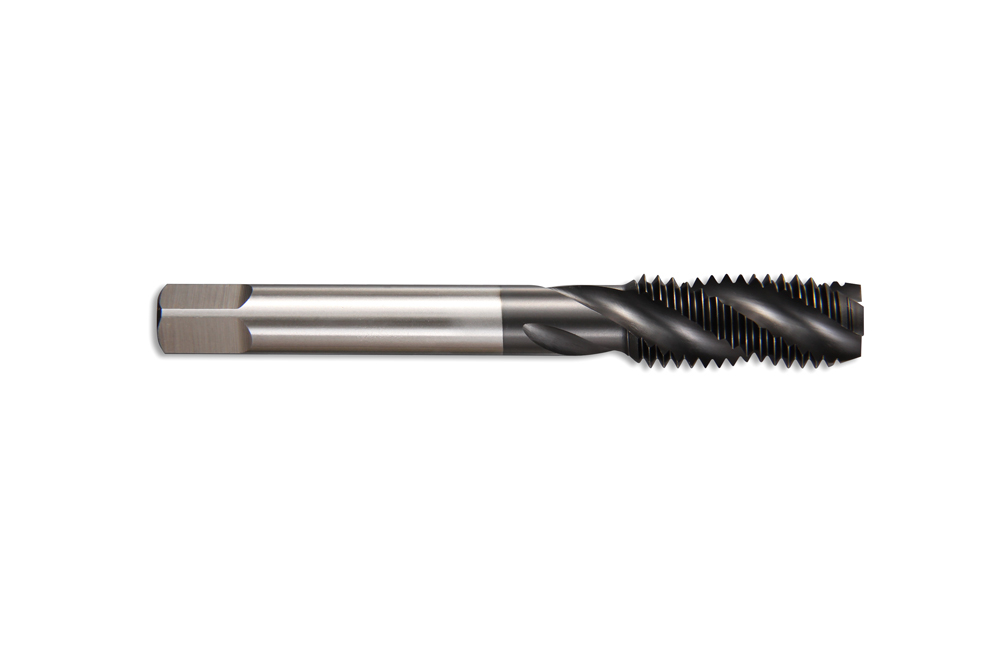

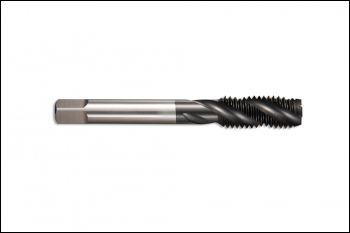

15.12 2024-12-22HSCo Spiral Flute Machine tap with a surface treatment for tough steels with elasticity >30%. The unique geometry helps to avoid pick up and resists work hardening tendencies in materials such as Stainless Steel.
Tool Type: Spiral Flute Tap
Commodity Code: 82074010
Matrial: Cobalt High Speed Steel
Finish: Titanium Carbo Nitride Coated
Shank Type: Straight Shank
Cutting Direction: Normal
| Code | Description | Barcode | Country | Pack Qty | Kg |
|---|---|---|---|---|---|
| 611273.00.5 | M3 x 0.5 HSCo M Spiral Flute Tap - TiCN | 5011315187251 | CN | 1 | 0.0078 |
| 611274.00.7 | M4 x 0.7 HSCo M Spiral Flute Tap - TiCN | 5011315187268 | CN | 1 | 0.0093 |
| 611275.00.8 | M5 x 0.8 HSCo M Spiral Flute Tap - TiCN | 5011315187275 | CN | 1 | 0.0125 |
| 611276.01.0 | M6 x 1.0 HSCo M Spiral Flute Tap - TiCN | 5011315187282 | CN | 1 | 0.0175 |
| 611278.01.25 | M8 x 1.25 HSCo M Spiral Flute Tap - TiCN | 5011315187299 | CN | 1 | 0.0205 |
| 6112710.01.5 | M10 x 1.5 HSCo M Spiral Flute Tap - TiCN | 5011315187305 | CN | 1 | 0.0334 |
| 6112712.01.75 | M12 x 1.75 HSCo M Spiral Flute Tap - TiCN | 5011315187312 | CN | 1 | 0.0461 |
| 6112714.02.0 | M14 x 2.0 HSCo M Spiral Flute Tap - TiCN | 5011315187329 | CN | 1 | 0.0695 |
| 6112716.02.0 | M16 x 2.0 HSCo M Spiral Flute Tap - TiCN | 5011315187336 | CN | 1 | 0.0999 |
| 6112718.02.5 | M18 x 2.5 HSCo M Spiral Flute Tap - TiCN | 5011315187343 | CN | 1 | 0.1307 |
| 6112720.02.5 | M20 x 2.5 HSCo M Spiral Flute Tap - TiCN | 5011315187350 | CN | 1 | 0.1397 |
| Code | Size | Flute Length | Overall Length | Shank Diam | Helix Angle | Square A/F | Square Length | Tapping Drill Diam |
|---|---|---|---|---|---|---|---|---|
| 611273.00.5 | M3 x 0.5 | 16mm | 48mm | 3.15 | ISO529 | Right Hand | 2.5 | 5.0 |
| 611274.00.7 | M4 x 0.7 | 13mm | 53mm | 4.0 | ISO529 | Right Hand | 3.15 | 6.0 |
| 611275.00.8 | M5 x 0.8 | 16mm | 58mm | 5.0 | ISO529 | Right Hand | 4.0 | 7.0 |
| 611276.01.0 | M6 x 1.0 | 19mm | 66mm | 6.3 | ISO529 | Right Hand | 5.0 | 8.0 |
| 611278.01.25 | M8 x 1.25 | 22mm | 72mm | 8.0 | ISO529 | Right Hand | 6.3 | 9.0 |
| 6112710.01.5 | M10 x 1.5 | 24mm | 80mm | 10.0 | ISO529 | Right Hand | 8.0 | 11.0 |
| 6112712.01.75 | M12 x 1.75 | 29mm | 89mm | 9.0 | ISO529 | Right Hand | 7.1 | 10.0 |
| 6112714.02.0 | M14 x 2.0 | 30mm | 95mm | 11.2 | ISO529 | Right Hand | 9.0 | 12.0 |
| 6112716.02.0 | M16 x 2.0 | 32mm | 102mm | 12.5 | ISO529 | Right Hand | 10.0 | 13.0 |
| 6112718.02.5 | M18 x 2.5 | 37mm | 112mm | 14.0 | ISO529 | Right Hand | 11.2 | 14.0 |
| 6112720.02.5 | M20 x 2.5 | 37mm | 112mm | 14.0 | ISO529 | Right Hand | 11.2 | 14.0 |
