Available (Next Working Day Delivery (if ordered by 2pm))
Quote Ref: @109871
Product ID: presto_62820
Related Products: See all related products
Manufacturer: Presto
List Price: £41.23 (£49.48 inc VAT)
Web Price: (£16.54 ex VAT) £19.85 (inc VAT)

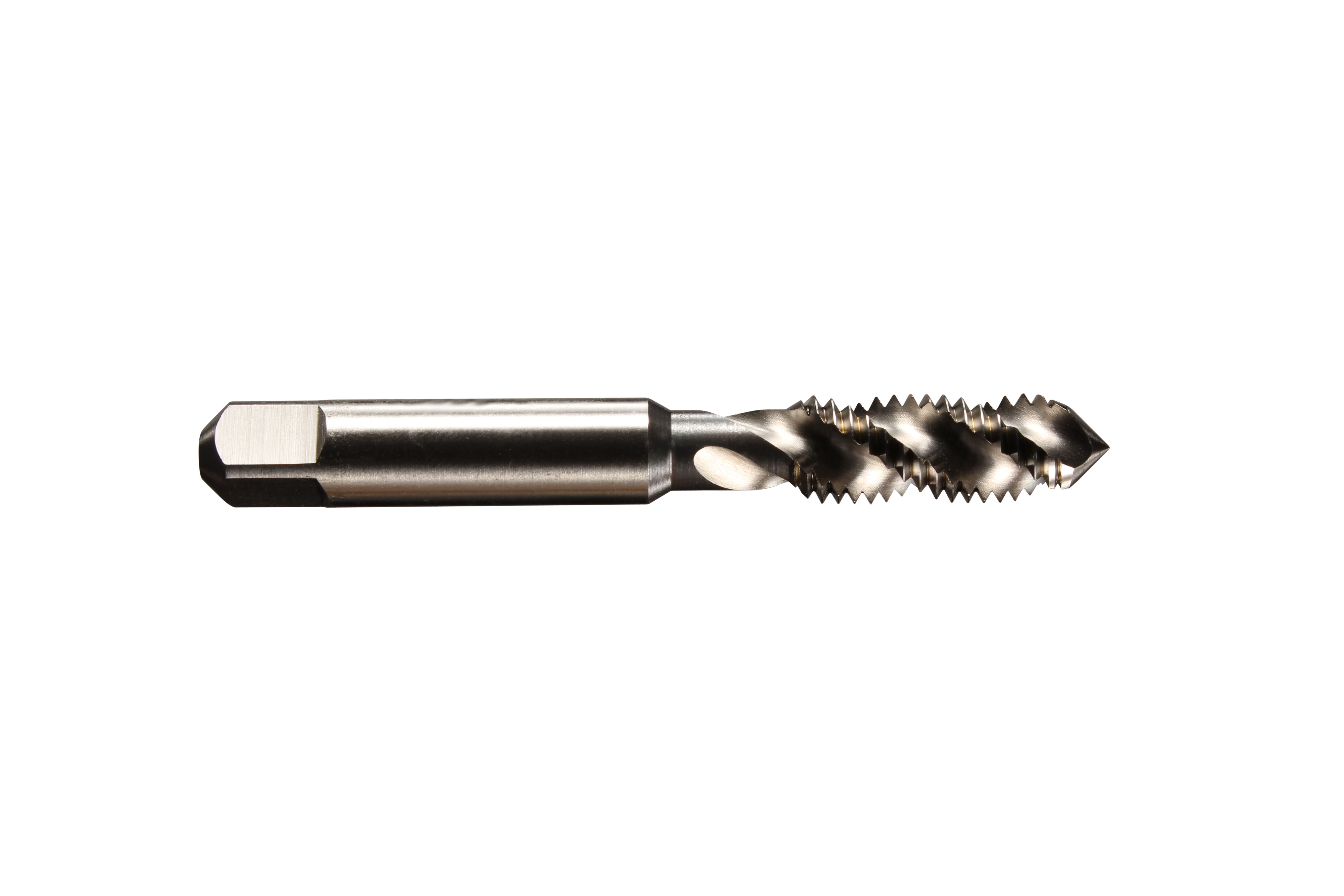

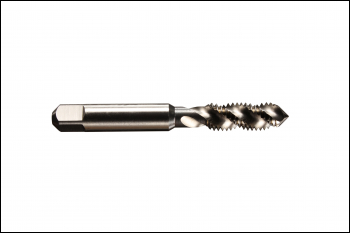

19.85 2024-12-04Machine tap with 40°-spiral flute. Short chamfer permits work on steel up to 750 N/mm2. and Aluminium alloys with more than 0.5% Si.
Tool Type: Spiral Flute Tap
Commodity Code: 82074010
Matrial: High Speed Steel
Finish: Bright Finish
Shank Type: Straight Shank
Cutting Direction: Normal
| Code | Description | Barcode | Country | Pack Qty | Kg |
|---|---|---|---|---|---|
| 628204.00.5 | M4 x 0.5 MF HSS MF Spiral Flute Tap | 5011315083799 | CN | 1 | 0.007 |
| 628205.00.5 | M5 x 0.5 MF HSS MF Spiral Flute Tap | 5011315083805 | CN | 1 | 0.0078 |
| 628206.00.75 | M6 x 0.75 MF HSS MF Spiral Flute Tap | 5011315083812 | CN | 1 | 0.0125 |
| 628208.01.0 | M8 x 1.0 MF HSS MF Spiral Flute Tap | 5011315083829 | CN | 1 | 0.0253 |
| 6282010.01.0 | M10 x 1.0 MF HSS MF Spiral Flute Tap | 5011315083836 | CN | 1 | 0.0428 |
| 6282010.01.25 | M10 x 1.25 MF HSS MF Spiral Flute Tap | 5011315083843 | CN | 1 | 0.0428 |
| 6282012.01.25 | M12 x 1.25 MF HSS MF Spiral Flute Tap | 5011315083850 | CN | 1 | 0.0493 |
| 6282012.01.5 | M12 x 1.5 MF HSS MF Spiral Flute Tap | 5011315083867 | CN | 1 | 0.0493 |
| 6282014.01.25 | M14 x 1.25 MF HSS MF Spiral Flute Tap | 5011315083874 | CN | 1 | 0.076 |
| 6282014.01.5 | M14 x 1.5 MF HSS MF Spiral Flute Tap | 5011315083881 | CN | 1 | 0.076 |
| 6282016.01.5 | M16 x 1.5 MF HSS MF Spiral Flute Tap | 5011315083898 | CN | 1 | 0.0977 |
| 6282018.01.5 | M18 x 1.5 MF HSS MF Spiral Flute Tap | 5011315083904 | CN | 1 | 0.1423 |
| 6282020.01.5 | M20 x 1.5 MF HSS MF Spiral Flute Tap | 5011315083911 | CN | 1 | 0.1513 |
| 6282022.01.5 | M22 x 1.5 MF HSS MF Spiral Flute Tap | 5011315083928 | CN | 1 | 0.1955 |
| Code | Size | Flute Length | Overall Length | Shank Diam | Helix Angle | Square A/F | Square Length | Tapping Drill Diam |
|---|---|---|---|---|---|---|---|---|
| 628204.00.5 | M4 x 0.5 MF | 13mm | 53mm | 4.0 | ISO529 | Right Hand | 3.15 | 6.0 |
| 628205.00.5 | M5 x 0.5 MF | 16mm | 58mm | 5.0 | ISO529 | Right Hand | 4.0 | 7.0 |
| 628206.00.75 | M6 x 0.75 MF | 19mm | 66mm | 6.3 | ISO529 | Right Hand | 5.0 | 8.0 |
| 628208.01.0 | M8 x 1.0 MF | 22mm | 72mm | 8.0 | ISO529 | Right Hand | 6.3 | 9.0 |
| 6282010.01.0 | M10 x 1.0 MF | 24mm | 80mm | 10.0 | ISO529 | Right Hand | 8.0 | 11.0 |
| 6282010.01.25 | M10 x 1.25 MF | 24mm | 80mm | 10.0 | ISO529 | Right Hand | 8.0 | 11.0 |
| 6282012.01.25 | M12 x 1.25 MF | 29mm | 89mm | 9.0 | ISO529 | Right Hand | 7.1 | 10.0 |
| 6282012.01.5 | M12 x 1.5 MF | 29mm | 89mm | 9.0 | ISO529 | Right Hand | 7.1 | 10.0 |
| 6282014.01.25 | M14 x 1.25 MF | 30mm | 95mm | 11.2 | ISO529 | Right Hand | 9.0 | 12.0 |
| 6282014.01.5 | M14 x 1.5 MF | 30mm | 95mm | 11.2 | ISO529 | Right Hand | 9.0 | 12.0 |
| 6282016.01.5 | M16 x 1.5 MF | 32mm | 102mm | 12.5 | ISO529 | Right Hand | 10.0 | 13.0 |
| 6282018.01.5 | M18 x 1.5 MF | 37mm | 112mm | 14.0 | ISO529 | Right Hand | 11.2 | 14.0 |
| 6282020.01.5 | M20 x 1.5 MF | 37mm | 112mm | 14.0 | ISO529 | Right Hand | 11.2 | 14.0 |
| 6282022.01.5 | M22 x 1.5 MF | 38mm | 118mm | 16.0 | ISO529 | Right Hand | 12.5 | 16.0 |
Brand: Presto
Identifier: 62820
Brand new packaged items only.
Comes with a full manufacturer warranty (not including consumable products).
Please make use of any product reviews or youtube clips we have available to learn more about the item.
This item is usually delivered within 1 working day(s).
SSL Certified Secure website to ensure secure online ordering.
Please return the item/s if not suitable for a full refund (within 7 working days of receipt).
We guarantee security of all your personal details, we do not pass on any customer information.
Accept all payment methods including all major Credit Cards, Paypal and Amazon Payments.
Order online now using our Secure SSL Certified Secure website.
Add this product to your basket and come back at any time to complete the order.
Order by phone on 01737783101.
Order with an official purchase order by emailing sales@sitebox.ltd.uk. We will check your account status or if you do not hold an account we will credit check your organisation, confirm and process your order. Please note the first order(s) will always need to be paid upfront unless you are a government linked organisation. Goods remain the property of Sitebox Ltd until paid for in full as per our full terms and conditions.
Machine tap with 40°-spiral flute. Short chamfer permits work on steel up to 750 N/mm2. and Aluminium alloys with more than 0.5% Si. Tool Type: Spiral Flute Tap Commodity C... read on
