Available (Next Working Day Delivery (if ordered by 2pm))
Quote Ref: @109889
Product ID: presto_635763
Related Products: See all related products
Manufacturer: Presto
List Price: £58.41 (£70.09 inc VAT)
Web Price: (£21.35 ex VAT) £25.62 (inc VAT)

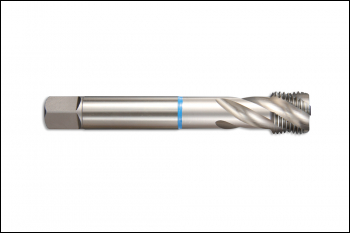

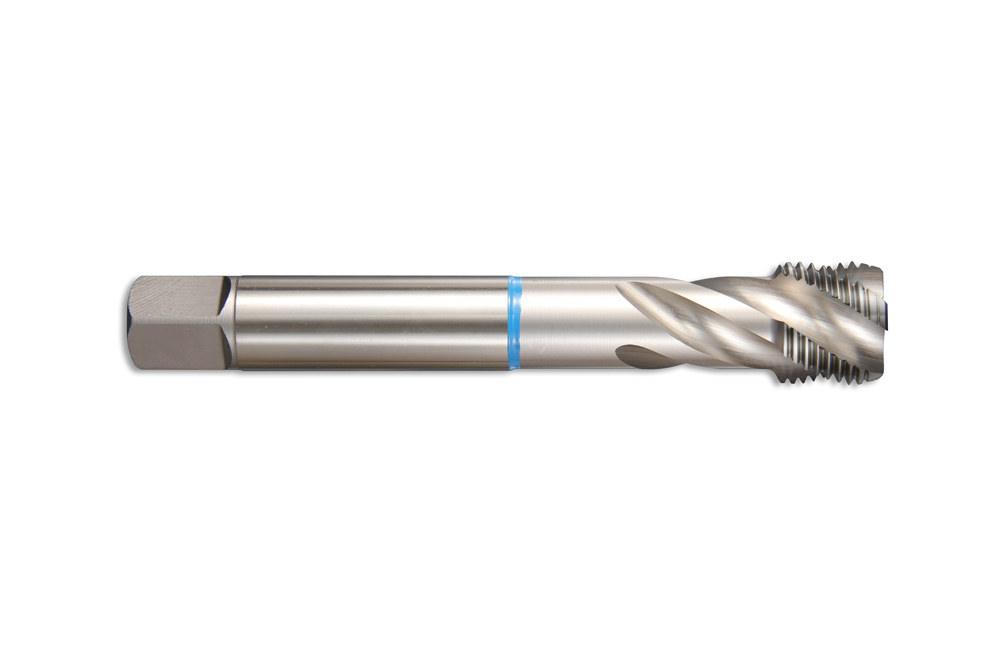

25.62 2025-01-21Machine tap with 40° spiral flute. Short chamfer permits work on steel up to 750 N/mm2 and Aluminium alloys with more than 0.5% Si.
Tool Type: Spiral Flute Tap
Commodity Code: 82074010
Matrial: HSSE
Finish: Bright Finish
Shank Type: Straight Shank
| Code | Description | Barcode | Country | Pack Qty | Kg |
|---|---|---|---|---|---|
| 635763-02000 | 1/8" x 28 G (BSPF) HSSE G (BSPF) R40N Spiral Flute Machine Tap | 5011315095532 | PL | 1 | 0.033 |
| 635763-02200 | 1/4" x 19 G (BSPF) HSSE G (BSPF) R40N Spiral Flute Machine Tap | 5011315095549 | PL | 1 | 0.076 |
| 635763-02600 | 3/8" x 19 G (BSPF) HSSE G (BSPF) R40N Spiral Flute Machine Tap | 5011315095556 | PL | 1 | 0.098 |
| 635763-03000 | 1/2" x 14 G (BSPF) HSSE G (BSPF) R40N Spiral Flute Machine Tap | 5011315095570 | PL | 1 | 0.201 |
| 635763-03600 | 3/4" x 14 G (BSPF) HSSE G (BSPF) R40N Spiral Flute Machine Tap | 5011315095594 | PL | 1 | 0.353 |
| 635763-04000 | 1" x 11 G (BSPF) HSSE G (BSPF) R40N Spiral Flute Machine Tap | 5011315095617 | PL | 1 | 0.621 |
| Code | Size | Flute Length | Overall Length | Shank Diam | Helix Angle | Square A/F | Square Length | Tapping Drill Diam |
|---|---|---|---|---|---|---|---|---|
| 635763-02000 | 1/8" x 28 G (BSPF) | 20mm | 90mm | 7.0 | DIN5156 | Right Hand | 5.6 | 8.0 |
| 635763-02200 | 1/4" x 19 G (BSPF) | 22mm | 100mm | 11.0 | DIN5156 | Right Hand | 9.0 | 12.0 |
| 635763-02600 | 3/8" x 19 G (BSPF) | 22mm | 100mm | 12.0 | DIN5156 | Right Hand | 10.0 | 13.0 |
| 635763-03000 | 1/2" x 14 G (BSPF) | 25mm | 125mm | 16.0 | DIN5156 | Right Hand | 12.5 | 16.0 |
| 635763-03600 | 3/4" x 14 G (BSPF) | 25mm | 140mm | 20.0 | DIN5156 | Right Hand | 16.0 | 20.0 |
| 635763-04000 | 1" x 11 G (BSPF) | 30mm | 160mm | 25.0 | DIN5156 | Right Hand | 20.0 | 24.0 |
Brand: Presto
Identifier: 635763
Brand new packaged items only.
Comes with a full manufacturer warranty (not including consumable products).
Please make use of any product reviews or youtube clips we have available to learn more about the item.
This item is usually delivered within 1 working day(s).
SSL Certified Secure website to ensure secure online ordering.
Please return the item/s if not suitable for a full refund (within 7 working days of receipt).
We guarantee security of all your personal details, we do not pass on any customer information.
Accept all payment methods including all major Credit Cards, Paypal and Amazon Payments.
Order online now using our Secure SSL Certified Secure website.
Add this product to your basket and come back at any time to complete the order.
Order by phone on 01737783101.
Order with an official purchase order by emailing sales@sitebox.ltd.uk. We will check your account status or if you do not hold an account we will credit check your organisation, confirm and process your order. Please note the first order(s) will always need to be paid upfront unless you are a government linked organisation. Goods remain the property of Sitebox Ltd until paid for in full as per our full terms and conditions.
Machine tap with 40°-spiral flute. Short chamfer permits work on steel up to 750 N/mm2. and Aluminium alloys with more than 0.5% Si. Tool Type: Spiral Flute Tap Commodity C... read on
Straight Flute Machine Tap with short chamfer (2-3 threads) for through and blind holes in free cutting materials up to 850 N/mm2. Tool Type: Straight Flute Tap Commodity Code:... read on
Set of Spiral Flute Taps for blind holes. Short chamfer permits work on steel up to 750 N/mm2 and Aluminium alloys with more than 0.5% Si. Set includes a tapping drill for each s... read on
Set of Spiral Flute Taps for blind holes. Short chamfer permits work on steel up to 750 N/mm2 and Aluminium alloys with more than 0.5% Si. Set includes a TiN Coated tapping drill f... read on
Machine tap with 40°-spiral flute for blind holes. Short chamfer permits work on steel up to 750 N/mm2 and Aluminium alloys with more than 0.5% Si. Tool Type: Spiral Flute T... read on
Design and application like List-No. 60020. TiN coating provides longer tool life or increased cutting speeds.Tool Type: Spiral Flute TapCommodity Code: 82074010Matrial: High Speed... read on
Design and application like List-No. 60020. Steam Temper promotes wear resistance. Tool Type: Spiral Flute Tap Commodity Code: 82074010 Matrial: High Speed Steel Finish: Stea... read on
Machine tap with 40°-spiral flute. Short chamfer permits work on steel up to 750 N/mm2. and Aluminium alloys with more than 0.5% Si.Tool Type: Spiral Flute TapCommodity Code: 8207... read on
Machine tap with 40°-spiral flute. Short chamfer permits work on steel up to 750 N/mm2. and Aluminium alloys with more than 0.5% Si.Tool Type: Spiral Flute TapCommodity Code: 8207... read on
Machine tap with 40°-spiral flute. Short chamfer permits work on steel up to 750 N/mm2. and Aluminium alloys with more than 0.5% Si.Tool Type: Spiral Flute TapCommodity Code: 8207... read on
Machine tap with 40°-spiral flute. Short chamfer permits work on steel up to 750 N/mm2. and Aluminium alloys with more than 0.5% Si.Tool Type: Spiral Flute TapCommodity Code: 8207... read on
Machine tap with 40°-spiral flute. Short chamfer permits work on steel up to 750 N/mm2. and Aluminium alloys with more than 0.5% Si.Tool Type: Spiral Flute TapCommodity Code: 8207... read on
Spiral point Machine tap with straight flutes for working in steel up to 750 N/mm2. Swarf is forced forward in the direction of the cut.Tool Type: Spiral Point TapCommodity Code: 8... read on
Set of Spiral Point taps with straight flutes for working in steel up to 750 N/mm2. includes a tapping drill for each size tap. Steam Temper promotes wear resistance.Tool Type: Thr... read on
Set of Spiral Flute Taps for blind holes. Short chamfer permits work on steel up to 750 N/mm2 and Aluminium alloys with more than 0.5% Si. Set includes a TiN Tipped tapping drill f... read on
Set of Spiral Flute Taps for blind holes. Short chamfer permits work on steel up to 750 N/mm2. Set includes a TiN Tipped tapping drill for each size tap. Steam Temper promotes wear... read on
Set of Spiral Flute Taps for blind holes. Short chamfer permits work on steel up to 750 N/mm2. Set includes a TiN Coated tapping drill for each size tap. Steam Temper promotes wear... read on
| Option | Price Difference | |
|---|---|---|
| 1/8 inch x 28 G (BSPF) HSSE G (BSPF) R40N Spiral Flute Machine Tap - 635763-02000 | none | |
| 1/4 inch x 19 G (BSPF) HSSE G (BSPF) R40N Spiral Flute Machine Tap - 635763-02200 | +£8.44 | |
| 3/8 inch x 19 G (BSPF) HSSE G (BSPF) R40N Spiral Flute Machine Tap - 635763-02600 | +£13.79 | |
| 1/2 inch x 14 G (BSPF) HSSE G (BSPF) R40N Spiral Flute Machine Tap - 635763-03000 | +£21.22 | |
| 3/4 inch x 14 G (BSPF) HSSE G (BSPF) R40N Spiral Flute Machine Tap - 635763-03600 - (out of stock) | +£49.22 | |
| 1 inch x 11 G (BSPF) HSSE G (BSPF) R40N Spiral Flute Machine Tap - 635763-04000 - (out of stock) | +£81.02 |
