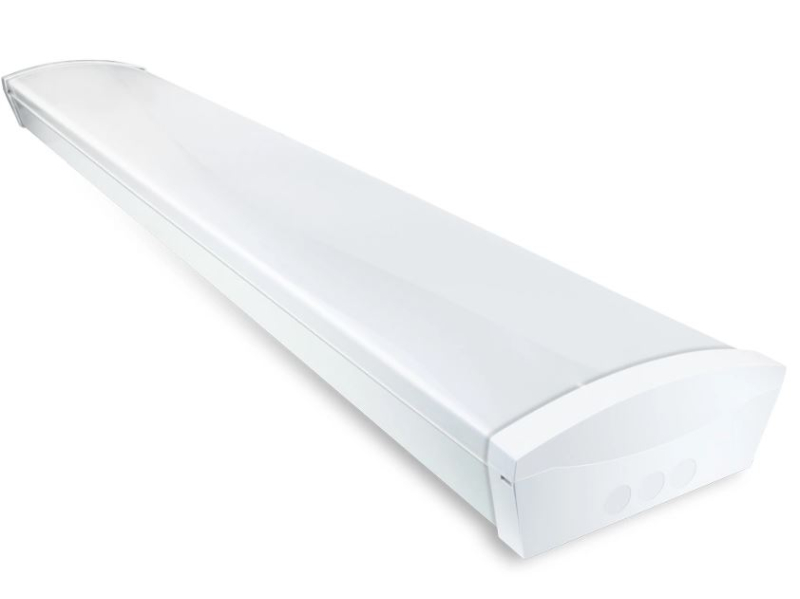

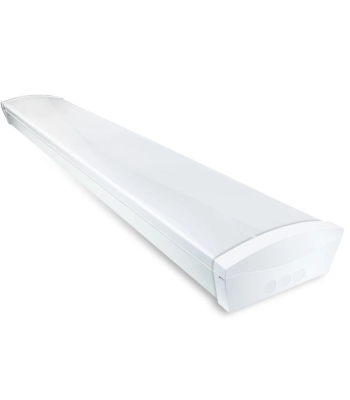

Red Arrow Harvard Twin LED Batten - 1478 x 205 x 87 mm - HAR5/27-47/3CCT/UGR19

UGR<19 Harvard is a modern and minimalistic linear twin batten designed for indoor applications requiring low glare. Designed specifically for classrooms, and office environments with visual comfort in mind. With selectable CCT and power, high efficacy of 120lm/w, 7 year warranty and plug and play capability.

Technical Data:

  • Dimensions (mm) L: 1478 x W: 205 x H: 87 mm
  • Colour Appearance (CCT) 3000K | 4000K | 6500K
  • IP Rating IP20
  • IK Rating IK08
  • Voltage 180-264V
  • Material (Body/Housing) Steel
  • Colour Finish White RAL9003
  • LED Life Expectancy L70B50 170,000 Hours
  • Power Factor 0.95
  • Frequency 50/60Hz Driver Type
  • Fixed Approval UKCA CE Electrical Class Class I
  • Material (Diffuser/Cover) Polycarbonate
  • Colour Rendition (CRI) Ra >80
  • Working Temperature -20°C to 60°C

Brand: Red Arrow Trading

Identifier: HAR5/27-47/3CCT/UGR19
