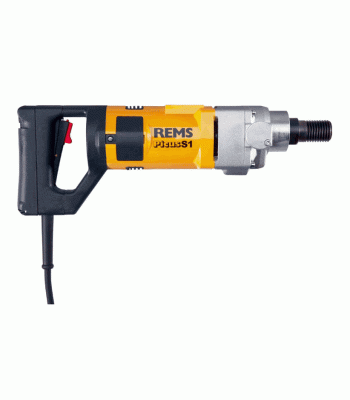

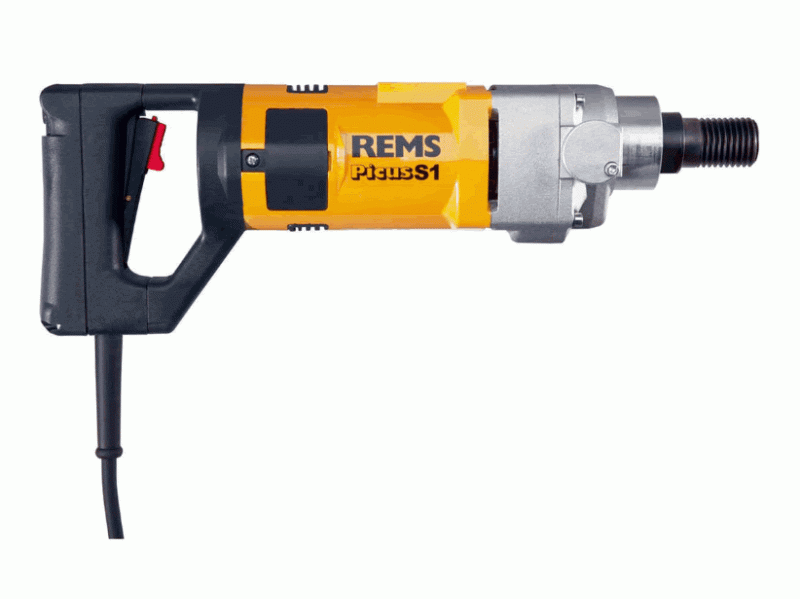

Rems 180010 Picus S1 Diamond Core Drill

Compact diamond core drill for wet and dry core drilling in masonry, concrete including reinforced concrete.

Masonry core drilling up to 162mm.

Reinforced concrete core drilling up to 102mm.

Supplied Format

Picus S1 drive unit in either 240v or 110v, personal protection device on lead, water supply device, core wrench and sturdy steel case.

Note: Stand and diamond core are not supplied with this kit, images are for illustration purposes only.

Universal Use

Can be used hand held or in a stand and is therefore suitable in confined areas or at difficult angles.

Ideal for plumbers, electricians and heating-ventilating engineers.

Universal

All Rems diamond core drills come with 1 ¼" UNC fitting along with the complete diamond core range reducing possible confusion and stock requirement.

Execution

Compact drilling machine for low vibration core drilling yet light (5.2kg) and robust for site use.

Capable of drilling a 62mm core in 200mm reinforced concrete in just 3 minutes.

D shaped rear handle and extended front handle for stability and user protection.

Universal 60mm throat suits all Rems drill stands.

½ " hose connection for wet drilling with adjustable shut off valve.

Suction rotor for dust extraction when dry drilling available as an accessory.

Drive

Powerful 1,800 watt motor with maintenance free gearbox.

Single speed drilling at 580 rpm.

Safety clutch protects the operator.

Multifunction Electronics

Soft start for accurate core alignment, automatic idle speed limitation and overload protection for motor and gearbox.

Diamond Cores

Universal use, suitable for both wet and dry core drilling.

1 ¼" UNC female thread fits all Rems machines.

Universal drilling depth of 420mm on all Rems diamond cores.

Top quality bonded segments with high diamond content for excellent drilling performance and long service life.

Universal application including masonry, concrete and reinforced concrete.
