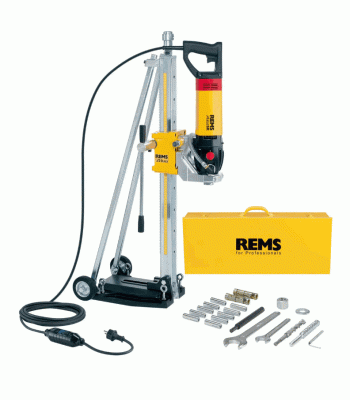

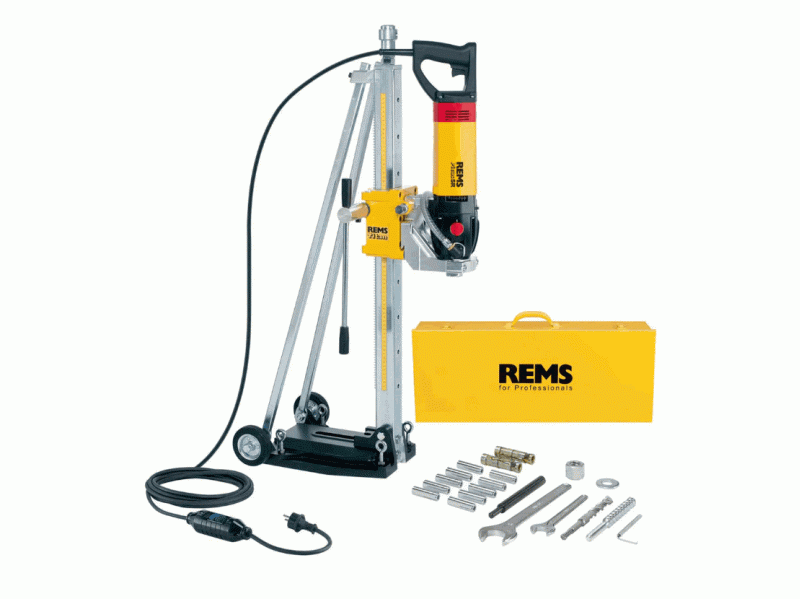

Rems 183022 Picus SR Set Titan

The popular Rems Picus SR diamond core drilling machine supplied with the Rems Titan drill stand in 1 great value package.

Rems Picus SR Diamond Core Drill with Speed Control

Compact diamond core drill for wet and dry core drilling in masonry, concrete including reinforced concrete.

Masonry core drilling up to 162mm.

Reinforced concrete core drilling up to 250mm.

Supplied as

Picus SR drive unit in either 240v or 110v, personal protection device on lead, water supply device, core wrench and sturdy steel case.

Note. diamond cores are not supplied with this kit, images are for illustration purposes only.

Universal Use

Can be used hand held or in a stand and is therefore suitable in confined areas or at difficult angles.

Ideal for plumbers, electricians and heating-ventilating engineers.

Universal

All Rems diamond core drills come with 1 ¼" UNC fitting along with the complete diamond core range reducing possible confusion and stock requirement.

Execution

Compact drilling machine for low vibration core drilling yet light (6.4kg) and robust for site use.

Capable of drilling a 62mm core in 200mm reinforced concrete in just 3 minutes.

D shaped rear handle and extended front handle for stability and user protection.

Universal 60mm throat suits all Rems drill stands.

½ " hose connection for wet drilling with adjustable shut off valve.

Suction rotor for dust extraction when dry drilling available as an accessory.

Drive

Powerful 2,200 watt motor with maintenance free gearbox.

PTC temperature control prevents the motor from overheating.

Safety clutch protects the operator.

Speed Control

Electronic speed control allows the operator to select the correct drill speed best suited to the material being drilled.

1st gear 200 - 500 rpm.

2nd gear 500 - 1,200 rpm.

Constant speed control means that the speed will remain at the speed set by the operator even under load.

Multifunction Electronics

Soft start for accurate core alignment, automatic idle speed limitation and overload protection for motor and gearbox.

Diamond Cores

Universal use, suitable for both wet and dry core drilling.

1 ¼" UNC female thread fits all Rems machines.

Universal drilling depth of 420mm on all Rems diamond cores.

Top quality bonded segments with high diamond content for excellent drilling performance and long service life.

Universal application including masonry, concrete and reinforced concrete.

Rems Titan Diamond Drill Stand

Robust and highly stable diamond core stand suitable for core drilling up to 300mm in concrete and reinforced concrete and other masonry materials.

Supply Format

Titan drilling stand with toolkit (hex key and spanners x 3), concrete fastening kit (2 x M12 splaying anchors, 10 x M12 hammer anchors, setting tool, cord threaded bar M12 x 65mm, quick clamping nut, washer.

Features

Constructed from square section 50mm unbendable steel tube with narrow tolerance for low vibration guidance slide.

Rig is continuously tiltable up to 45° and is double supported by single part construction steel girders providing maximum thrust to drilling rig.

Integrated spirit level for optimum siting of unit and adjustments by 4 eye bolts to compensate for uneven floors.

Built in depth scale for perfect drilling penetration.

Slide guided on all 4 sides by plastic pre-tensioned slide bearings which are adjustable to provide precision in-feed and low vibration drilling for optimum user control and prolonged diamond core life.

Quick clamping plate to accommodate diamond drill units with standard 60mm clamping throat.

Rack and pinion transmission lever can be inserted either side of the rig for right and left handed use.

Base plate has built in groove to accept vacuum attachment which is available as an optional accessory.

Adjustable clamping head allows the rig to be floor or ceiling mounted or between 2 walls.

Lightweight at just 19.5kg and easily transportable thanks to integrated wheels.
