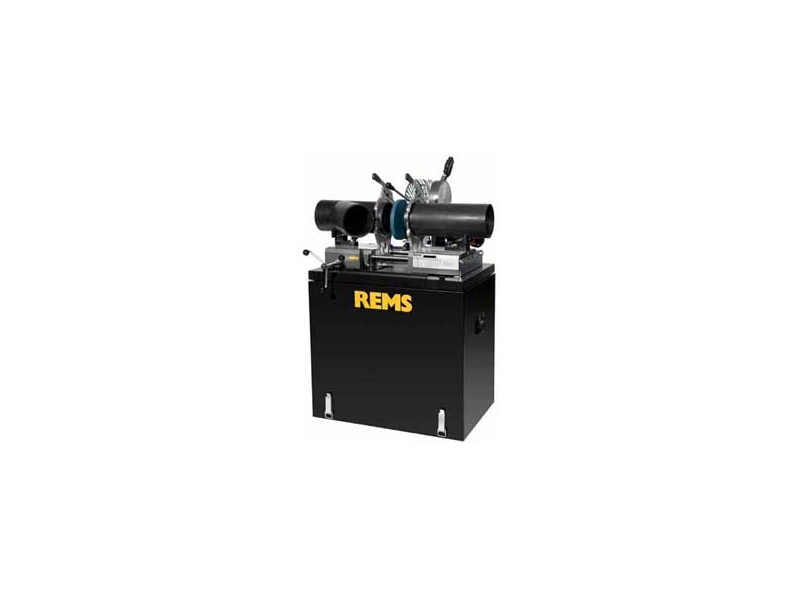

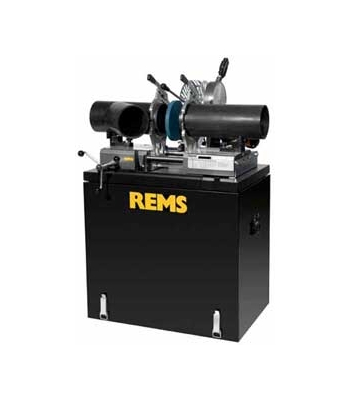

REMS 252046 SSM 160KS Plastic Pipe Butt Fusion Welding system

Rems SSM 160 KS

Plastic pipes and fittings in PB, PE, PP, PVDF Ø 40 – 160 mm PE Ø 40 – 90 mm SDR ≥ 6 PE Ø 40 – 110 mm SDR ≥ 9 PE Ø 40 – 125 mm SDR ≥ 11 PE Ø 40 – 140 mm SDR ≥ 17 PE Ø 40 – 160 mm SDR ≥ 21 REMS SSM 160KS – ideal for the pipe fitter.

Design
Compact, robust, job site-proven.
Machine on sheet metal base weighs 101 kg. Easy to carry.
– Base frame in aluminium cast
– Free suspension of butt welding unit REMS SSG 180 for exact alignment of the faces to be welded
– Electric facing cutter unit for plane-parallel machining of pipe ends
– Smooth sliding, roller-bearing mounting of butt welding unit and electric facing cutter unit
– Quick clamping device, also suitable for angular branches.
– Pressing device, clear scale for easy reading of jointing pressure, clamping handle for pressure holding
– Machine on sheet steel base with built-in drawer for clamping and pipe rest inserts
– Suitable for use on a work bench or on the standard supplied sheet metal cabinet (= carrying case).
Heating element according to DVS.
Embedded in corrosion-resistant cast aluminium for indirect heat transfer.
High-quality, long-lasting PTFE coating prevents adherence of plastic remnants as well as oxidising, and
enables easy cleaning.
Ideal temperature distribution and constant temperature at the complete working area.
Protective cover for heating element
Electronic temperature control
Adjustable temperature 180 – 290°C, preset for PE pipes. The electronic temperature control automatically
controls the preset temperature within the permitted range according to DVS.
Temperature control lamp and power control lamp.
Facing cutter unit.Electric facing cutter unit with special, high torque universal motor, 500 W, for
plane-parallel machining of one or both pipe ends according to DVS.
Fast positioning of facing cutter with proven safety switch.
Closed facing cutter housing.
Specially hardened and specially ground planing blades guarantee easy, vibration-free planing
Sturdy quick clamping device made of nickel-plated steel, consisting of 2 vices with 2 clamping inserts
each for pipes of Ø 40, 50, 56, 63, 75, 90, 110, 125, 135, 140, 160 mm.
Also suitable for angular branches.
Pipe supports.Multiple adjustment, easy positioning of pipe supports for pipes of Ø 160 mm for supporting
and easy axial alignment of pipes and fittings.
2 pipe support inserts each for pipes Ø 40, 50, 56, 63, 75, 90, 110, 125, 135, 140 mm.

110v Only.
