REMS 340200 Tornado 2000 1/2-2 inch BSPT with Oil Available in 110v/240v

Automatic Chuck, Universal automatic Die Head, Automatic Lubrication & Cooling.

Pipe threads, 1/8″ – 2″, 16 – 63mm.

Bolt threads, ¼ – 2″, 10 – 60mm.

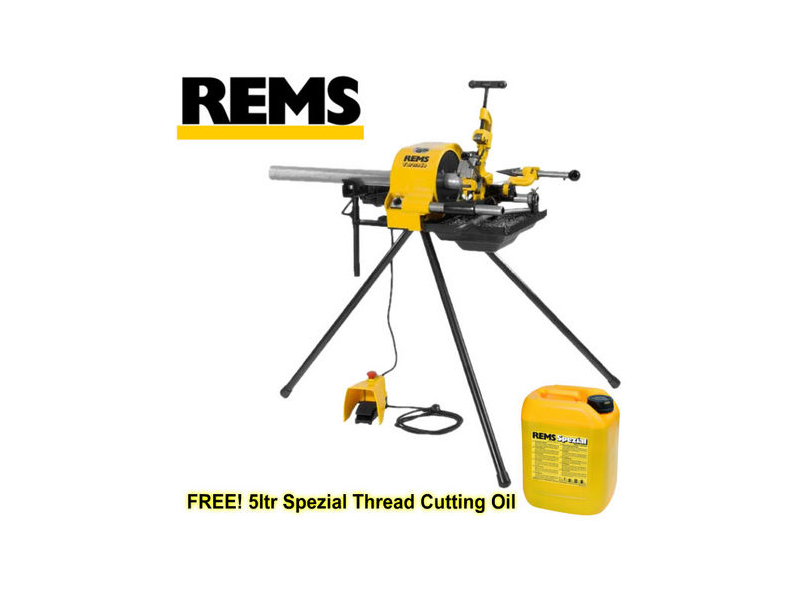

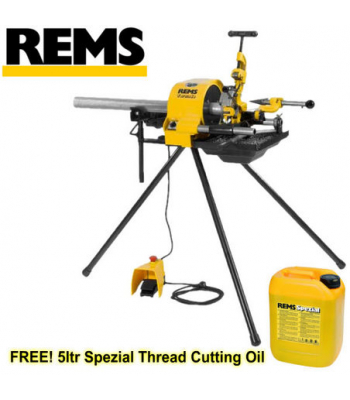

Robust and ideal for site work, the Rems Tornado is a proven high class performer for threading, cutting, deburring, nipple threading and roll grooving (accessory required). This version is supplied with 3 tubular legs, removable oil basin and chip tray.

Supplied With.

Rems Tornado Threading Machine.

½ – 2″ Automatic Die Head and Pipe Cutter.

Removeable large oil basin and chip tray.

Tubular leg stand.

1 x 5 ltr Rems Spezial Cutting Oil

Drive Motor

With its powerful universal 1,700w motor and spindle speed of 53 rpm the tornado can turn a 2″ thread in just 15 seconds. Operation of the motor is via a user friendly foot switch with emergency stop for protection.

Automatic Chuck

The unit has 2 self catering chucks for fast and easy clamping/releasing of the pipework, the chucks are self tightening for maximum clamping force and minimise pipe slip.

Automatic Lubrication/Cooling

With it’s reliable oil pump and high pumping capacity oil distribution is optimized onto the threading point through the die head, this ensures clean threads, long die, gear and motor life.

Universal Automatic Die Head

Just one die head is needed for all threads including long threads. Automatic opening and thread length stop for tapered threads, fast adjustment of thread size, easy to read thread size scale and simple die changeover make this machine extremely operator friendly.

Dies

Rems indestructible quality dies ensure excellent start cutting, easy threading and fast clean threads. The dies are manufactured from high grade steel, fully tempered and hardened for extremely long life.

Pipe Cutter

Made of forged steel with a robust body the pipe cutter is self centering has an ergonomic wide handle for powerful in feed and a specially hardened cutter wheel to ensure long service life.

Inner Pipe Deburrer

Strong yet easy to handle deburring device with adjustable positioning.
Specially designed twin cutting blade ensures easy deburring and optimum chip flow especially on smaller diameter pipes.

Thread-cutting oil

Rems Spezial and Sanitol cutting oils are recommended to aid thread cutting, they will prolong die life, speed cutting and ensure perfect threading.
