Ritelite QUAD POD K50 & K65 BEAM CONTROL MOBILE LIGHTING TOWERS - Various Light Options Available in either 110/240V

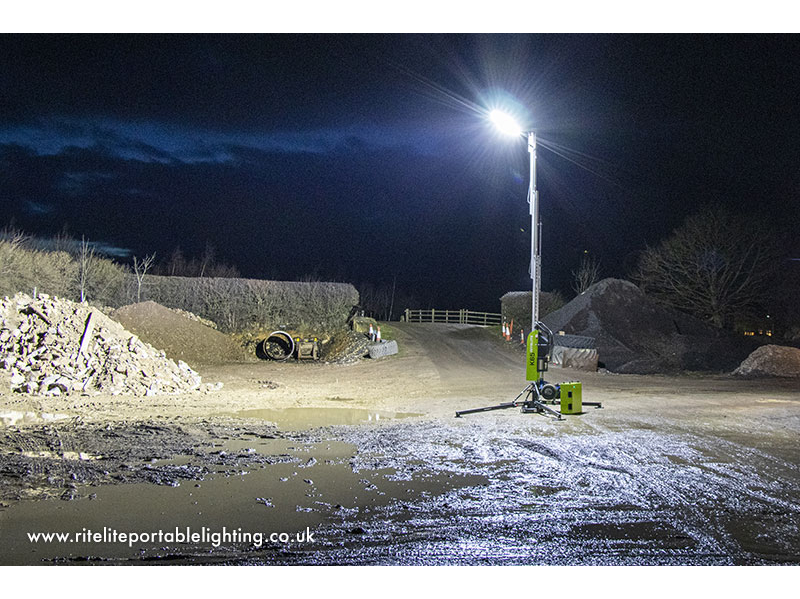

The Quad Pod is a unique mobile lighting solution for construction, industrial and sports applications. Designed for use as a true alternative to towed lighting towers yet quick to and simple to deploy, the Quad Pod K50 & K65 lighting towers are compact to store and transport and are easy to manoeuvre across many terrains. The High power LED light heads give instant, flicker free, illumination to a vast area and can be configured to give either 180 degree or 360 degree light powered by either generator or mains power.

The Quad Pod K50 & K65 Mobile Lighting Towers provide high quality instant LED light to a wide area. They are easy to store, transport and set up and designed to be robust and durable in the industrial environments in which they are used. The individual light heads can be positioned to give from 180 to 360 degree light and the towers can be powered by either mains or generator power. With models that extend to 6.62M height the Quad Pod products are unique product for a wide range of applications.

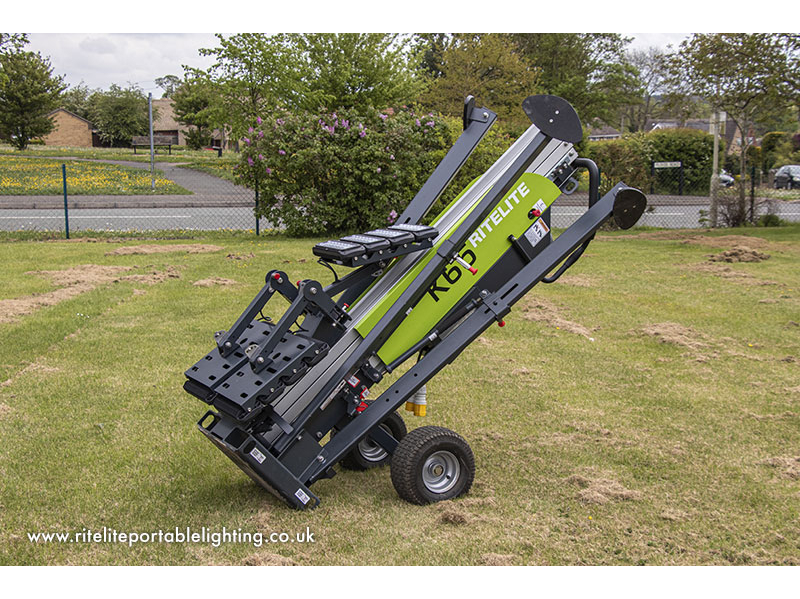

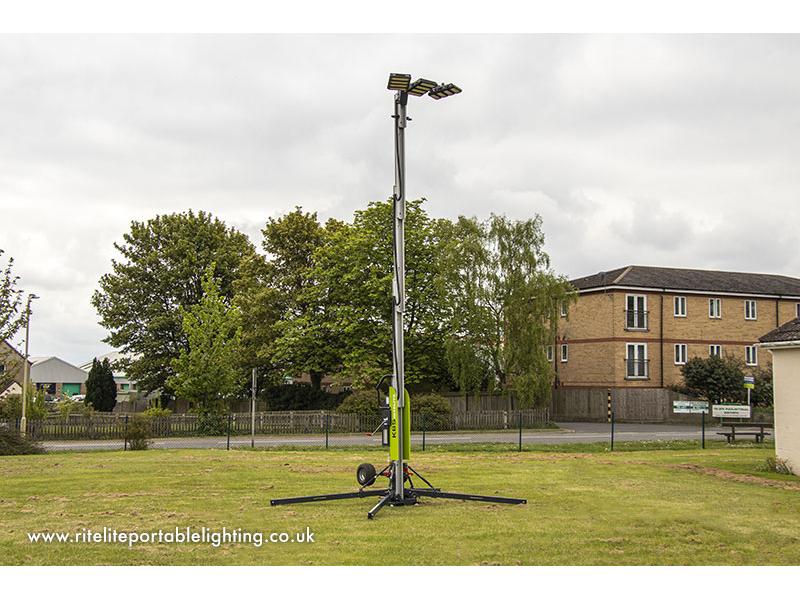

The K50 & K65 Quad Pod mobile lighting tower is the ideal lighting solution for all applications where area floodlighting is required. Ritelite’s K50 & K65 Quad Pod mobile lighting towers are compact to store and easy to transport and set up extending up to 6.6m total height (K65). The fully flexible high power LED light heads can be set up to illuminate from 180 to 360 degrees to cover all temporary lighting requirements producing up to 195,000 lumens (266,000 equivalent lumens) total light output from a maximum 1460W power requirement.

Key features and benefits of the K50 & K65 Quad Pods

• Easy to transport and setup, no planning permission required
• Cheaper than a permanent floodlight system
• Allows evening training sessions on any sports pitch or area of the sports facility
• Easy to manoeuvre over any terrain
• Compact footprint enables multiple units to be transported together

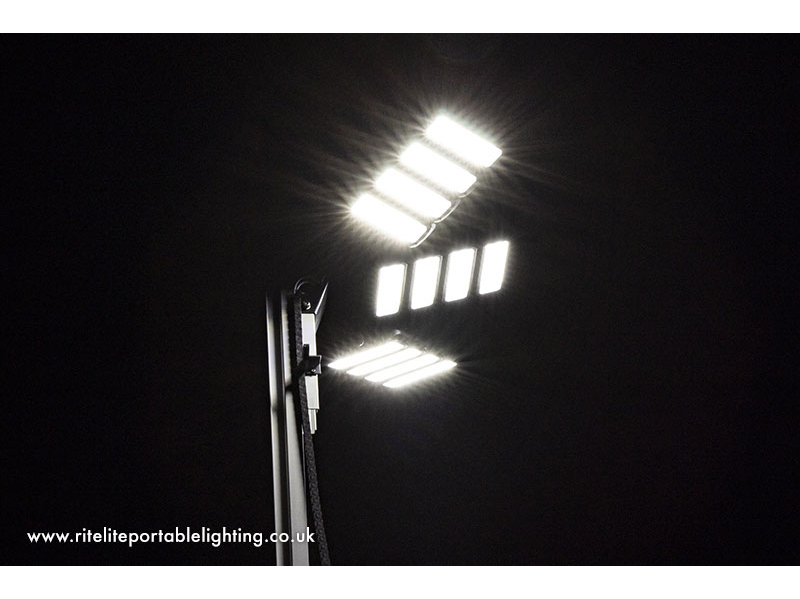

• Instant, flicker free high power LED light – up to 195,000 lumens per lighting tower

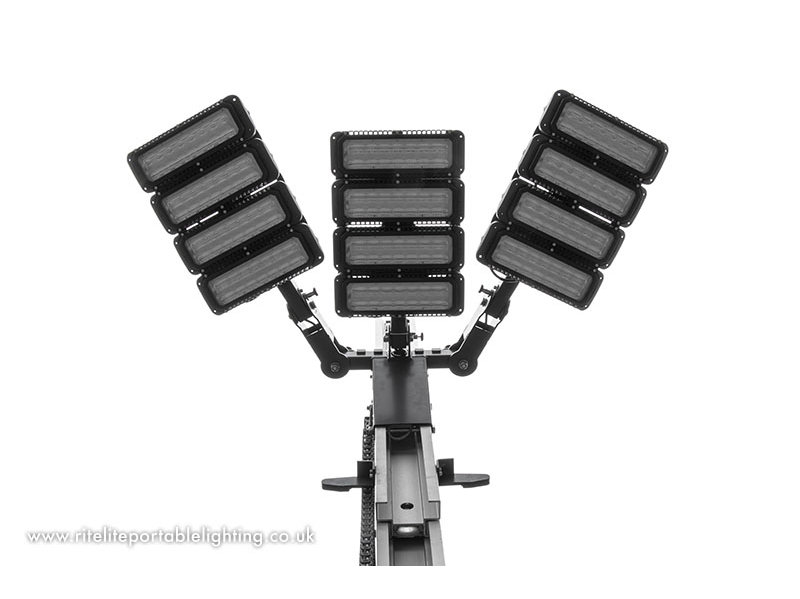

• Individual, fully adjustable light heads
• Fully dimmable – choose a brightness level to suit the application and increase duration further
• 110v & 240v options for power input from generator or mains power
• Forklift pockets and tie down points for safe and fast handling, loading and unloading at storage depots and work sites
• Unique parallel mast design
• Automatic mast safety interlock system
• Operator level RCBO electrical safety isolation switch
• Independently adjustable legs
• Built in level gauge
• Low pressure footprint
• Silent, fume free operation when mains powered

360 Degree Area Lighting

For Applications Where Multi-Directional Lighting Is Required

• 3 x 450W light heads on K65 Quad Pod
• Average 20 lux over 6724 m2

180 Degree Directional Area Lighting

For Applications where Directional Lighting Is Required

• 3 x 450W light heads on K65 Quad Pod
• Average 20 lux over 6868 m2

K50

K65
