Product ID: MEDCO_CW9
Related Products: See all related products
Manufacturer: Ritelite
Price: (£249.99 ex VAT) £299.99 (inc VAT)

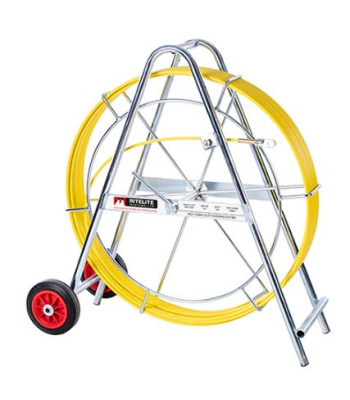

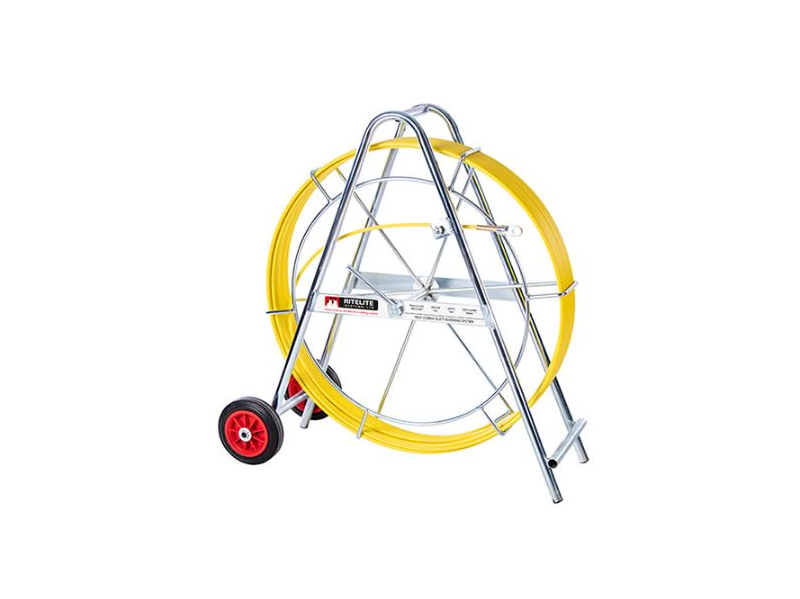

299.99 2025-02-19The Ritelite Quick Trace Rodding System has 2 copper wires in the rod which can be energised with a signal transmitter. The locator detects the frequency, allowing the entire buried utility to be traced and marked from above ground by one person.
The high quality Ritelite Quick Trace Rodding Systems provide 2 solutions in one product. They can be used as a standard fibreglass rodding system for cable / draw rope installation and as a traceable rodding system to identify duct/pipe runs or locate blockages.
Key advantages:
To use as a trace rod push the rod along the duct as required or until a blockage or obstruction is met. Connect the positive side to the signal generator onto the rod terminal (at the point where it attaches to the reel). Connect the negative side to an earth stake (or other independent earth). The Trace Rod can then be traced along it’s complete length with a Cable Avoidance tool (CAT Receiver).
Suitable for use with most C.A.T and signal generator systems.
ROD
Highest quality 6mm / 9mm or 11mm reinforced fibreglass rod complete with two 0.5mm copper trace wires.
UV inhibited coating.
FRAME
Rugged steel construction, Zinc plated
DIMENSIONS
MIDCO Versions: 655mm width x 68mm high x 245mm depth
MEDCO Versions: 820mm width x 920mm high x 300mm depth
MAXCO Versions: 1000mm width x 1200mm high x 500mm depth
| Product Code | Diameter | Length | Weight |
| MEDCO50QT9 | 9mm | 50m | 16.79Kg |
| MEDCO80QT9 | 9mm | 80m | 19.66Kg |
| MEDCO100QT9 | 9mm | 100m | 21.58Kg |
| MEDCO120QT9 | 9mm | 120m | 23.5Kg |
| MEDCO150QT9 | 9mm | 150m | 26.37Kg |
| MEDCO200QT9 | 9mm | 200m | 31.16Kg |
Brand: Ritelite
Identifier: MEDCO_CW9
Brand new packaged items only.
Comes with a full manufacturer warranty (not including consumable products).
Please make use of any product reviews or youtube clips we have available to learn more about the item.
This item is usually delivered within 5 working day(s).
SSL Certified Secure website to ensure secure online ordering.
Please return the item/s if not suitable for a full refund (within 7 working days of receipt).
We guarantee security of all your personal details, we do not pass on any customer information.
Accept all payment methods including all major Credit Cards, Paypal and Amazon Payments.
Order online now using our Secure SSL Certified Secure website.
Add this product to your basket and come back at any time to complete the order.
Order by phone on 01737783101.
Order with an official purchase order by emailing [email protected]. We will check your account status or if you do not hold an account we will credit check your organisation, confirm and process your order. Please note the first order(s) will always need to be paid upfront unless you are a government linked organisation. Goods remain the property of Sitebox Ltd until paid for in full as per our full terms and conditions.
