RL-100 2S High Accuracy Dual Slope Laser

This is now a "Discontinued Product"

(Item No Longer Available - No Direct Replacement)

RL-100 2S High Accuracy Dual Slope Laser

Authorised Distributor

Discontinued! This item has been discontinued.

Quote Ref: @40320

Product ID: RL1002S

Manufacturer: Topcon

Warranty: Click here for info

Price: (£2,455.00 ex VAT) £2,946.00 (inc VAT)

Available at checkout!

Categories Products

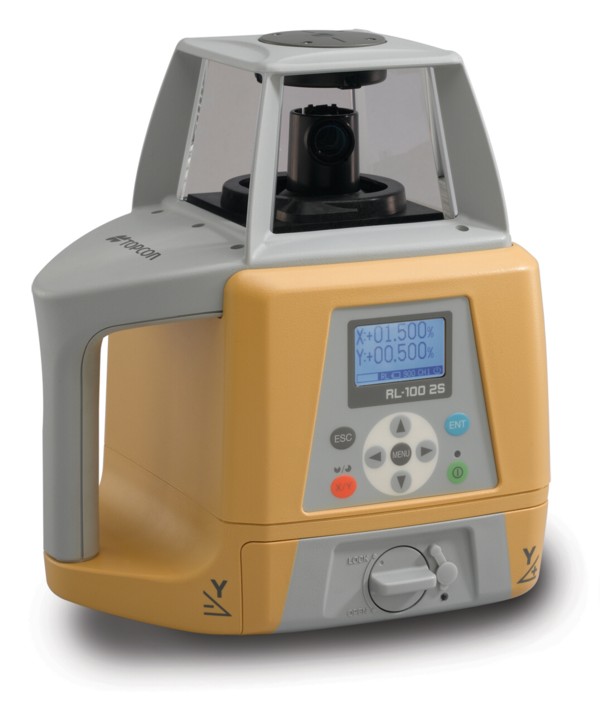

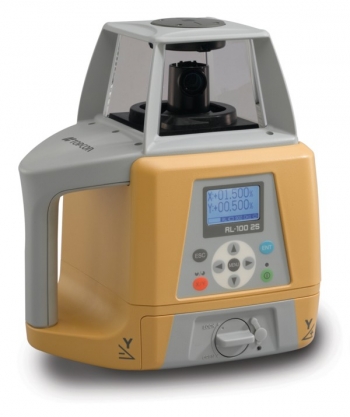

RL-100 2S High Accuracy Dual Slope Laser

Topcon's RL-100 Series revolutionary encoding system provides the highest grade repeatability, 5 arc seconds, of any other laser! No one even comes close. Setup-after-setup, time-after-time, you're always right on grade!

RL-100 2S features include:

5 arc second repeatability
Wide grade range (up to +/-25%) without slope blocks
Extra-long battery life (65 hrs)
Increased range - up to 2,500 ft. (770m)
Graphical display
Full function remote Fully automatic self-leveling

The RL-100 2S provides dual slopes up of +/-10% in single slope or up to an industry leading +/-25% dual slope. The RL-100 2S standard package includes the LS-80B laser sensor, sensor holder, and batteries. With the PRO package you'll get the dual display LS-80A plus the all-new RC-400 remote that allows complete control of the RL-100 2S up to 300' away!

Specifications

RL-100 2S

Horizontal/vertical	± 15" arc seconds, 3/32" inches @ 100'
Repeatability	6" arc seconds
Temperature drift	1"/C arc seconds per degree C
Repeatability	5 arc sec.
Horizontal Accuracy	±10 arc sec.
Grade Range (dual)	RL-100 2S: ±10 / ±25
Working Range	2,500 ft. (770m)
Rotation Speed	300/600/900rpm
Wave Length	685nm visible
Laser Class	Class 3
Operating Hours	65H (Alkaline), 50H( Ni-MH)
Environment	IPX6
Dims (w x h x d)	8.55” x 9.96” x 6.6”
	217mm x 253mm x 168mm
Warranty	2 year

Remote Control

RC-400	Yes (with PRO package only)
Range	two-way 1000 ft. (300m)
Environmental	IPX6
Power	3 AA alkaline
Dims (w x h x d)	2.36” X 6.1” X 1.4” (60mm X 155mm X 35mm)

Sensor

LS-80B	Yes
Receiving Rang	2,500 ft. (770m)
Display	Front
Environmental	IP66
Power	1 9V alkaline
Dims (w x h x d)	3” X 5.7” X .9” (76mm X 145mm X 23mm)
LS-80A	Yes (with PRO package only)
Receiving Rang	2,500 ft. (770m)
Display	Front and Rear
Environmental	IP66
Power	1 9V alkaline
Dims (w x h x d)	3” X 5.7” X .9” (76mm X 145mm X 23mm)

Brand: Topcon

Identifier: RL1002S

Product Document Download(s)

Product Brochure
