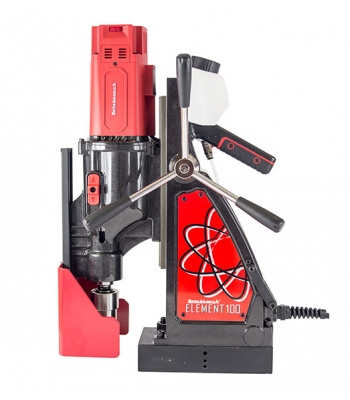

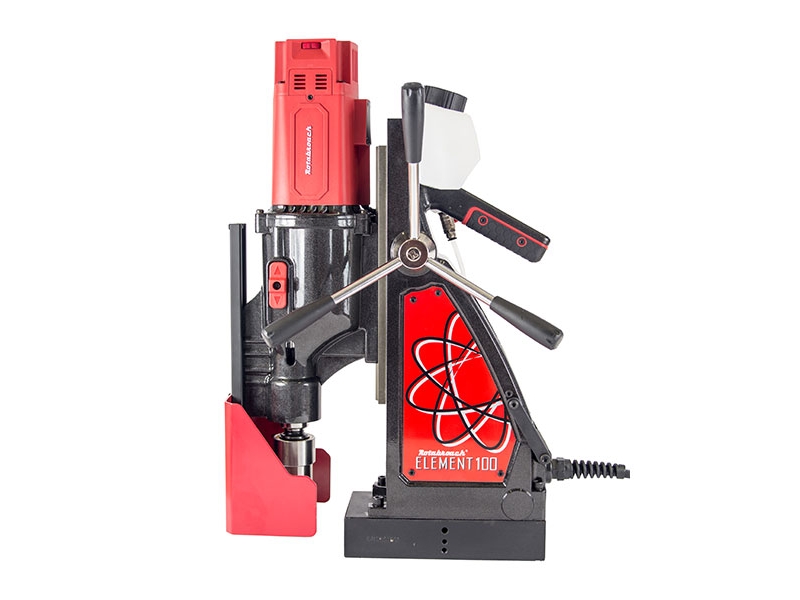

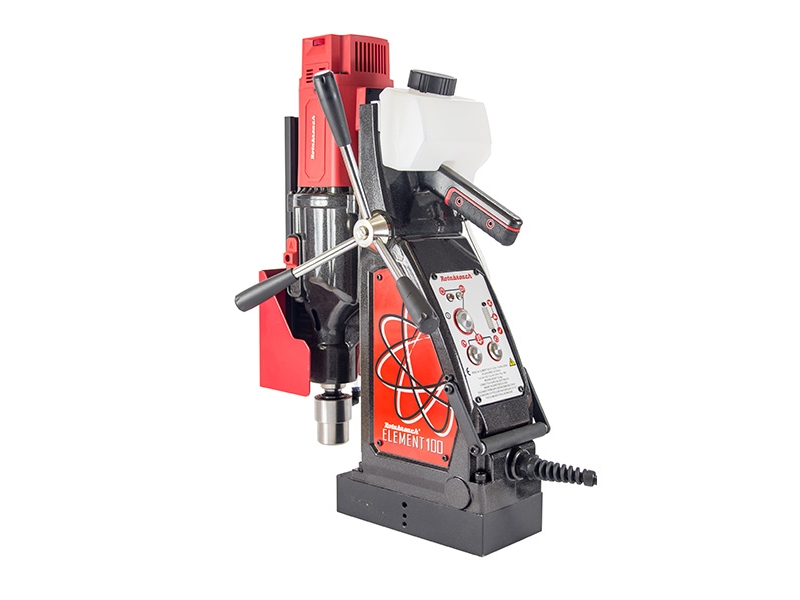

Rotabroach Element 100 2000W 240V/110V Magnetic Drilling Machine

  • Rotabroach’s largest machine with large diameter drilling and cutting depths.
  • Suitable for drilling up to 100mm diameter by 100mm depth.
  • The ‘Element 100’ offers forward and reverse functionality for tapping.
  • The ‘Element 100’ can be supplied as a swivel base or a non-swivel base.
  • The Element range uses a unique dual motor protection system prolonging the machines life and preventing unwanted wear.
Model Number Element 100/1 / Element 100/3
Motor Specification 110V 2000W / 230V 2000W
No Load RPM Gear 1: 45-129 RPMGear 2: 70-208 RPMGear 3: 150-434 RPMGear 4: 240-700 RPM
Max Hole Cutting Capacity ø100 x 100mm Deep – 31.75 with MT Drill
Overall Dimensions Height: 560mm / Width: 230mm with Capstan / Length: 460mm with Guard
Machine Weight 24.8kg
Magnetic Adhesion 20,000N
Magnet Size 228mm x 114mm

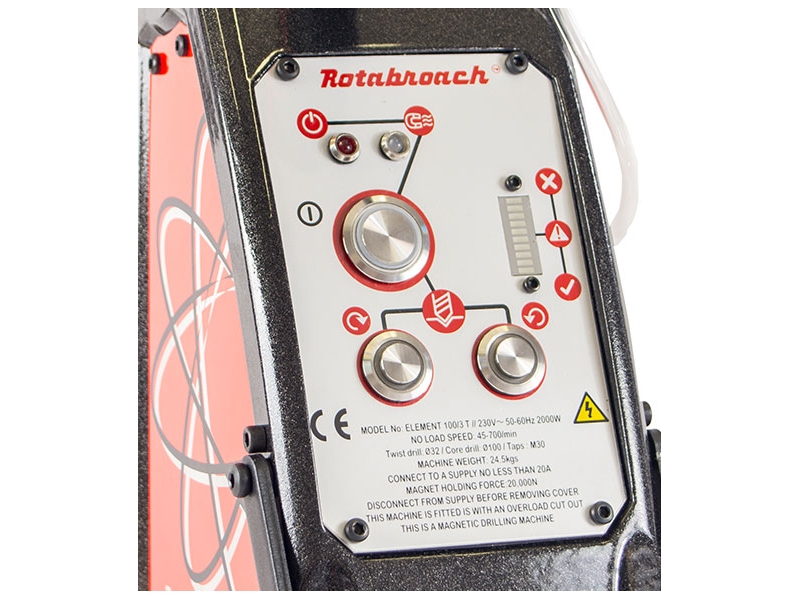

Safety Features Cutsmart™ Technology / Fixed Guard / Magnetic Detection

Brand: Rotabroach

Identifier: Element100

Product Document Download(s)

  Manual
