Scangrip MINI SLIM - SCA3012

Sturdy and extremely compact 3-in-1 hand lamp with flashlight function

The MINI SLIM is truly the swiss army knife of work lights. With its ultra-thin and compact design of only ø9 mm and 101 g, it is the perfect inspection lamp for reaching the most narrow and inaccessible work areas. This makes the lamp ideal as an inspection lamp.

The lamp’s light output can be adjusted in 2 levels: either 50 % or 100 % to obtain the optimal light output and operating time. The LED hand lamp has an operating time up to 5 hours.

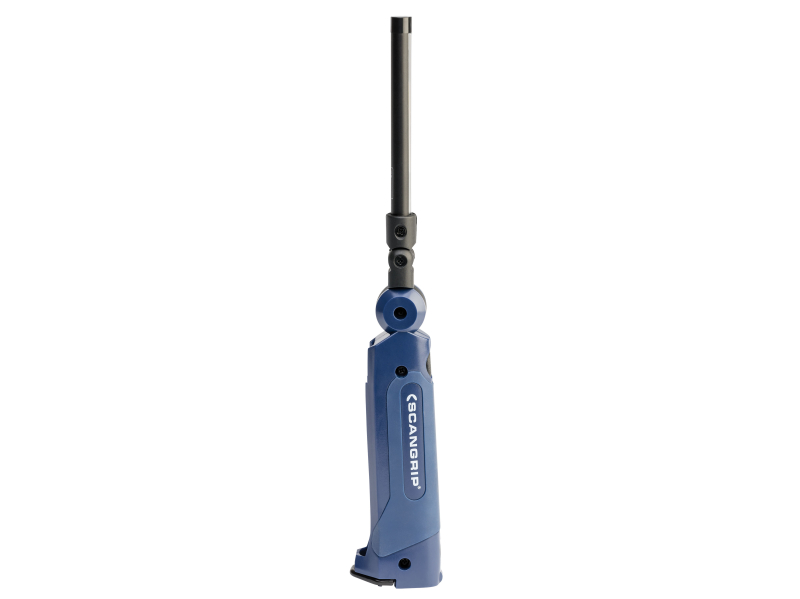

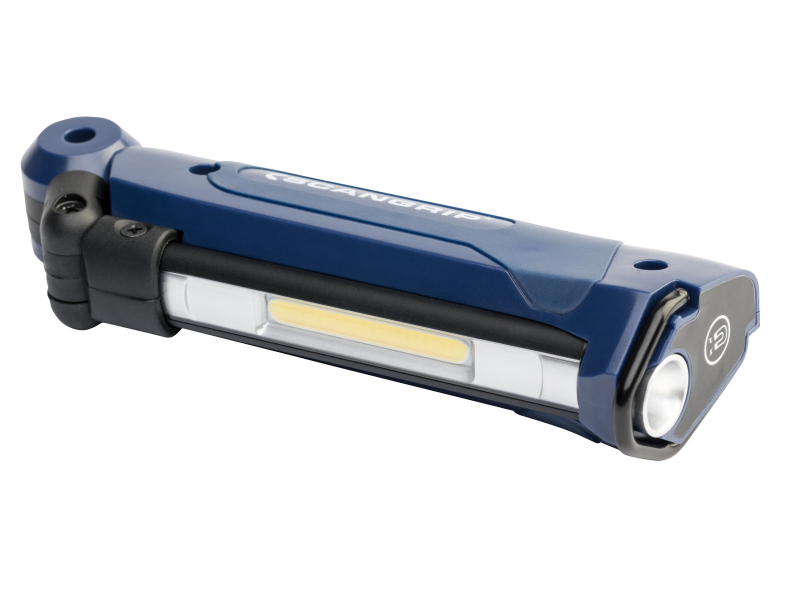

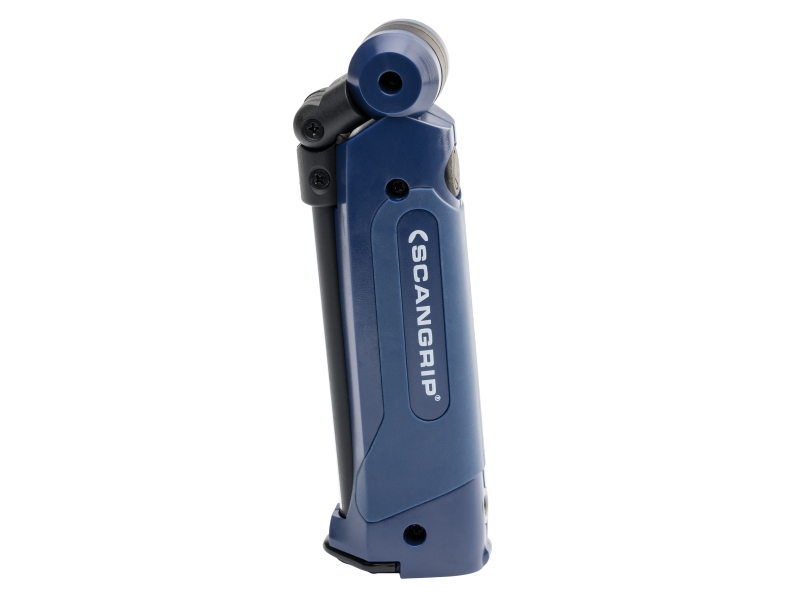

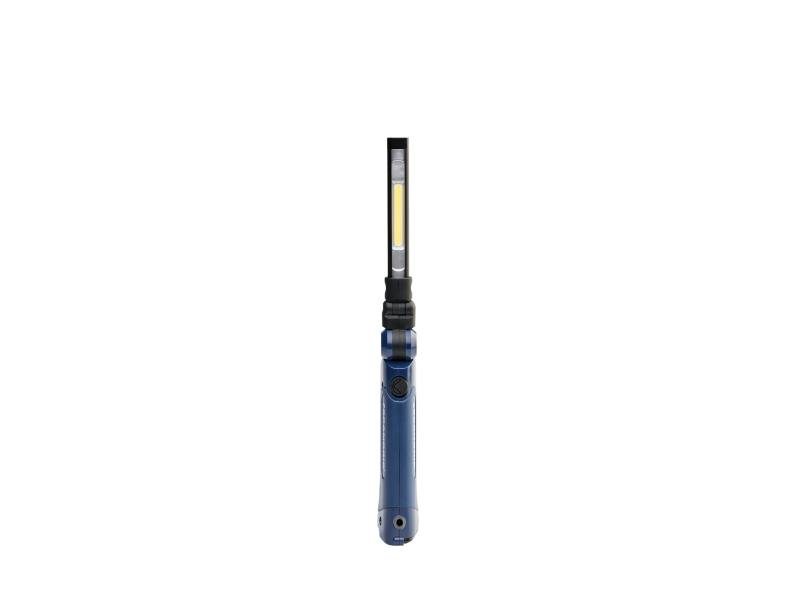

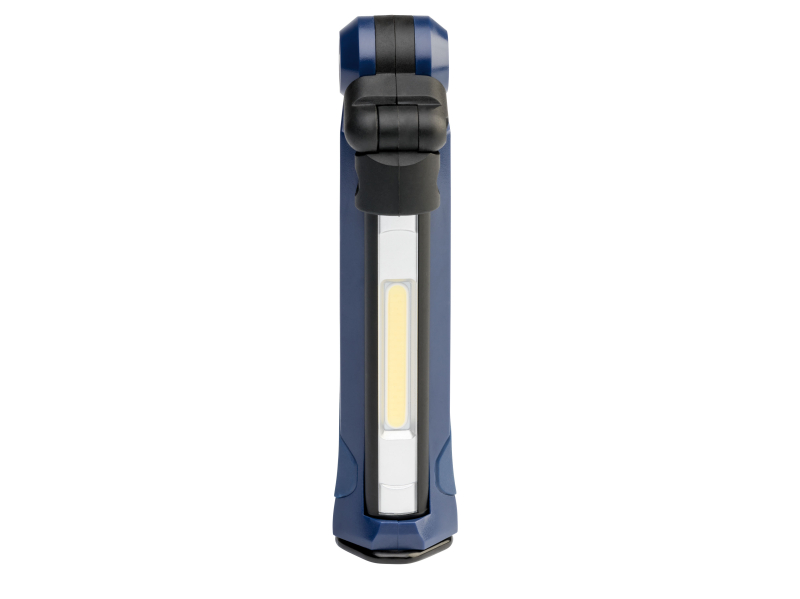

The MINI SLIM is designed with a 100 % foldable body and can be used as a traditional handheld LED light when fully folded. When completely folded the MINI SLIM is reduced to pocketsize making it exceptionally compact and portable. With the strong built-in magnet and hook you are granted maximum flexibility when positioning the lamp.

Equipped with a powerful 100 lumen spotlight, the MINI SLIM provides you with a flashlight function. When the lamp is folded, MINI SLIM can be used as a flashlight – a never-seen-before feature.

Why choose MINI SLIM?

• A compact and powerful 200 lumen 3-in-1 hand lamp
• Choose between 2 light settings: 50 % or 100 %
• Rechargeable with up to 5 hours operating time
• Flexible positioning with the strong built-in magnet and hook
• 3-in-1 design for complete flexibility

// The design of MINI SLIM is unique and covered by EU design patent RCD No 3451038.

• Net Weight (kg) - 0.10
• Length (mm) - 132.00
• Width (mm) - 41.00
• Height (mm) - 30.00
• Packaging - 4-colour box
• In the box - Lamp, charger cable, manual

Secondary Light:

• Luminous Flux, Max (Lumen) - 100
• Illuminance, Max (Lux) - 5200
• Beam Angle (°) - 25
• CRI - >80
• CCT - 6000
• Light Source Secondary - High power LED
• Illuminance Distance (Meter) - 0.50

Main Light:

• Luminous Flux, Max (Lumen) - 200
• Luminous Flux, Min (Lumen) - 100
• Illuminance, Max (Lux@0,5m) - 400
• Illuminance, Min (Lux@0,5m) - 150
• Illuminance Distance (Meter) - 0.50
• Light Source - COB LED
• LED performance (lm/w) - 170
• CCT (Kelvin) - 6000
• CRI - Ra > 80
• Adjustable Light Output - 2 steps
• Beam Angle Main - 120°

• Power source - Rechargeable Battery
• Battery type - Li-ion
• Battery capacity (mAh) - 1200
• Battery voltage (V) - 3.70
• Cable - 1 m USB to mini DC
• Charging voltage DC (V) - 5.00
• Charging current (A) - 1.00
• Charging input voltage (V) - 100-240V AC 50/60Hz
• Power Consumption (W) - 2.00
• Charger included - No

• Operating time with min. lumen (hours) - 5.00
• Operating time with max. lumen (hours) - 2.50
• Charging time (hours) - 3.00
• Ingress protection - IP30
• Operating temperature (°C) - -10 °C to +40 °C
• Impact resistance (meter) - 1.00
