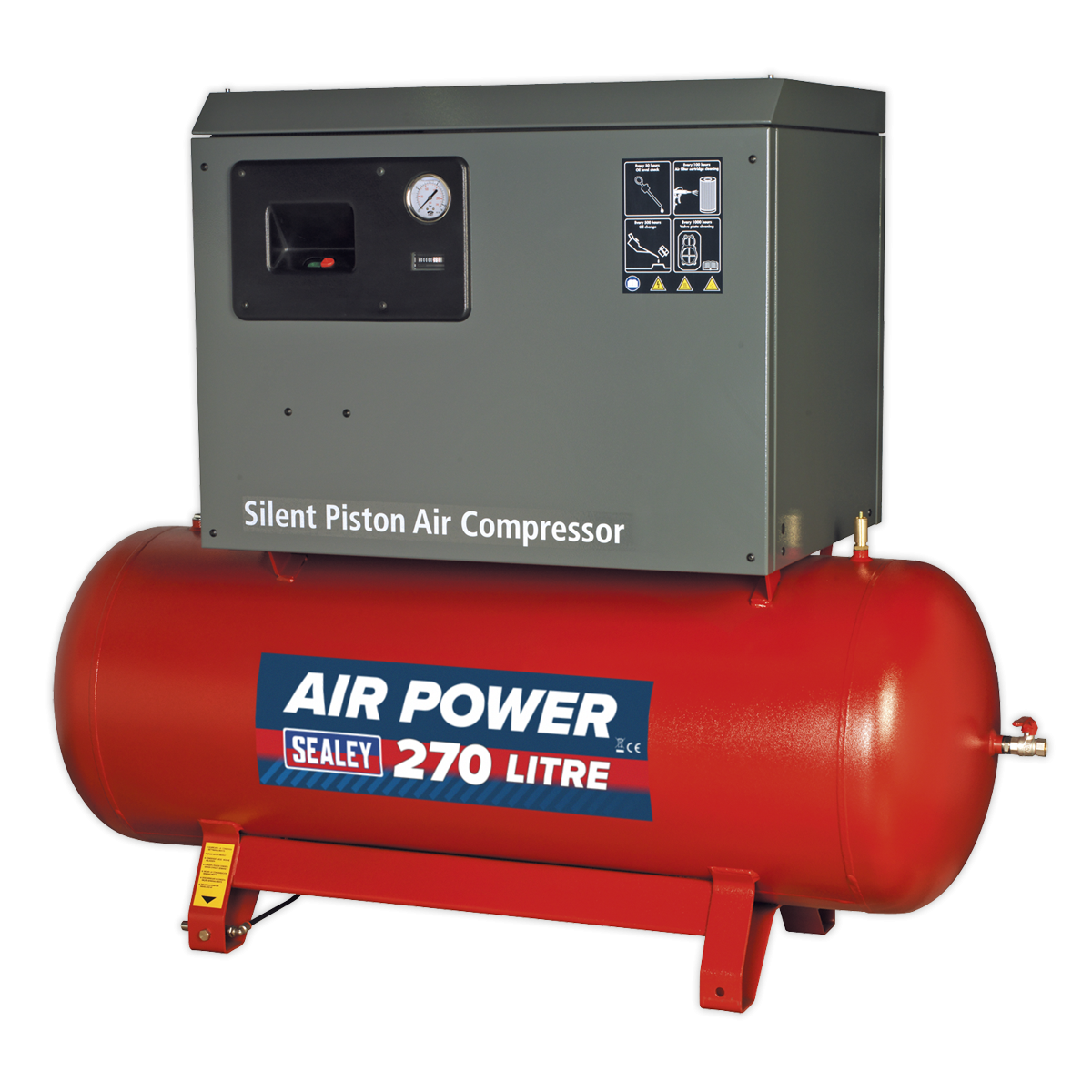

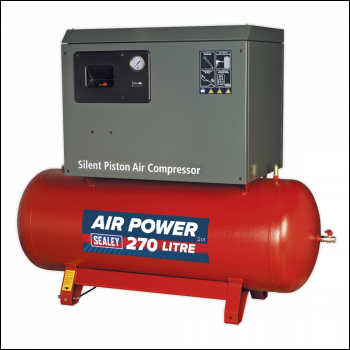

Sealey SAC42755BLN 270L Low Noise Belt Drive Air Compressor with Cast Cylinders 5.5hp 3ph 2-Stage

Authorised Reseller
Authorised Distributor

Free UK Mainland Delivery over £50 ex. VAT!

Available (Next Working Day Delivery (if ordered by 2pm))

Guaranteed Stock
Order now for delivery on
Wed 6th Nov 2024
1 Hour time slot

Quote Ref: @38862

Product ID: sealey_SAC42755BLN

Barcode: 5051747570375

Related Products: See all related products

Manufacturer: Sealey

Warranty: Click here for info

All Sealey products are covered by a minimum 1 year parts and labour guarantee. Hand Tools are covered by a no-quibble lifetime guarantee against manufacturing defects. Guarantees on our Premier Air Tools and Welding Transformers are conditional on completion and return of a simple registration guarantee card.

Lifetime Guarantee on Hand Tools Lifetime replacement warranty on all of our hand tool ranges. No quibble guarantee also covers individual items within sets. Excludes TRX-Star* T40 bits, breaker bar knuckles, drill bits, blades and engineering taps and dies.

5 Year Guarantee on All-Steel Vices 5-Year replacement parts warranty conditional on registering your purchase with us on a Guarantee Card. 2-Year on Economy versions.

3 Year Guarantee on Welding Transformers 3-Year parts and labour warranty on main power transformer of Arc, MIG and Spot Welders plus Plasma Cutters. Comprises 1-Year unconditional parts and labour warranty, followed by a further 2-Year parts and labour conditional on registering your purchase with us on a Guarantee Card.

2 Year Guarantee on Premier Viking 2-Year parts and labour warranty on our Premier Viking range of Jacking and Lifting equipment.

2 Year Guarantee on Premier Air Tools 2-Year parts and labour warranty. Comprises 1-Year unconditional parts and labour warranty followed by a further 1-Year parts and labour, conditional on registering your purchase with us on a Guarantee Card.

List Price: £3,799.95 4,559.94 inc VAT)

Web Price: 3,062.46 ex VAT) £3,674.95 (inc VAT)

3674.95 2024-12-05
Error! Sorry there has been a problem adding your items to the cart.
Available at checkout!
5 people have bought this item!

Sealey SAC42755BLN 270L Low Noise Belt Drive Air Compressor with Cast Cylinders 5.5hp 3ph 2-Stage

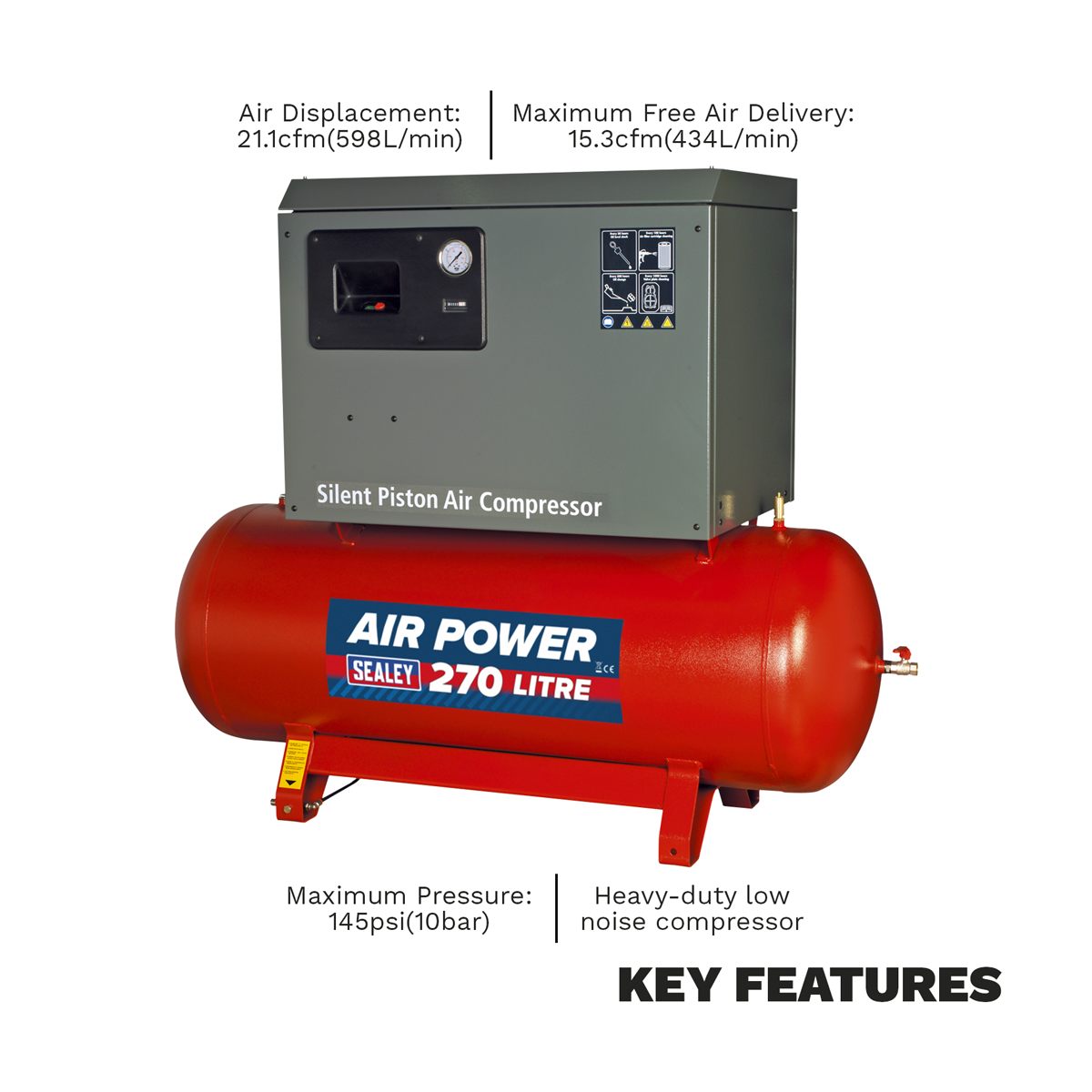

Heavy-duty low noise compressor suitable for garage, bodyshop and industrial applications. Fitted with cast iron cylinder head enabling slower revving and improved pump life. Fully enclosed, insulated design gives quiet running at just 69dB(A) (at 1m) and protects vital components from damage. Features fully automatic pressure cut-out switch and tank pressure gauge. Heavy-duty 3-phase electric motor with soft start feature. Control box features tachometer for monitoring use and optimizing service times.

  • Air Displacement: 21.1cfm(598L/min).
  • Maximum Free Air Delivery: 15.3cfm(434L/min).
  • Maximum Pressure: 145psi(10bar).
  • Heavy-duty low noise compressor suitable for garage, bodyshop and industrial applications.
  • Fitted with cast iron cylinder head enabling slower revving and improved pump life.

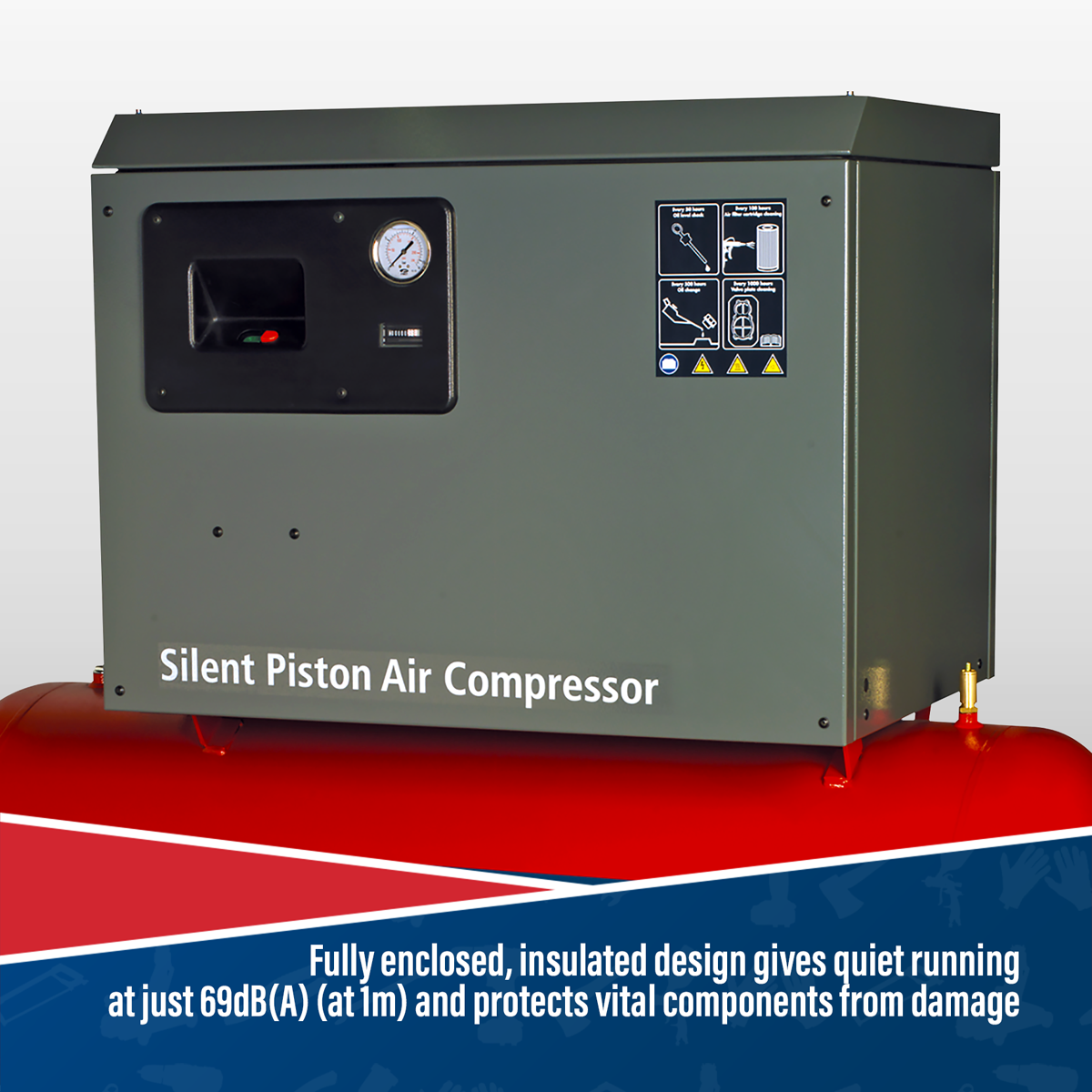

  • Fully enclosed, insulated design gives quiet running at just 69dB(A) (at 1m) and protects vital components from damage.

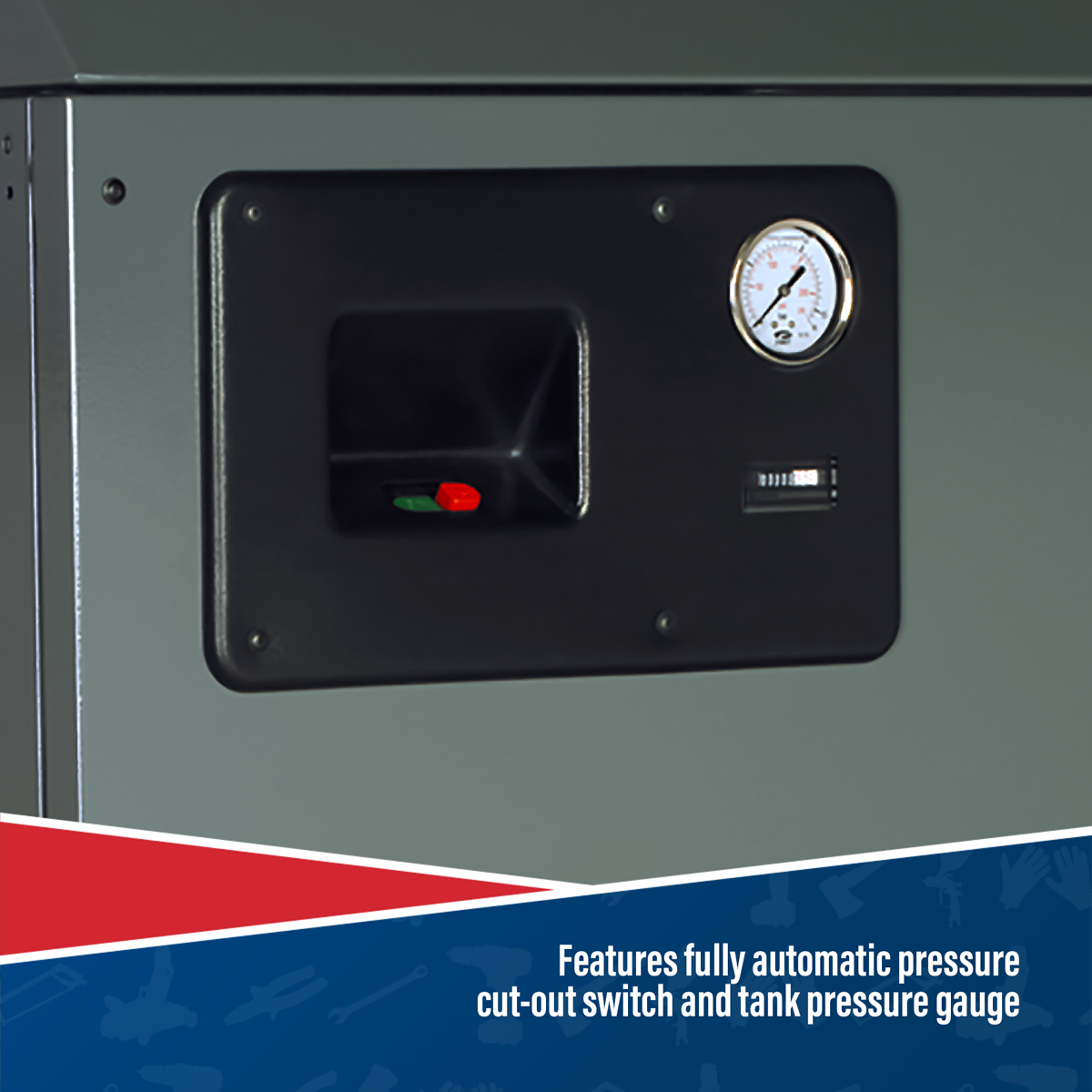

  • Features fully automatic pressure cut-out switch and tank pressure gauge.
  • Heavy-duty 3-phase electric motor with soft start feature.

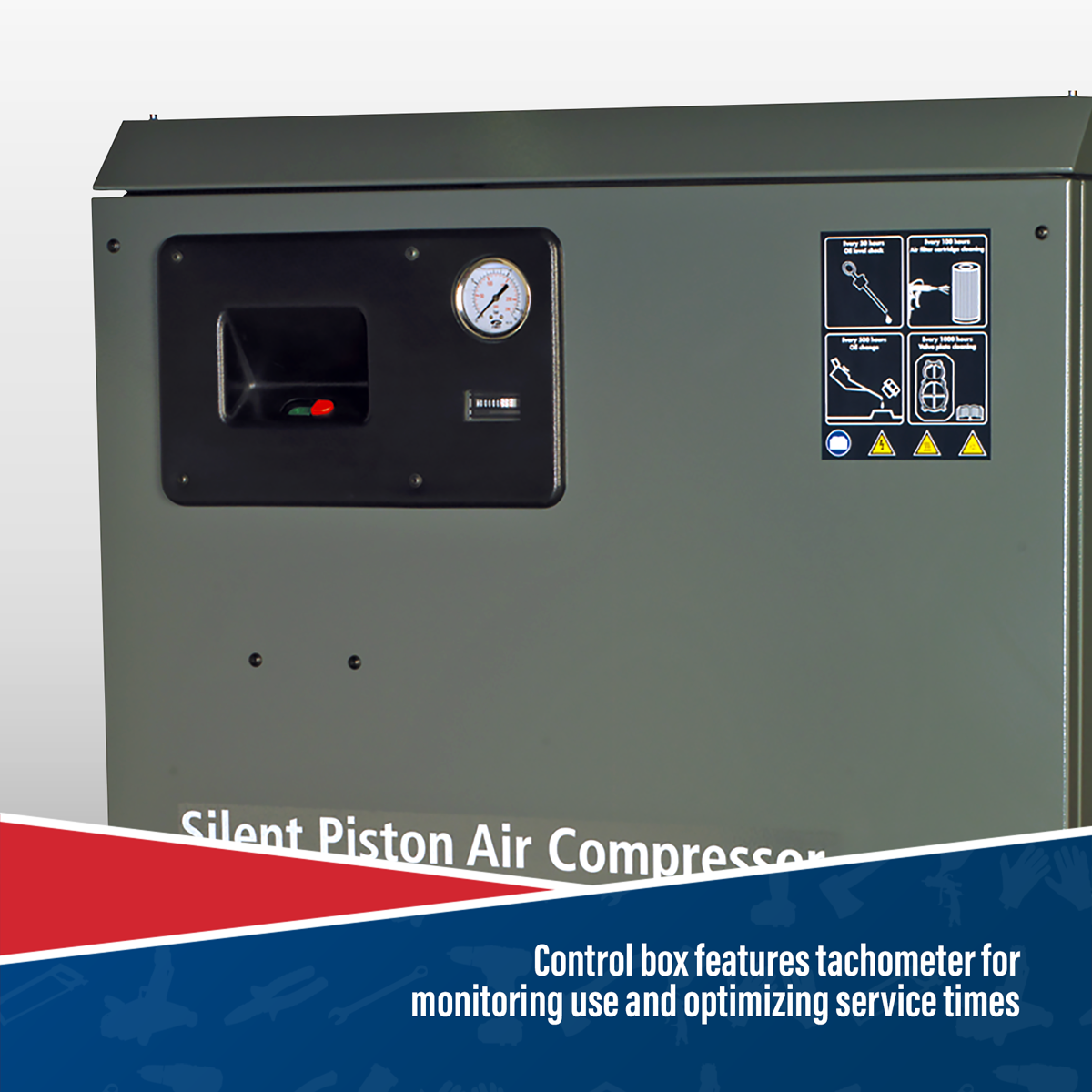

  • Control box features tachometer for monitoring use and optimizing service times.
  • This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
  • Model No. SAC42755BLN

Technical Specifications

  • Model No SAC42755BLN
  • Air Displacement cfm(L/min): 21.1(598)
  • Brand: Sealey
  • Maximum Free Air Delivery cfm(L/min): 15.3(434)
  • Maximum Pressure: 145psi(10bar)
  • Minimum Rated Supply: 32A
  • Motor Output: 5.5hp
  • Nett Weight: 198kg
  • Noise Level: 69dB(A)
  • Oil Capacity: 1.2L
  • Outlet: 1/2"BSP Female Tap
  • Phase: 3ph
  • Receiver Capacity: 270L
  • Motor Output: 5.5hp
  • Supply: 415V
  • Phase: 3ph
  • Minimum Rated Supply: 32A
  • Speed: 1516rpm
  • Noise Level: 69dB(A)
  • Air Displacement cfm(L/min): 21.1(598)
  • Maximum Free Air Delivery 15.3(434)
  • Maximum Pressure: 145psi(10bar)
  • Receiver Capacity: 270L
  • Outlet: 1/2" BSP Female Tap
  • Size (W x D x H): 1550 x 600 x 1260mm
  • Weight: 198kg
  • Size (W x D x H): 1550 x 600 x 1260mm
  • Speed: 1516rpm
  • Supply: 415V

Weight: 206kg

Warranty: 1 year

Case Quantity: 1

Barcode: 5051747570375

Model Number: SAC42755BLN

Instructions for the Sealey SAC42755BLN 270L Low Noise Belt Drive Air Compressor with Cast Cylinders 5.5hp 3ph 2-Stage

Parts Diagram(s) for the Sealey SAC42755BLN 270L Low Noise Belt Drive Air Compressor with Cast Cylinders 5.5hp 3ph 2-Stage

Material Safety Data Sheet for the Sealey SAC42755BLN 270L Low Noise Belt Drive Air Compressor with Cast Cylinders 5.5hp 3ph 2-Stage
