Sealey TA203 15-Function Digital Automotive Multimeter with Bar Graph/PC Link

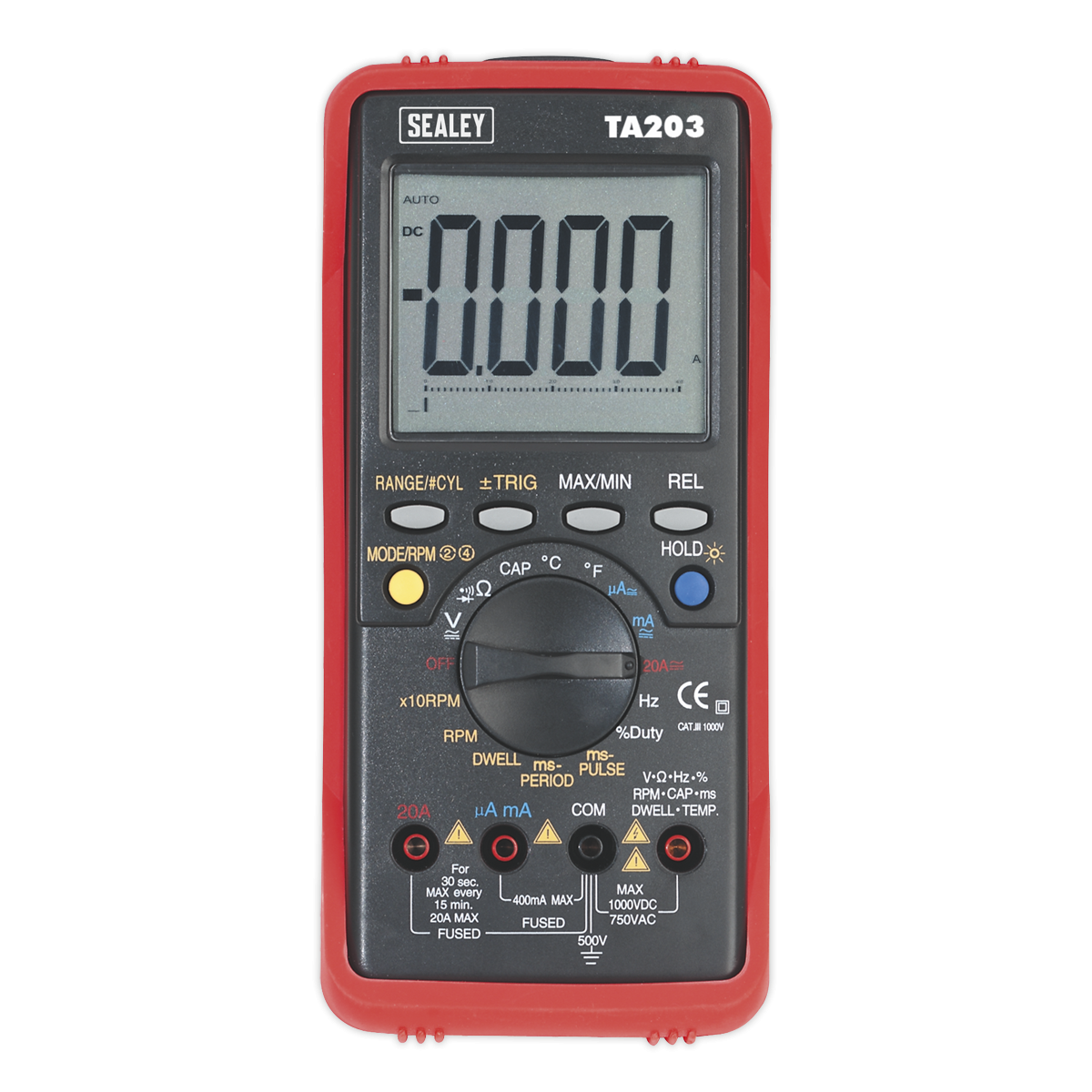

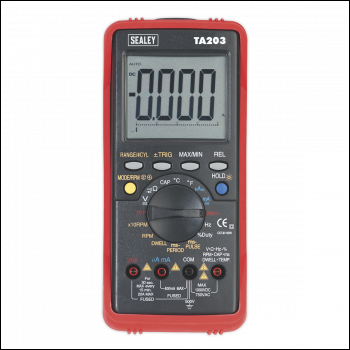

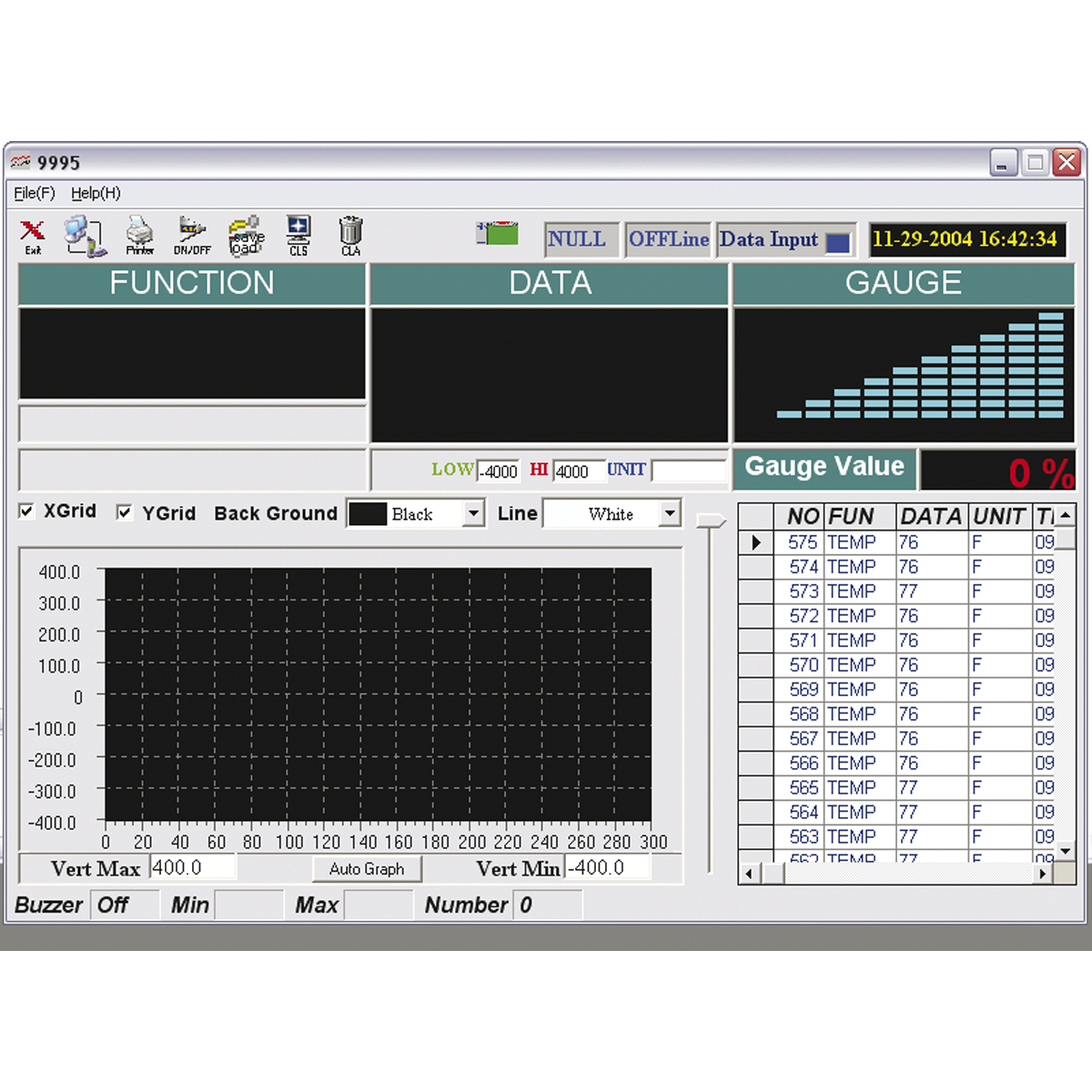

Extra-large, high-contrast LCD display with 36mm high digital read-out, bar graph and back light. Durable case with probe storage and integral stand, suitable for the toughest workshop conditions. Features millisecond pulse-width function for accurate measurement of fuel injection systems. Includes auto-ranging, data-hold and auto-power-off. Bar-graph is essential for the correct testing of lambda sensors. Supplied with inductive coupler (IC) with adjustable sensitivity, for fast reading of engine rpm, test leads (probe and clip) and thermocouple plus USB interface cable and Windows ME/XP/Vista software for downloading data to PC.

  • Integrated circuit.
  • High-visibility, back lit, LCD display with bar graph.
  • PC interface.
  • 15-Functions including pulse-width measurement for fuel injectors, idle air control motors and electronic transmission control systems.
  • Auto-ranging and auto-power-off.
  • Suitable for AC and DC circuits.

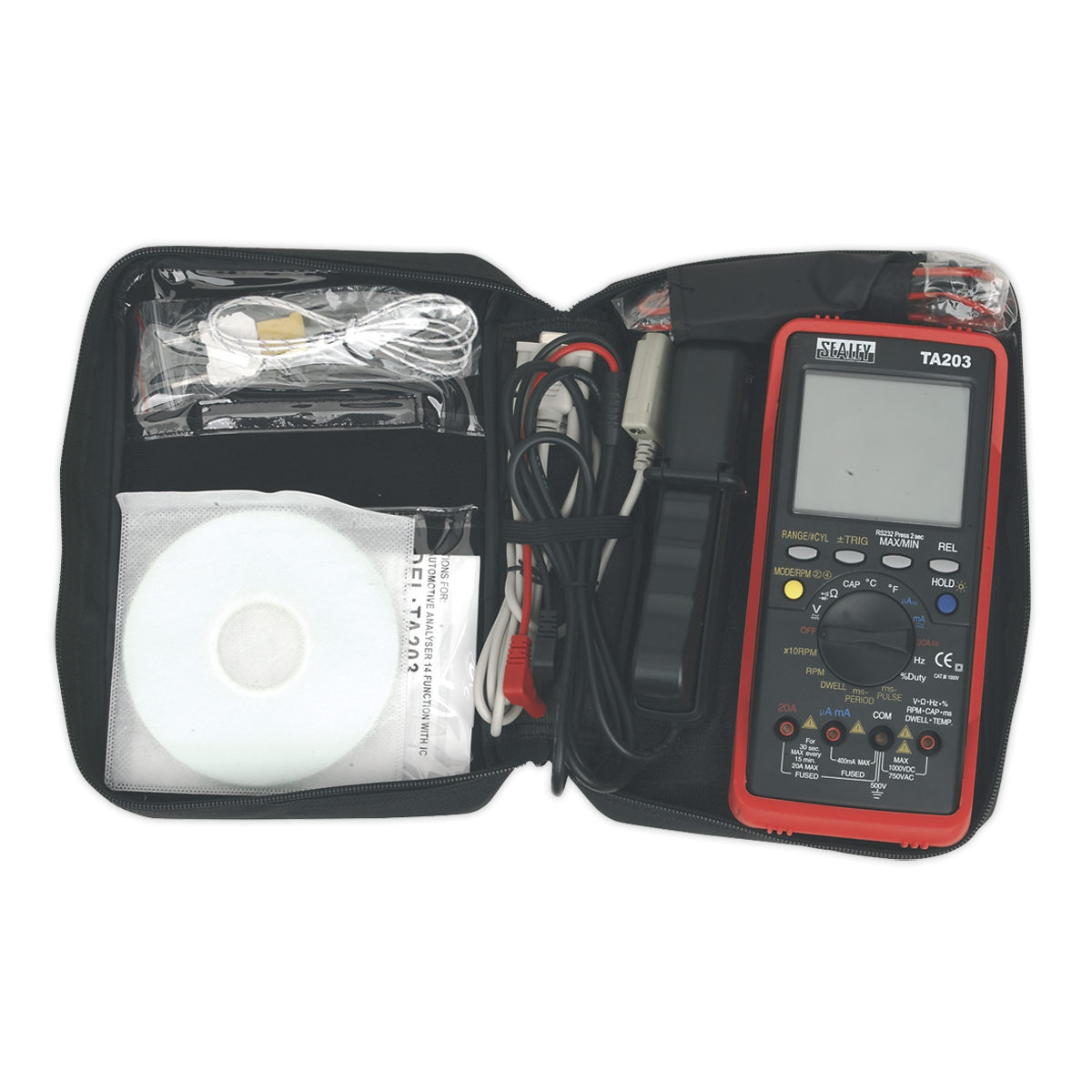

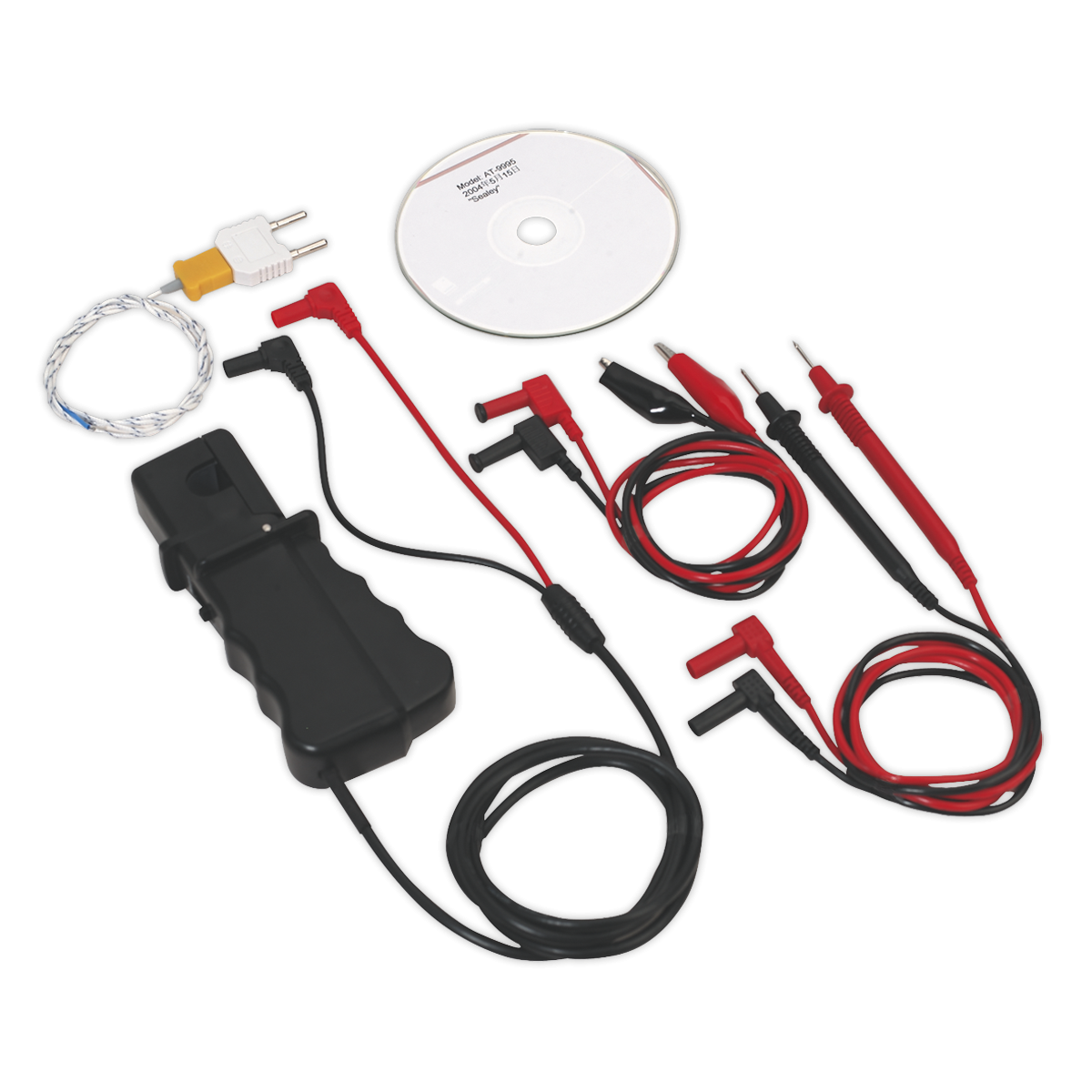

  • Supplied with test leads (probe and clip), inductive coupler (IC) with adjustable sensitivity, K-type temperature probe, PC Windows ME/XP/Vista software and USB interface cable, operating instructions.
  • Model No. TA203

Technical Specifications

  • Model No TA203
  • Brand: Sealey
  • Nett Weight: 605g
  • Tach (rpm): 4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke & DIS; 300-4000 (x1)rpm, 300-6000 (x10)rpm
  • Dwell: 1Cyl 0-360°, 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36°, 12Cyl 0-30°
  • AC Voltage: 400mV, 4V, 40V, 400V, 750V (Auto-Ranging, except 400mV)
  • DC Voltage: 400mV, 4V, 40V, 400V, 1000V (Auto-Ranging)
  • AC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA)
  • DC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA)
  • Capacitance: 40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging)
  • Frequency: 5Hz, 50Hz, 500Hz, 5kHz, 30kHz (Auto-Ranging)
  • Duty Cycle: 0.1-99.9%
  • Period: 2-20ms
  • Pulse Width: 2-10ms
  • Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging)
  • Continuity: <150Ω
  • Temperature: -20 to +760°C/-4 to +1400°F
  • IR Temperature: No
  • Diode Check: Yes (Typical Test Current 0.3mA)
  • Transistor Test: No
  • Back Light: Yes
  • Bar Graph Display: Yes
  • Display Hold: Yes
  • Auto-Ranging: Yes
  • Inductive Coupler: Yes
  • PC Interface: Yes
  • Digits Height: 36mm
  • Auto Power Off: Yes
  • Low Battery Indicator: Yes
  • Batteries (supplied): 9V (PP3)
  • Hi-Impact Case: Yes
  • Size (L x W x D): 215 x 100 x 60mm
  • Weight: 605g

Weight: 1.36kg

Warranty: 1 year

Case Quantity: 10

Barcode: 5024209700399

Model Number: TA203

Instructions for the Sealey TA203 15-Function Digital Automotive Multimeter with Bar Graph/PC Link

Parts Diagram(s) for the Sealey TA203 15-Function Digital Automotive Multimeter with Bar Graph/PC Link

Material Safety Data Sheet for the Sealey TA203 15-Function Digital Automotive Multimeter with Bar Graph/PC Link
