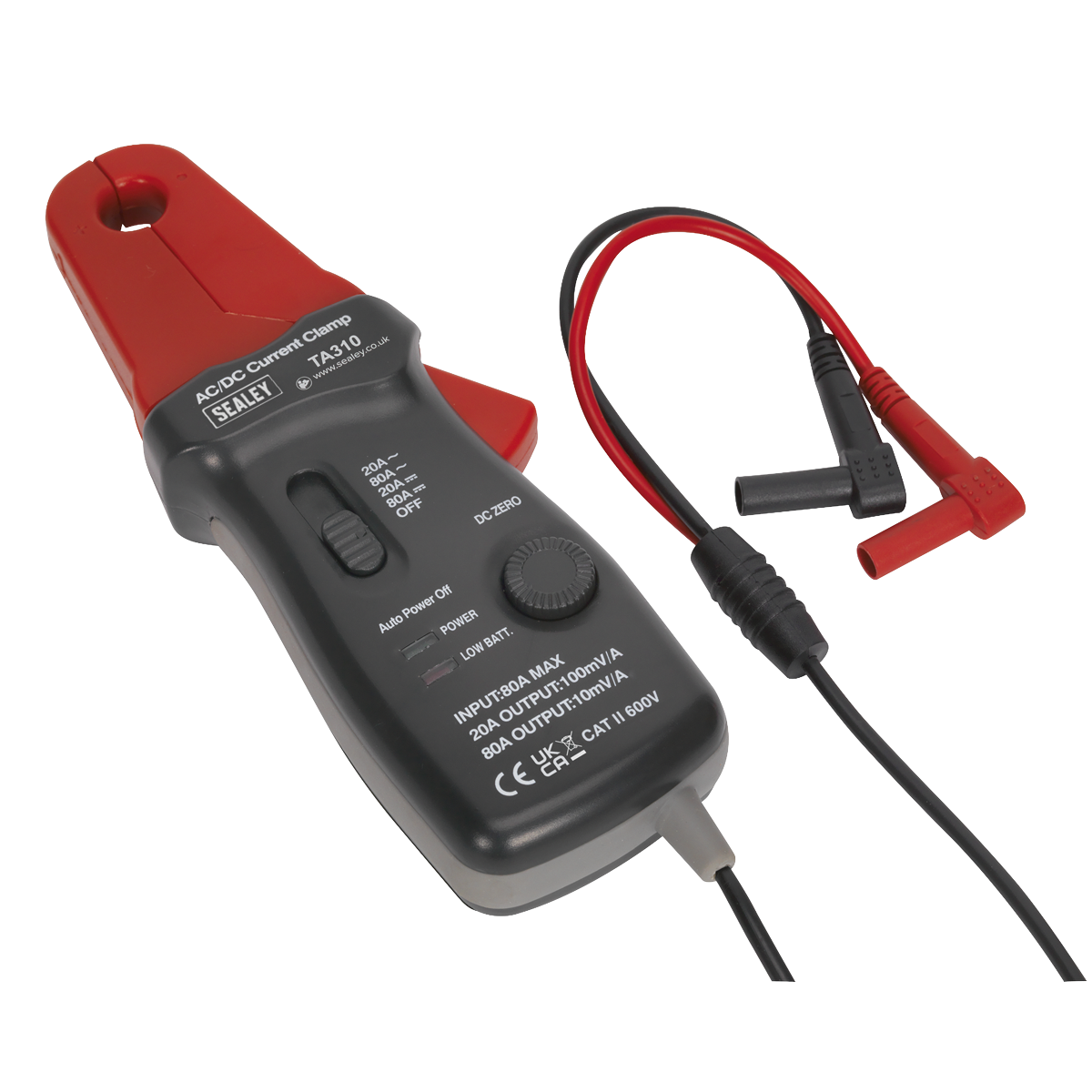

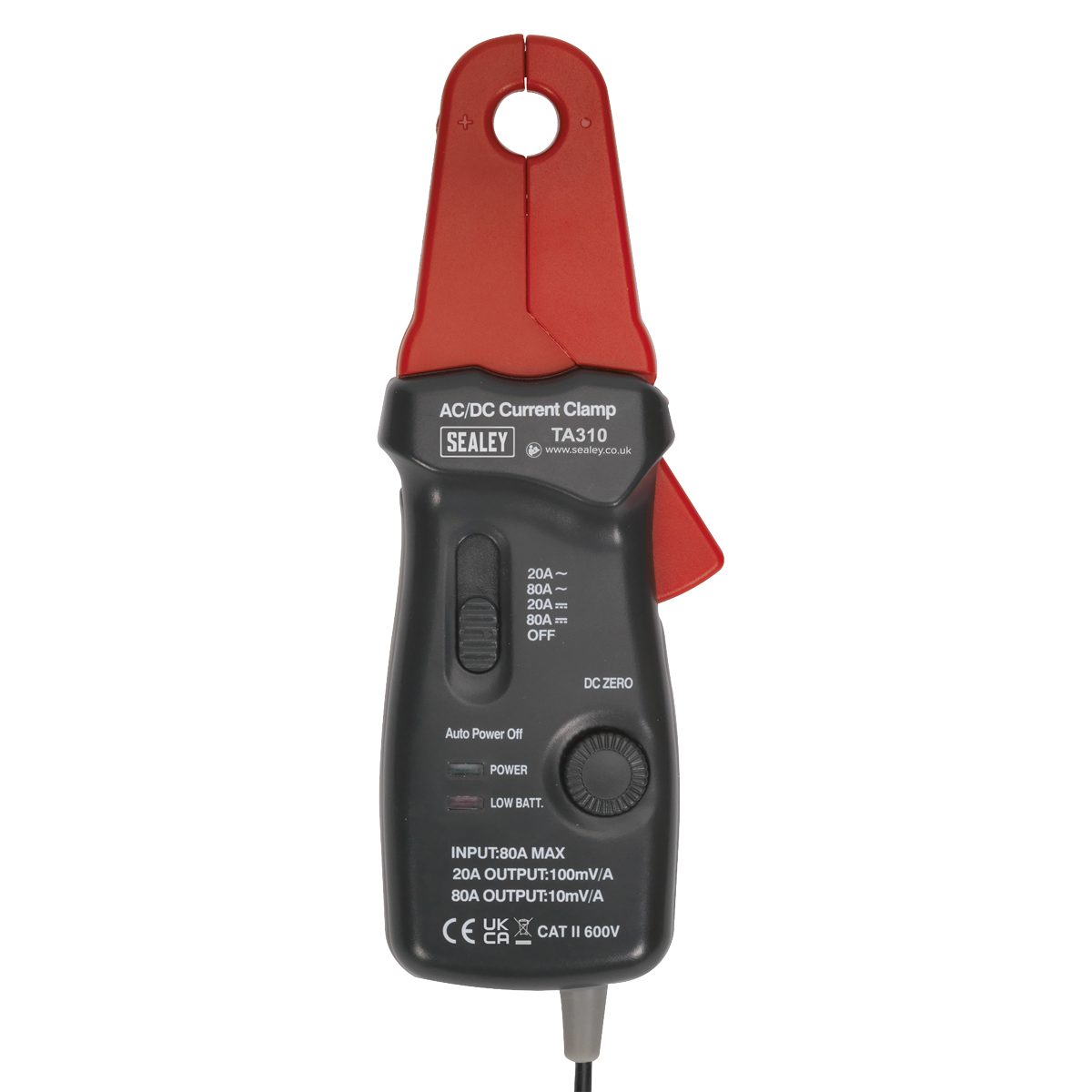

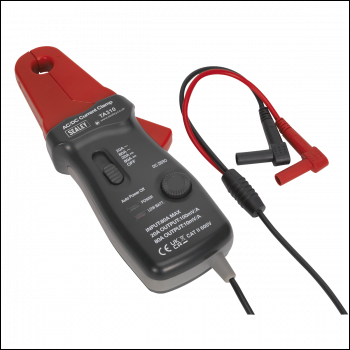

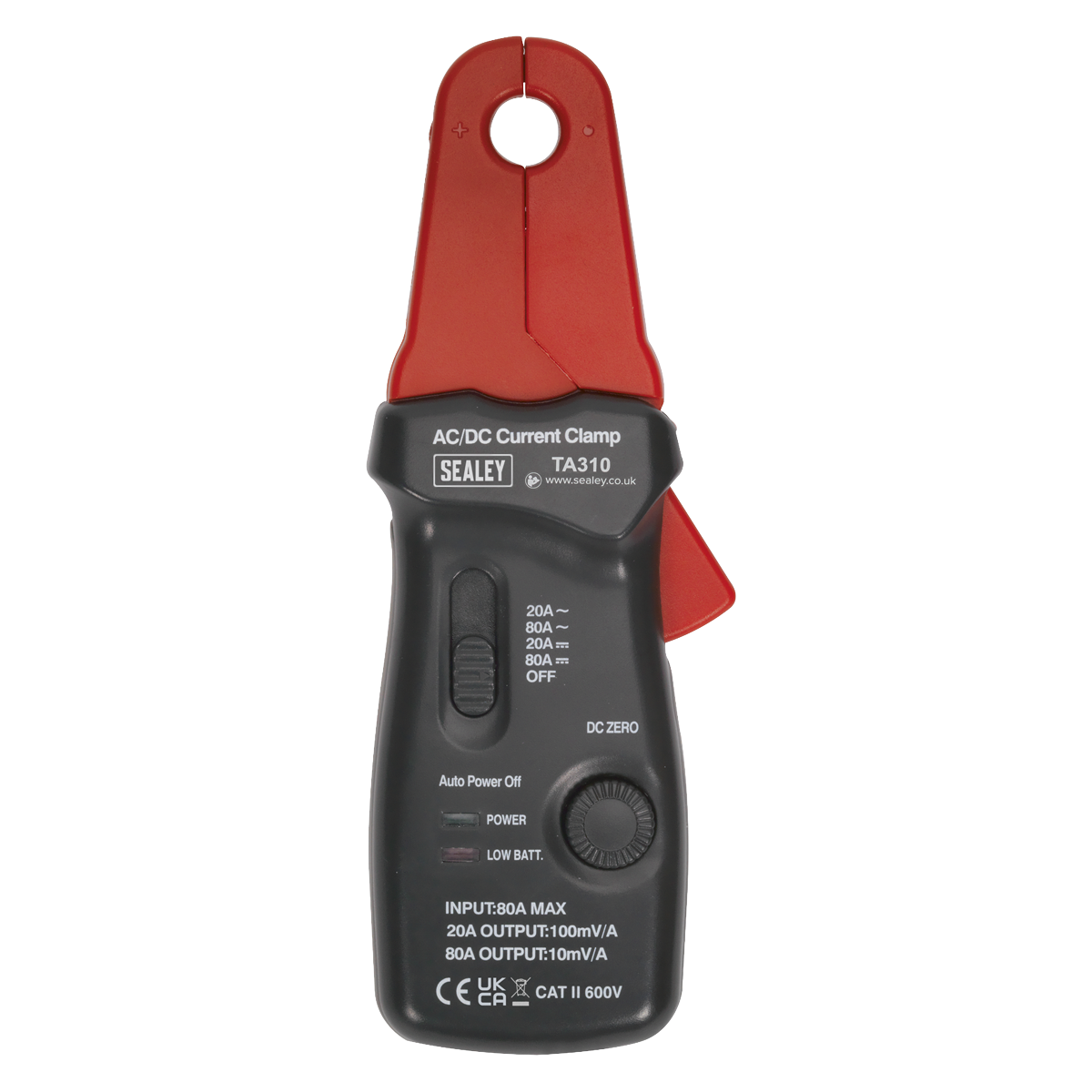

Sealey TA310 Current Clamp AC/DC 20A/80A 12mm

Designed for use with a standard multimeter and measures current draw from vehicle components in situ. Suitable for measuring both AC and DC current, without breaking into the circuit. Fitted with 4mm banana connectors and supplied in storage pouch. Powered by 9V battery (supplied). Can also be used with an oscilloscope using a suitable BNC conversion adaptor.

  • Designed for use with a standard multimeter and measures current draw from vehicle components in situ.
  • Suitable for measuring both AC and DC current, without breaking into the circuit, with a 20A and 80A setting for accurate measurement.
  • Features a Ø12mm clamp ideal for testing individual wires.
  • Fitted with 4mm banana connectors and supplied in storage pouch.
  • Powered by 9V battery (supplied).
  • Can also be used with an oscilloscope using a suitable BNC conversion adaptor.
  • Model No. TA310

Technical Specifications

  • Model No TA310
  • Brand: Sealey
  • Nett Weight: 0.31kg
  • TA310 Captured Conductor Size: Ø8mm maximum
  • Low Battery Indicator: LED red
  • Operating Temperature: 0°C to 50°C.
  • Storage Temperature: -15°C to 50°C.
  • Battery Type: 9V DC
  • Typical Battery Life: 80hrs (alkaline)
  • Weight: 240g
  • TA310 Dimensions (H x W x D): 190mm x 70mm x 38mm
  • Output Connection: Banana plugs (red & black)
  • 20A (output: 100mV/A=1mV/10mA): <2A use DC or rms AC for 200mV range of the multimeter,>2A use DC or rms AC for 2V range of the multimeter.
  • 80A (output: 10mV/A): DC or rms AC for 200mV range of the multimeter.

Weight: 0.371kg

Warranty: 1 year

Case Quantity: 1

Barcode: 5051747779686

Model Number: TA310

Instructions for the Sealey TA310 Current Clamp AC/DC 20A/80A 12mm

Material Safety Data Sheet for the Sealey TA310 Current Clamp AC/DC 20A/80A 12mm

Brand: Sealey

Identifier: TA310
