SED Gas Bottle Storage Cage - 1.8m x 1.8m x 1.2m Gas Cage - c/w Highly Flammable Sign

Free UK Mainland Delivery over £50 ex. VAT!

Available (Estimated Delivery Time 2-3 Working Days)

Guaranteed Stock
Order now for delivery on
Wed 27th Nov 2024

Quote Ref: @51013

Product ID: TSGSC17

Related Products: See all related products

Manufacturer: SED

Price: 416.66 ex VAT) £499.99 (inc VAT)

499.99 2024-12-21
Error! Sorry there has been a problem adding your items to the cart.
Available at checkout!
196 people have bought this item!

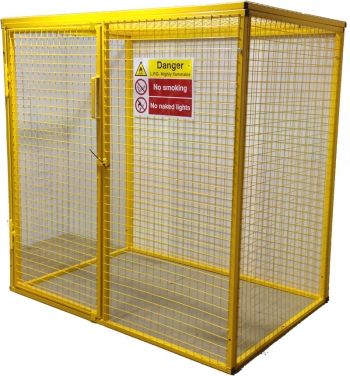

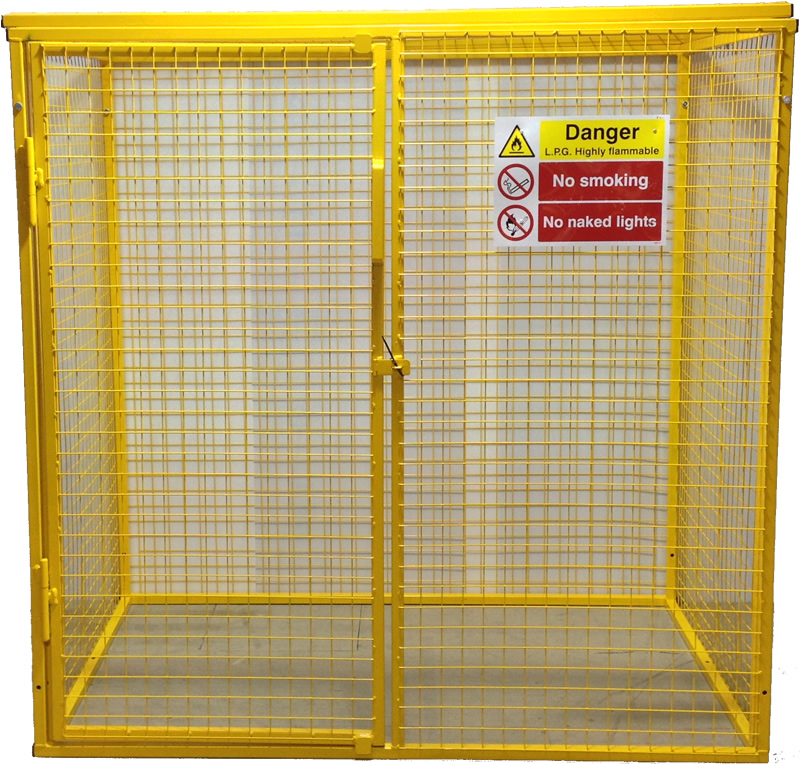

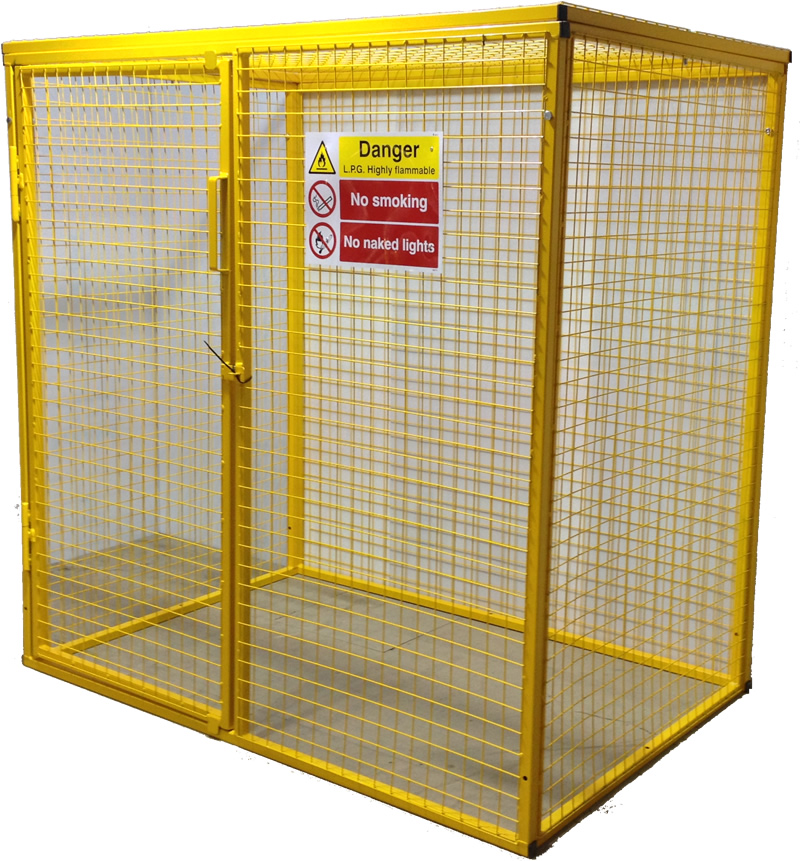

SED Gas Bottle Storage Cage - 1.8m x 1.8m x 1.2m Gas Cage - c/w Highly Flammable Sign

Weight 80kg

Height 1.8m x Width 1.8m x Depth 1.2m

This gas bottle cage is supplied with a heavy duty 40mm brass padlock free of charge and a highly flammable sign.

Gas bottle storage cages are the ideal solution to provide secure site storage for gas bottles. This is the most competitively priced gas bottle cage on the market! As used by British Councils and Local Authorities!

Gas Cages come pre drilled to enable easy bolting down.

All gas cages come flat packed with all the necessary nuts and bolts and takes just 5 minutes to be assembled.

Highly Flammable Warning Sign included.

Gas Bottle Storage Information

Brand: SED

Identifier: TSGSC17

Gas Bottle Storage Information

Published on Tue 9th April 2013 by M Macdonald

Small Storage / Display (up to 70kg)

  1. No more than five bottles should be allowed on display with total contents no more than 70kg.
  2. Bottles larger than 20kg should not be displayed in shops eg 47kg cylinders.
  3. If the shop is below residential premises then no more than 15kg should be stored/ displayed.
  4. No more than four bottles should be connected for demonstrating at any one time (total weight no more than 50kg).
  5. Do not display on staircases, near emergency exits or near to flammable materials.
  6. Bottles must be treated as FULL unless they are dummy bottles or have been certified as gas free. Only five cylinders are allowed - even if some of them are empty.

Storage up to 400KG

Quantities of LPG greater than those described above must be kept in a properly constructed store.

  1. The storage area should be at least 1m from a site boundary, building etc. unless a fire wall is provided.
  2. Only vehicles delivering LPG should be allowed within 1m of the storage area.
  3. No opening into buildings, cellars or pits should be within 2m of an LPG storage area.
  4. No flammable liquids, combustible, corrosive or oxidising material should be stored within 3m of an LPG store. Compressed oxygen must be kept 10m away from all flammable gases; these include propane, butane and dissolved acetylene.
  5. The area should be kept clear of weeds and rubbish.
  6. The storage of LPG should not hinder or endanger the means of escape from the premises.
  7. The extent of the storage area should be clearly marked and suitable notices displayed prominently (available from Flogas).
  8. Appropriate steps should be taken to prevent tampering and vandalism. In many cases it may be appropriate to enclose the storage area in a lockable cage.
  9. The same restrictions apply to empty cylinders as to full ones.

Storage above 400KG

For larger storage, other safety requirements exist, including the maintenance of a minimum separation distance between bottle storage and any boundary, building or fixed source of ignition. This is determined by the total amount of LPG stored and the size of the largest stack of bottles - whichever gives the greatest distance. In certain circumstances this separation distance may be reduced by the use of a radiation wall. By complying with these separation distances and other safety requirements, Flogas are able to store upwards of 200 tonnes of bottles at our filling terminals.

For further information on cylinder storage please consult the LPGA Code of Practice no.7, available from the LP Gas Association, or get in touch with the Flogas Technical Department.

Gas Bottles Sizes Available

If you need to work out how many bottles fit in the cages above please find below a list of some of the gas bottles available.


Cylinder Type/Size Height Diameter
Butane: 4.5kg 340mm 240mm
Butane: 6kg BBQ Gas 314mm 306mm
Butane: 7kg 495mm 256mm
Butane: 15kg 580mm 318mm
Propane: 3.9kg 340mm 240mm
Propane: 5kg Patio Gas® 314mm 306mm
Propane: 6kg 495mm 256mm
Propane: 13kg Patio Gas 580mm 315mm
Propane: 13kg 580mm 315mm
Propane: 19kg 800mm 315mm
Propane: 47kg 1290mm 375mm
