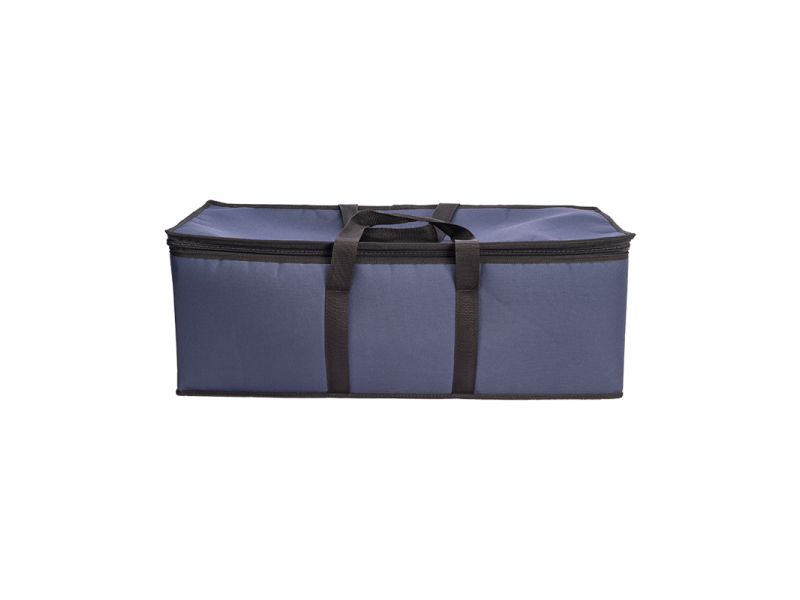

Sigen 2plus Signal Transmitter Electricians Kit with Carry Bag, Signal Clamp & 3 Pin Plug Connector

Authorised Reseller
Authorised Distributor

Free UK Mainland Delivery over £50 ex. VAT!

Available (Next Working Day Delivery (if ordered by 2pm))

Nationwide Delivery
Order now for delivery on
Tue 26th Nov 2024
1 Hour time slot

Quote Ref: @83003

Product ID: SIGEN_2Plus_Electricians_Kit

Related Products: See all related products

Manufacturer: PACT Services

Warranty: Click here for info

PACT services give 12 months warranty which covers labour and parts but excludes wear and abuse.

Price: 499.95 ex VAT) £599.94 (inc VAT)

599.94 2024-12-24
Error! Sorry there has been a problem adding your items to the cart.
Available at checkout!
19 people have bought this item!

Sigen 2plus Signal Transmitter Electricians Kit with Carry Bag, Signal Clamp & 3 Pin Plug Connector



P.A.C.T Services Limited first started designing and manufacturing locators in 1999. We have made significant progress in the creation and production of our own brand of pipe and cable location equipment from the original TOMKAT SIGEN through to the brand new TOMKAT & SIGEN range which have established themselves as industry standard cable and pipe location tools.

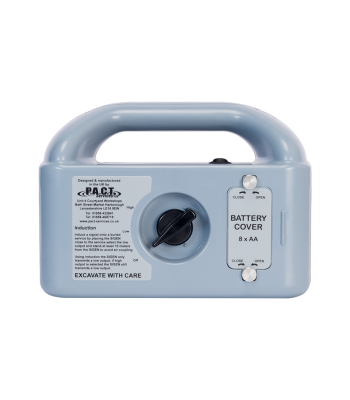

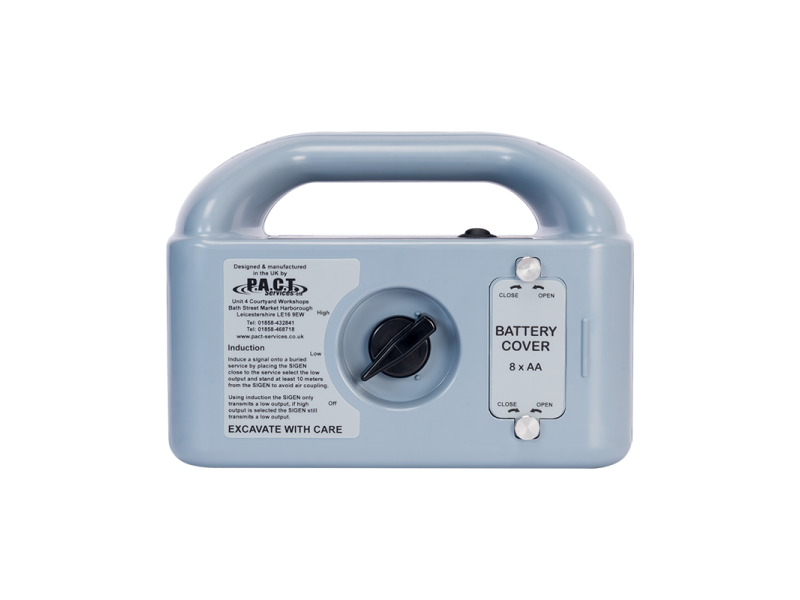

The SIGEN 2+ signal transmitter incorporates high & low Volume output as well as low & high power outputs. The high volume helps get a better connection tone the low volume allows the use in quite locations. This along with the ability to switch from low to high power output at the click of a switch lets the Operator locate the familiar distinct continuous tone.

The TOMKAT along with the SIGEN 2+ offer many features designed to assist in the avoidance of buried services. This along with the manufactures calibration ensures your equipment is in good working order. This will significantly help in reducing your strike rate. Whether you are new to the TOMKAT family or an established user there is no doubt that our location equipment is exactly what your business needs.

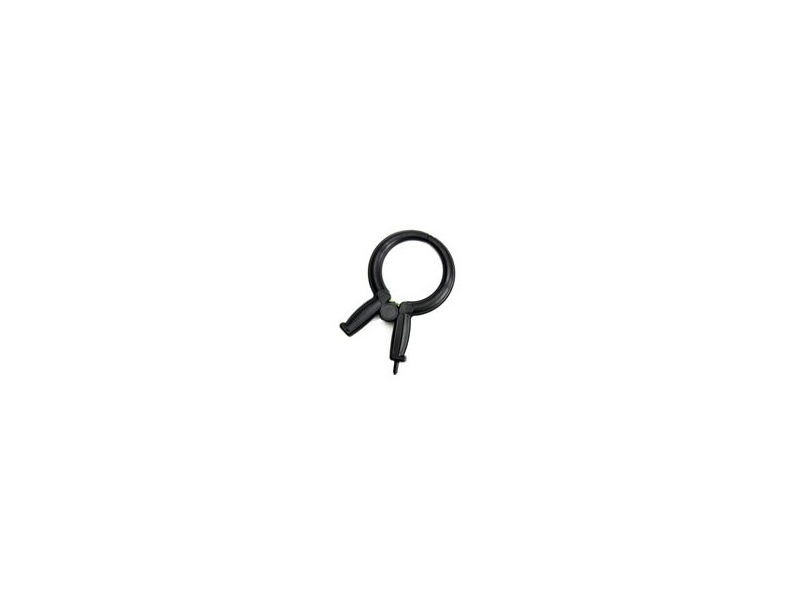

The Signal Clamp has an internal 100mm diameter this allows the operator to apply a signal directly and safely to an insulted conductor ensuring a good contact without removing the insulation.

Using a Signal Clamp aids the operator in the detection of buried cables by applying a distinct signal to a designated cable, this could be a street light or any insulated cable, the Signal Clamp lets the operator apply a distinct signal to a cable which needs to be traced.

To operate the Signal Clamp plug the bulgin plug in to the connection socket inside the SIGEN+ accessory compartment, place the jaws of the Clamp around the service to be traced ensuring the clamp is fully closed. Turn the SIGEN+ on now trace with a TOMKAT in the Genny mode.

The 33kHz Sonde is a small battery powered, self-contained,
waterproof transmitter which can be attached to drain rods or
any movable device that can be propelled inside nonmetallic pipes.

ADDITIONAL INFORMATION



Off Transmitter is turned off in this position
Induction Mode 33 kHz continuous
Connection Mode 33 kHz continuous

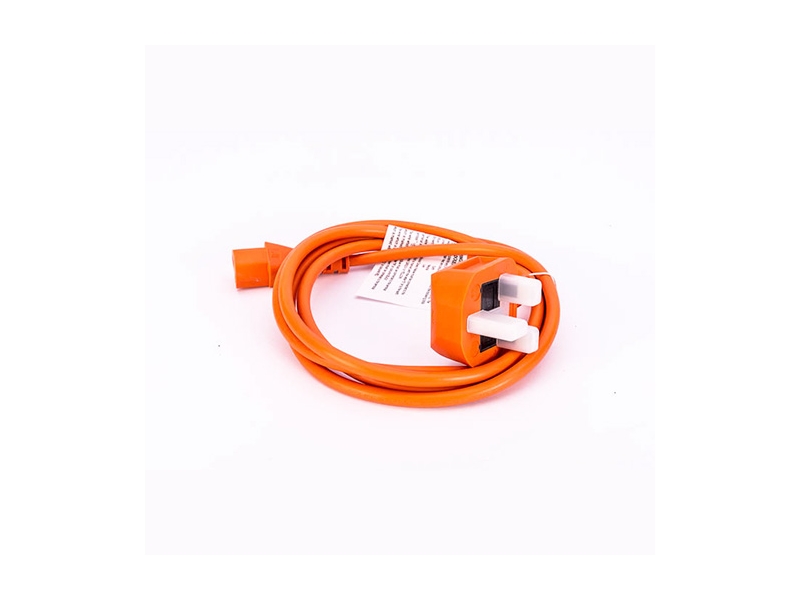

Protection Isolation transformer allows direct connection via a 3 pin plug connector to mains supply (mains rating is 230 VAC maximum)
Power Output low output 0.25 watt high output 1.0 watt
Audio Induction Mode Audible continuous
Audio Connection Mode Audible continuous tone with distinct tone change confirms a good connection is made
Audio On/off No tone indicates battery replacement required
Batteries 8 x AA alkaline supplied fitted typical battery life 40 hours continuos use
Operating Temperature -20C to + 50C
Compatibility Will work with all locators receiving a 33kHz signal
Accessories Supplied with earth stake & connection leads
Construction Moulded from high impact ABS weatherproof to IP54 CE tested
Dimensions 285mm x 185mm x 195mm
Shipping Box Size 305mm x 205mm x 215mm
Weight 2.5kg

Brand: PACT Services

Identifier: 2Plus_Electricians_Kit
