Simpsons Strong-Tie Solid Joist Notch Reinforcement Kit - SNRK75

It's common practice to cut a hole in the tops of the floor joists so that pipes and electrical cables can pass through the void between an upper floor and ceiling below it - particularly in bathrooms. However, doing so weakens the joist - which is why we have developed a bracket to put strength and stiffness back into the floor assembly.

Advantages

• Reinforces solid timber joists with notches to allow services to pass through
• Can be retro-fitted to existing floors or installed to new ones in the same short time frame
• Avoids the risk of screws from above accidentally penetrating pipes or cables
• A convenient solution for up to 5 notched floor joists

How it Works

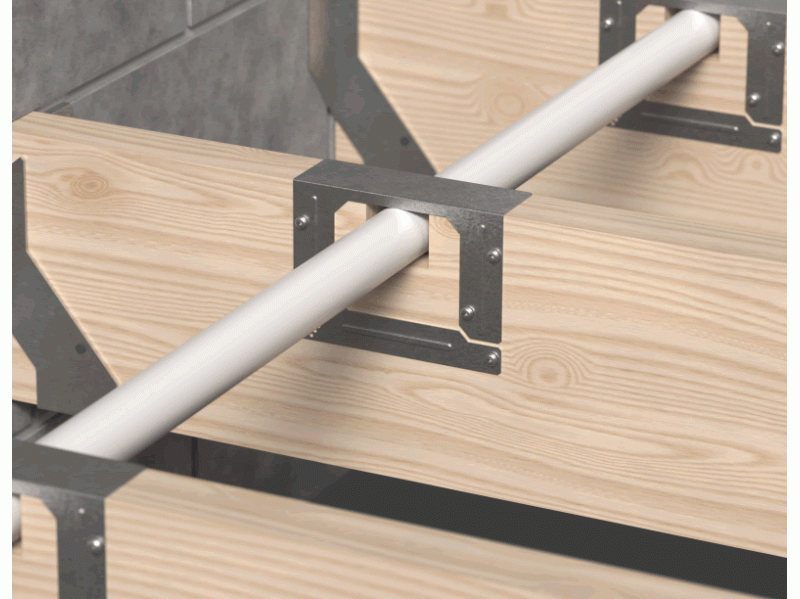

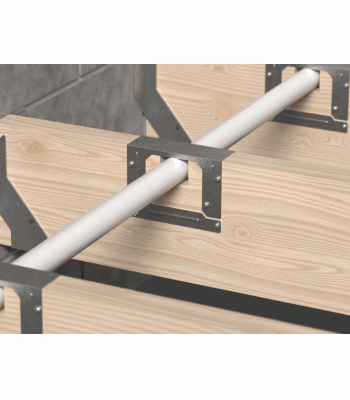

The bracket features a flexible leg that can be bent enough to allow the bracket to be positioned around the notch - even if the pipes/cables have already been installed - which can then be bent back into place and the bracket fastened to the floor joist.

Included in the kit

Each kit is sufficient for 5 complete floor joist installations.

• 5 x SNRB75 brackets
• 28 x CSA4.0X30 screws
