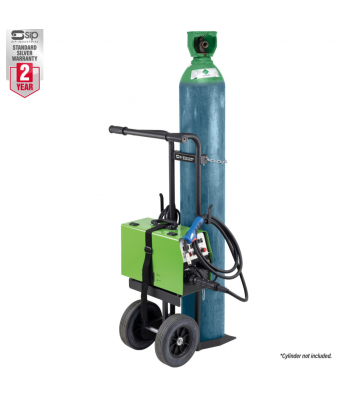

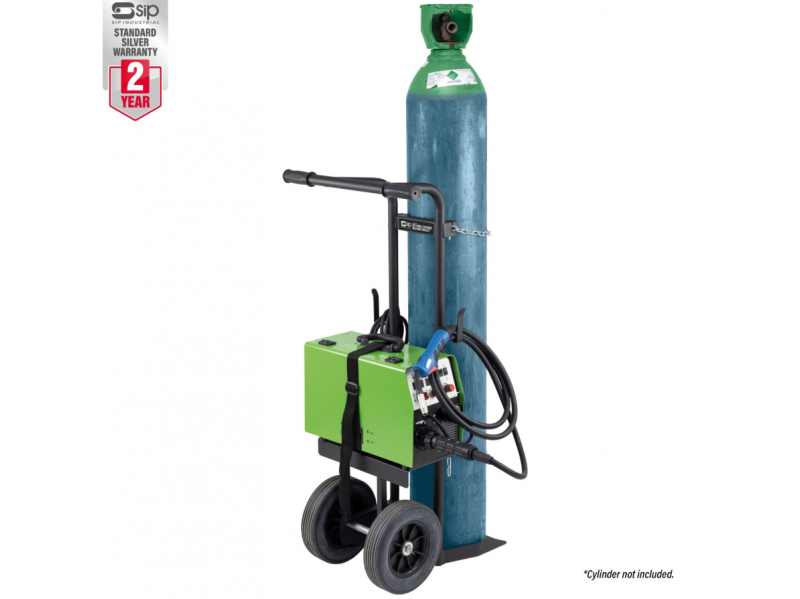

SIP AUTOPLUS ECO 200 MIG/ARC Inverter & Trolley - Code 05723TROLLEY

The SIP AUTOPLUS ECO 200 MIG/ARC Inverter Welder is a dual process inverter welder designed for use in automotive environments and sheet metal applications. This package deal is complete with a 05719 SIP Large Cylinder Welding Trolley.

Compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), the powerful inverter technology can perform gas and gasless MIG and ARC welding tasks for outstanding versatility.

With superior ARC stability for greater welding control and reduced spatter, this AUTOPLUS delivers great performance for an assured weld in demanding applications.

Applications & uses: Perfect for automotive environments. Ideal for sheet metal applications. Suitable for gas and gasless MIG and ARC welding.

Dual welding functions
Gas and Gasless MIG and ARC welding functions for outstanding versatility.
Superior ARC stability for greater welding control and reduced spatter.

Infinitely variable output adjustment
Infinitely variable output dials ensure precise control of the welding functions.
Extra low current function is ideal for welding thinner materials.

Dual LED display panel
indicates both the volts and amps in use when the welder is in operation.

Compatible with Welding Cart & Trolley
For added flexibility and workshop mobility, it is compatible with the 05714 SIP 3-Tier Welding Cart which is suitable for gas cylinders up to 50kg. Also compatible with the 05719 SIP Large Cylinder Welding Trolley suitable for gas cylinders up to 99kg.

Compact and portable design
The compact unit is easy to move between locations using the fitted carry handle.

Accessories included
Supplied with 3mtr Euro fitting MIG welding torch, earth lead and clamp, and gas hose.

Key Features

Complete with 05719 SIP Large Cylinder Welding Trolley
Dual Gas/Gasless MIG and ARC welding functions
Infinitely variable output adjustment for control
Dual LED display panel shows both volts and amps
Compact and portable design with carry handle
Supplied with torch and accessories

Technical Information

ITEM NO.	05723TROLLEY
Input Supply:	230v (16A)
	MIG	ARC
Output Current:	30A - 200A	30A - 170A
Output Voltage:	15.5v - 23v	21.2v - 26v
Duty Cycle:	200A @ 15%	170A @ 15%
Electrode Diameter:	⌀ 1.6mm, 2mm, 2.4mm, 3.2mm, 4mm
Wire Diameter:	⌀ 0.6mm - 1mm
Wire Spool Size:	0.7kg - 5kg
Protection Level:	IP21S
Insulation Class:	Class F
Net Weight:	WELDER: 11.00kg / TROLLEY: 16.00kg
Gross Weight:	WELDER: 13.49kg / TROLLEY: 18.00kg
Product Dimensions:	WELDER: 440(H) x 195(W) x 280mm(D)TROLLEY: 1140(H) x 490(W) x 550mm(D)
Packaged Dimensions:	WELDER: 565(H) x 270(W) x 405mm(D)TROLLEY: 1190(H) x 540(W) x 600mm(D)

Brand: SIP Industrial

Identifier: 05723TROLLEY
