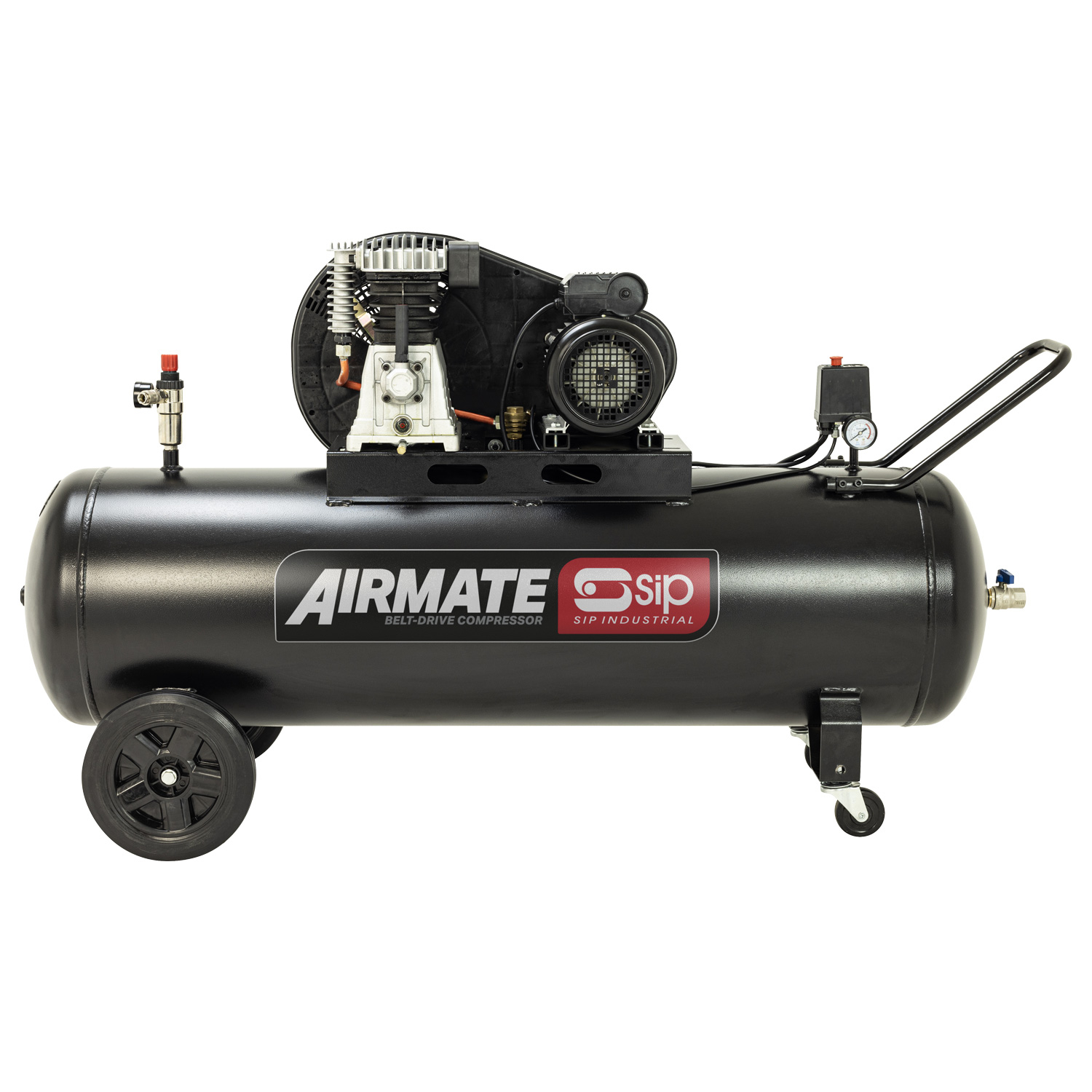

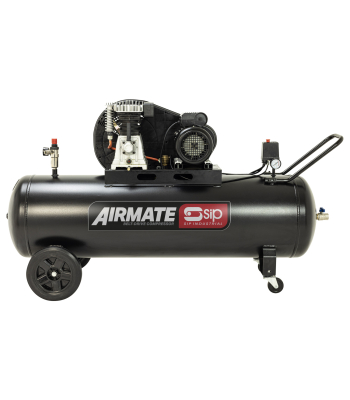

SIP BD 3hp 200ltr Belt Drive Compressor - Code 06477

The SIP BD 3hp 200ltr Belt Drive Compressor is a powerful and versatile air compressor, ideal for general work area applications in automotive, agricultural and engineering settings.

Built for everyday use, this high performance compressor features a larger pump which fills the receiver more quickly. This delivers 14CFM piston displacement resulting in 10CFM Free Air Delivery (FAD) for a consistent air supply ideal for pneumatic air tools and air compressor ring main applications.

A wheel-mounted design with U-handle allows full movement in a variety of work area settings for added flexibility.

Applications & uses: Ideal for automotive, agricultural and engineering settings. Perfect for medium and large-sized work areas. Ideal for pneumatic air tools. Suitable for air compressor ring main applications.

SIP 2-Year Standard Silver Warranty |

Powerful belt drive transmission for consistent output in demanding applications Heavy-duty motor enables the compressor to fully meet its performance capability (3hp / 2.2kW).

A bespoke belt guard improves airflow to the pump head for greater cooling, which increases machine durability.

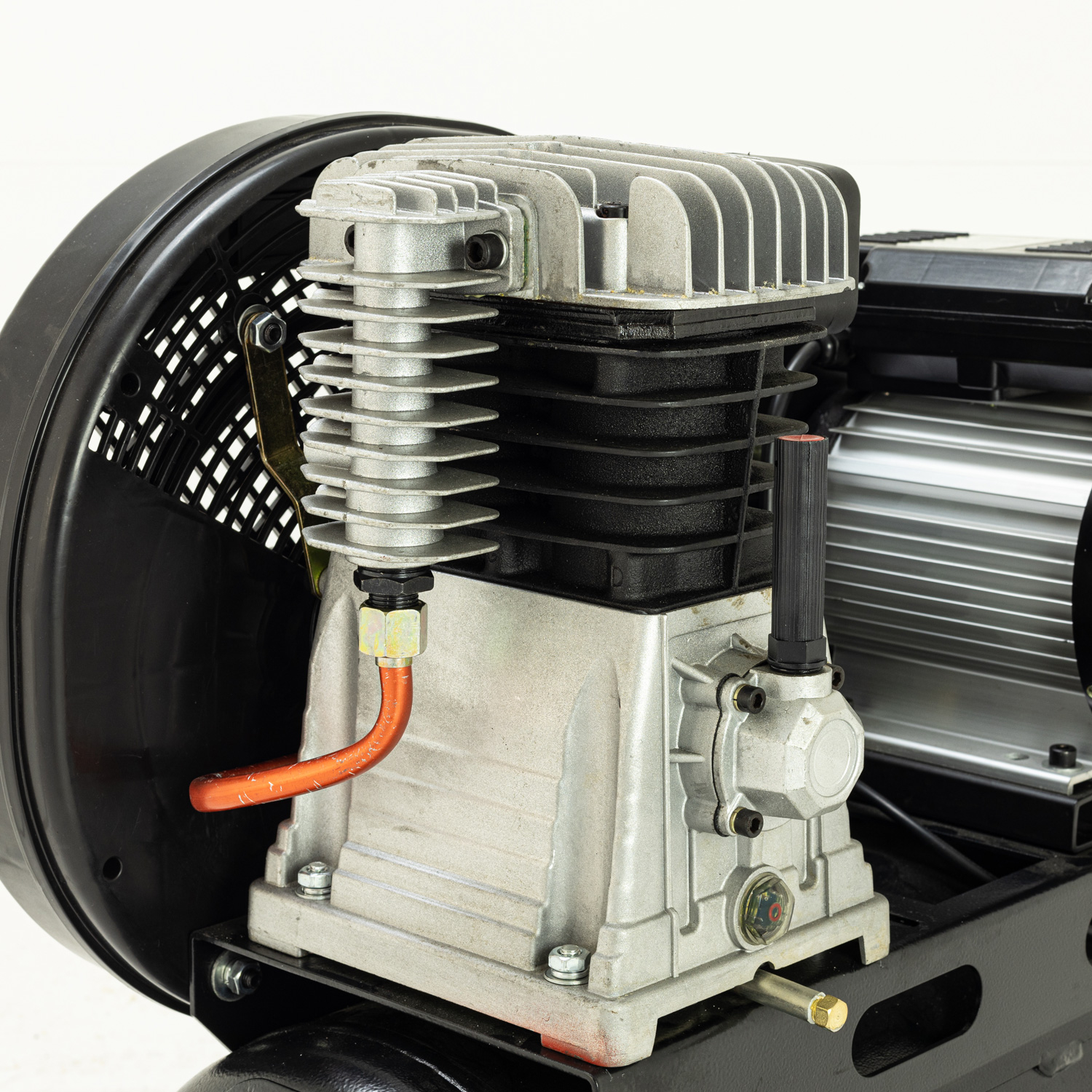

Larger slow-running pump fills receiver more quickly for improved air delivery Greater airflow allows the receiver to fill faster for consistent and dependable use.

14CFM piston displacement and 10CFM Free Air Delivery (FAD).

Slow-running pump helps to reduce machine wear for longer running life.

An aftercooler reduces moisture for added protection against corrosion and greater air quality.

200ltr receiver tank safely stores compressed air ready for application use Maintains a consistent supply of air for pneumatic tools and air equipment, up to 10bar air pressure.

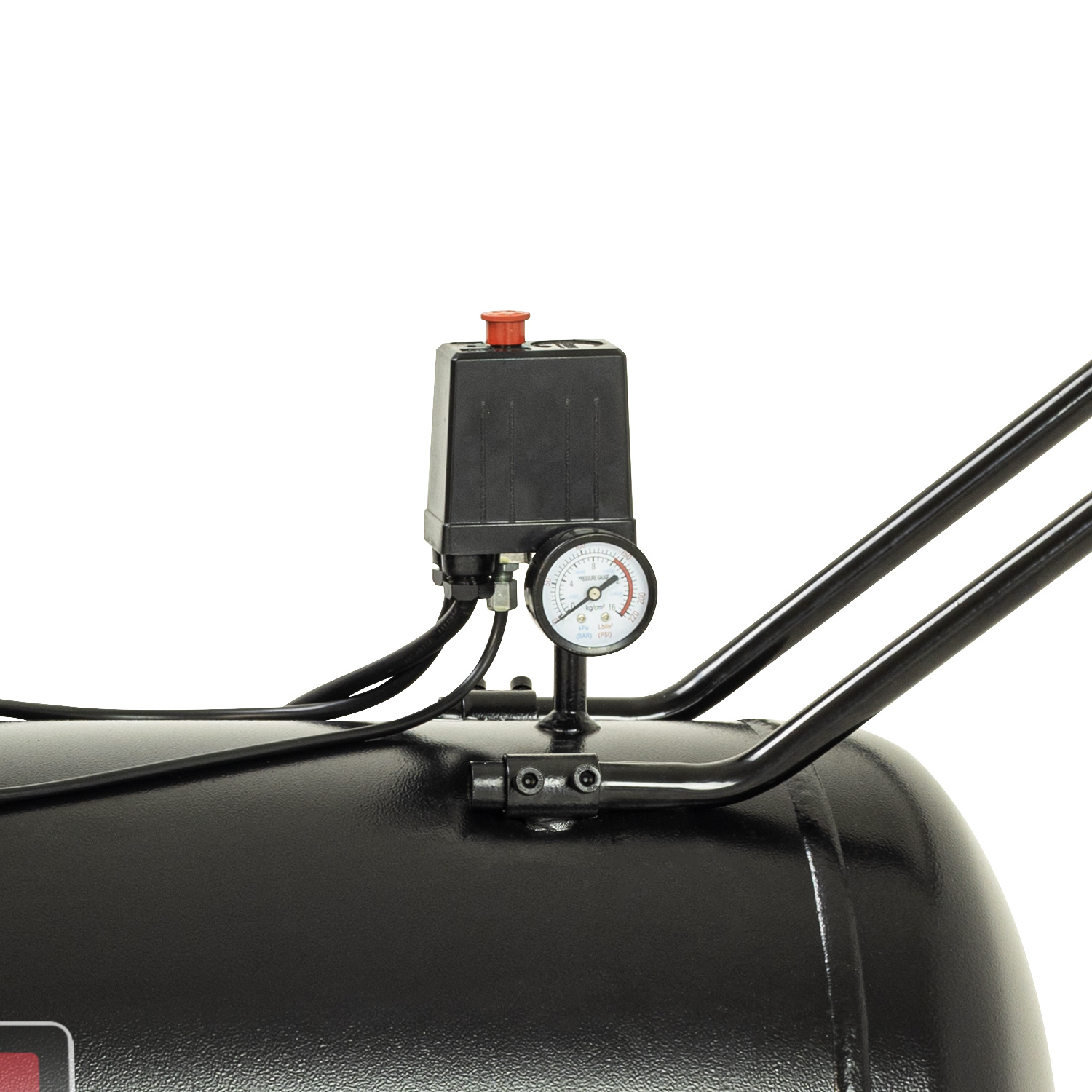

Built-in tank pressure and working pressure gauges optimise air delivery Provides an accurate display of current pressures for enhanced user operation.

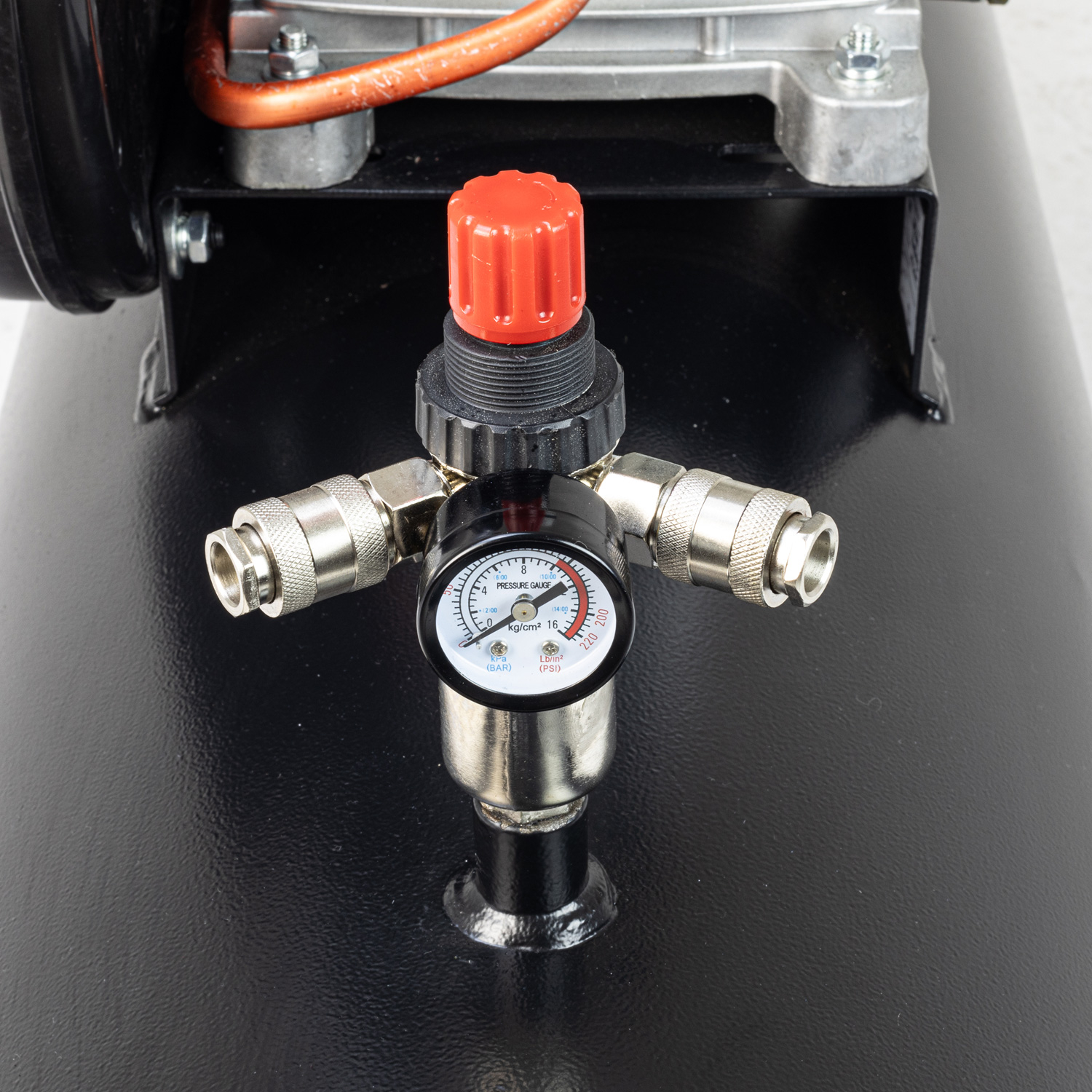

Adjustable air connectors and ball valve offer greater application versatility 2x adjustable connectors (0-10bar) with air filter regulator optimise air requirements.

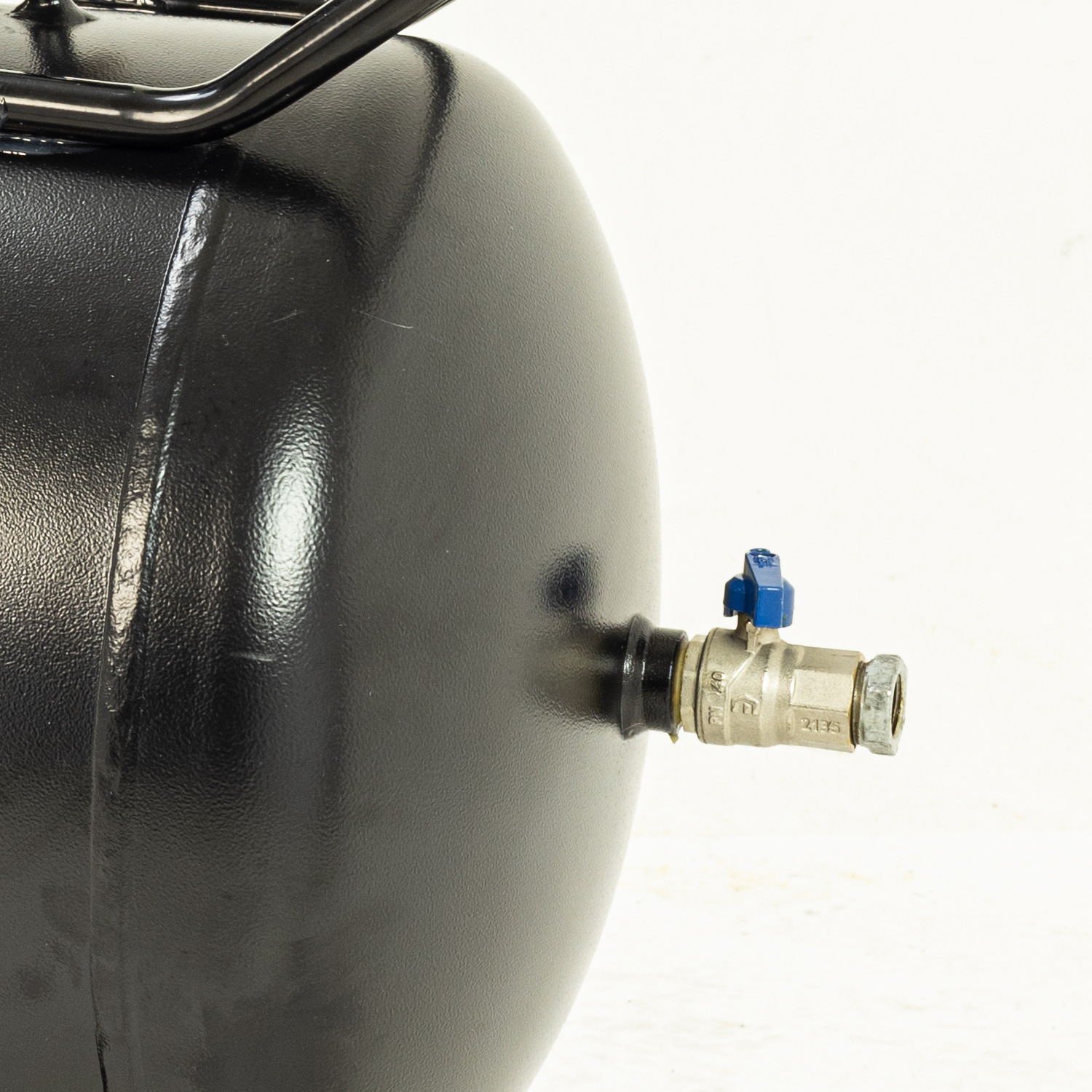

1x air receiver ball valve allows maximum airflow direct from the receiver.

Features 3mtr mains cable and operates from 13A supply for greater flexibility Helps to avoid use of extension cables, which maximises compressor output.

Extra-large wheels and castors with U-handle for mobility around work area Allows full movement in a variety of work area settings for added flexibility.
