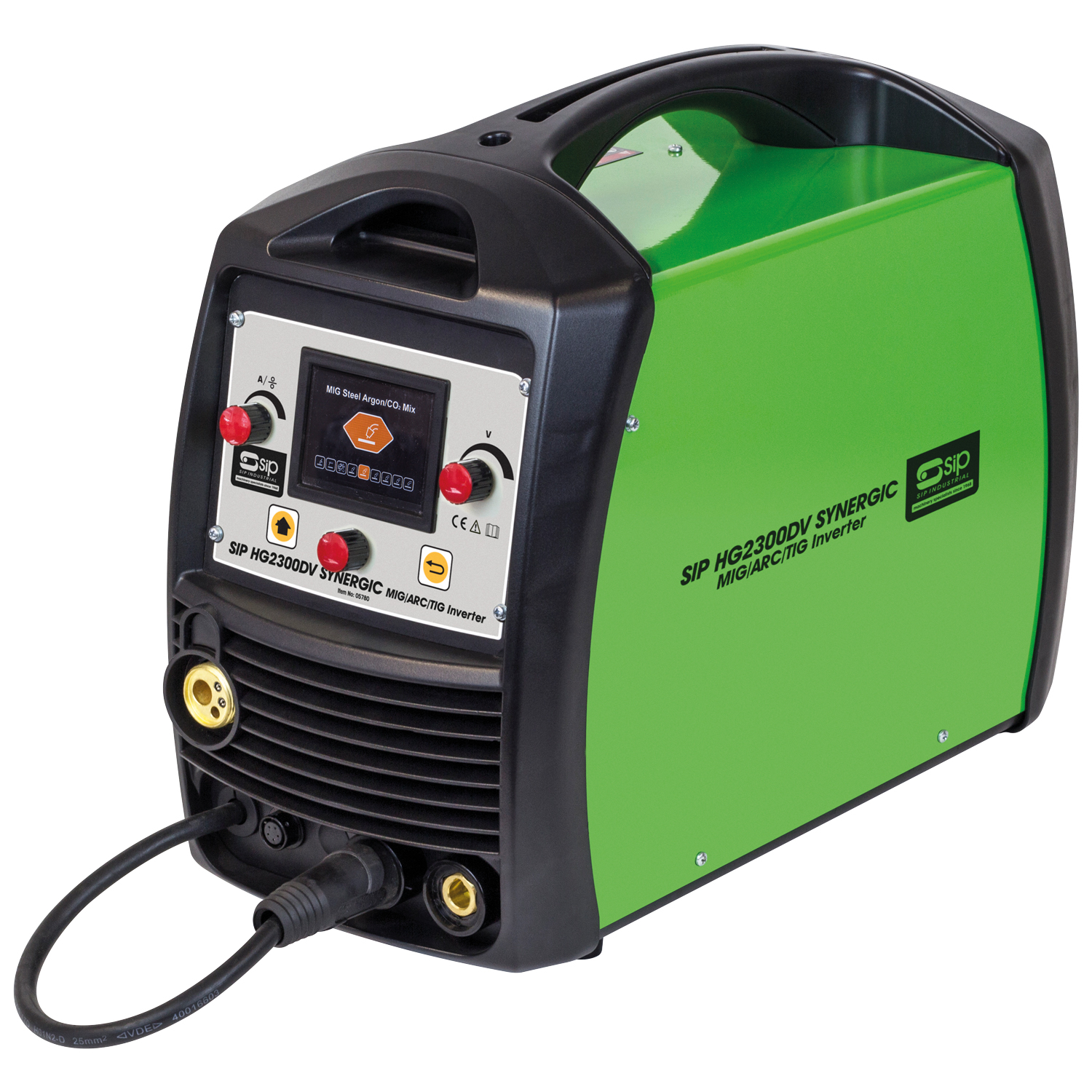

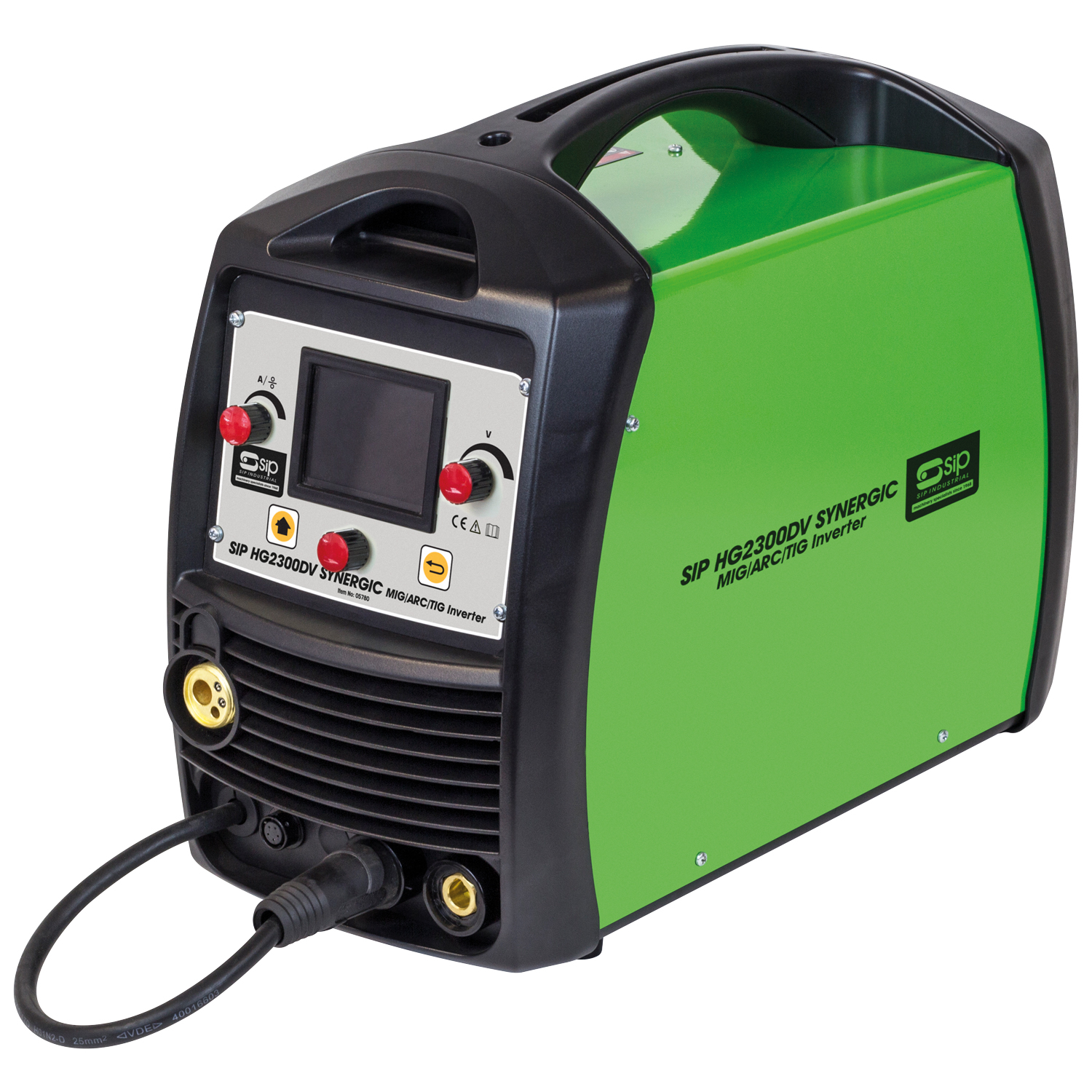

SIP HG2300DV SYNERGIC MIG/ARC/TIG Inverter Welder - Code 05780

The SIP HG2300DV SYNERGIC MIG/ARC/TIG Inverter Welder is a highly versatile, lightweight, and compact machine designed with powerful IGBT inverter and synergic technologies offering powerful output with mild steel, stainless steel and aluminium.

Synergic curves makes welding with the HG2300DV even easier! Simply select your process, gas type, wire size, and plate material thickness and the HG2300DV will automatically set parameters, with integrated memory-saving and loading functions keeping frequently used or favourite set-ups available at your fingertips.

Comes with 3mtr MB25 torch, earth lead, gas hose and 3x contact tips.

Browse for more high-quality welding machines and accessories.

230v / 110v dual voltage operation with auto-sensing circuitry Versatile 4-in-1 machine; Gas and Gasless MIG, ARC and TIG Synergic curves for welding mild steel, stainless steel and aluminium Select process, gas, wire size, and plate material thickness to automatically set parameters, with memory-saving and loading for existing settings Uses solid, flux-cored, stainless steel or aluminium wire types High-quality LCD screen for accurate and clear measurement Generator-friendly; suitable for a range of applications Adjustable pre-flow/post-flow gas times and creep start Lightweight and compact design for easy portability 2 touch / 4 touch / spot welding trigger functions Microprocessor-controlled for added performance Heavy-duty all-metal 2-roll wire feed mechanism Built with a Euro torch connection

Technical Information

ITEM NO.	05780
Input Supply:	230v (16A) / 110v (13A)
Output Current:	40A - 200A / 40A - 90A (MIG) 10A - 180A / 10A - 70A (ARC) 10A - 180A / 10A - 90A (TIG)
Output Voltage:	16v - 24v / 16v - 18.5v (MIG) 20.4v - 27.2v / 20.4v - 22.8v (ARC) 10.4v - 17.2v / 10.4v - 13.6v (TIG)
Duty Cycle:	200A @ 40% / 90A @ 40%
Electrode Diameter:	Ø 1.6mm - 6mm
Wire Diameter:	Ø 0.6mm - 1mm
Wire Spool Size:	0.7kg - 5kg
Protection Level:	IP21S
Insulation Class:	Class A
Net Weight:	19.00kg
Gross Weight:	21.00kg
Product Dimensions:	300(H) x 170(W) x 530mm(D)
Packaged Dimensions:	460(H) x 700(W) x 335mm(D)

Brand: SIP Industrial

Identifier: 05780
