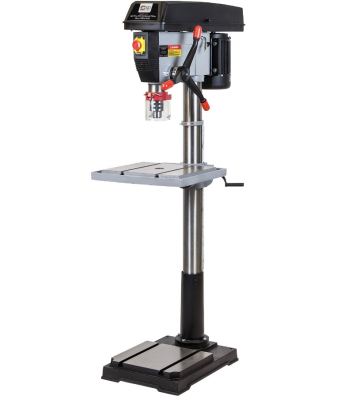

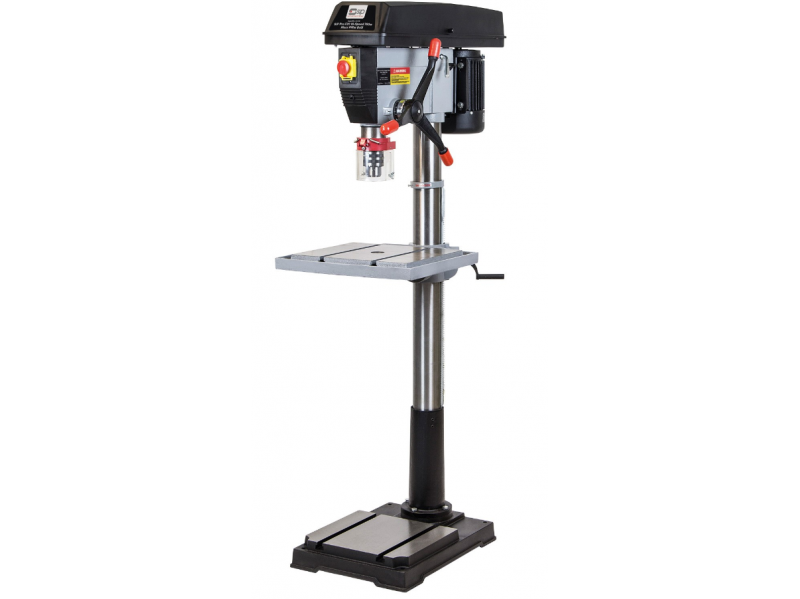

SIP Pro F20 16-Speed 750w Floor Pillar Drill - Code 01715

The SIP Pro F20 16-Speed 750w Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, the drill can be easily positioned to enable accurate drilling.

Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a floor-mounted design, it is perfect for a range of professional applications in workshop settings.

Applications & uses: Suitable for ferrous and non-ferrous metals, woods and plastics, pilot, blind, batch and general drilling applications, manufacturing gates, rails and trailers, plus metalwork and woodwork environments.

Supports a variety of drilling applications
Compatible with materials including ferrous and non-ferrous metals, hard and soft woods and high-density plastics.

Multi-speed functionality
Allows precise control of hole sizes across the drilling spectrum.

High-power brushless induction motor
Delivers powerful performance for consistent high-quality drilling.

Intuitive features for ease-of-use
Adjustable drilling table and three-lever handle ensures smooth drilling force.

Fitted with drilling depth stop
Accurately maintains a quality of repetitive or blind hole drilling, helping to minimise material wastage.

Safety interlock switch
Allows the user to adjust the motor belt with confidence knowing the drill cannot start-up accidentally.

KEY FEATURES

  • 16 spindle speeds powered by a 750w motor from a 230v (13A) supply
  • Supports a variety of drilling applications
  • High-power brushless induction motor
  • Fitted with drilling depth stop
  • Adjustable drill table for greater accuracy
  • Safety interlock switch for safe motor belt adjustment

TECHNICAL SPECIFICATION

ITEM NO. 01715
Input Voltage: 230v (13A)
Motor Power: 750w
No. of Speeds: 16 speeds
Speed Range: 150rpm - 3000rpm
Drill Bit Size: 5mm - 20mm
Spindle Taper: MT2
Table Size: 285mm x 285mm
Base Size: 460mm x 270mm
Column Diameter: Ø 72mm
Swing: 360mm
Height: 1575mm
Spindle Travel: 80mm
Collar Diameter: Ø 72mm
Max. Distance: 588mm (chuck to table)1075mm (chuck to base)
Net Weight: 52.30kg
Gross Weight: 56.00kg
Product Dimensions: 1580(H) x 290(W) x 460mm(D)
Packaged Dimensions: 275(H) x 1140(W) x 490mm(D)

Brand: SIP Industrial

Identifier: 01715
